Description
Yeastar DS7210 Room Display Dubai

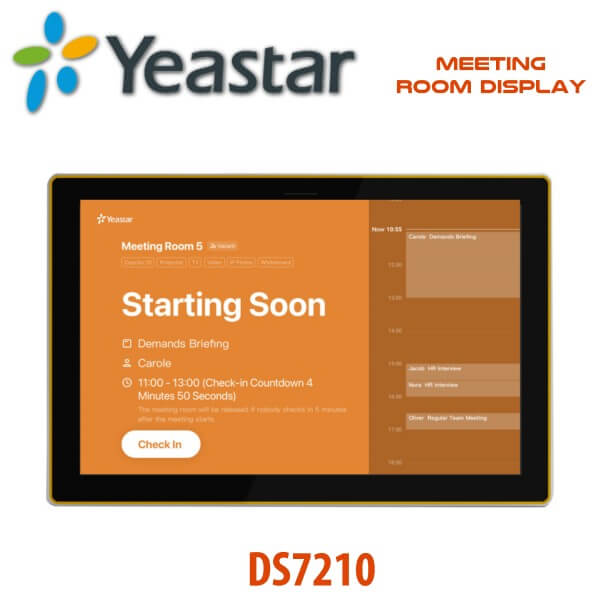

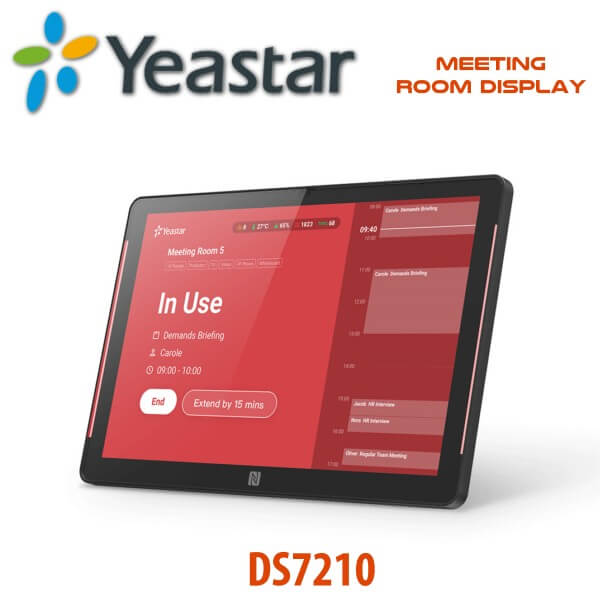

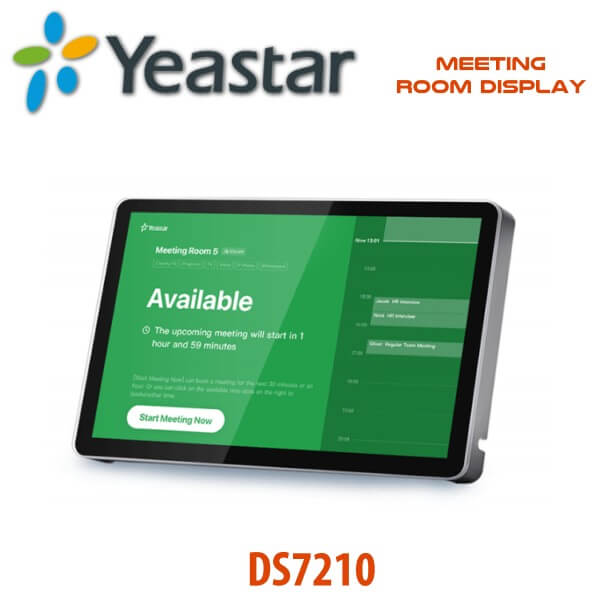

The DS7210 Dubai Room Display is a digital signage collaborating with Yeastar Workplace to display meeting room availability in real-time and book meetings on the spot. Mounted at the entrance of a meeting room, it shows room status through a side LED indicator. Feel free to customize the color signals to fit your office ambiance from 16 color options in the system. A 10.1″ LCD touch screen supports reserving on the spot and meeting check-ins & check-outs. Custom branding is also available to set up your company logo and background image that appear on the screen.
The Yeastar DS7210 Dubai is an easy-to-use digital display that comes with a clear 1280*800, 10.1-inch LCD panel which offers is users a quick access to details as well as an enhanced visual clarity. The DS7210 can be powered via a PoE injector or PoE switch. It is an Android-based device that boasts of a generously-large storage capacity of 2GB RAM and 16GB internal memory that can hold a variety of your favorite multi-media content.
Yeastar DS7210 Dubai comes with built-in support for Wi-Fi 802.11 b/g/n connectivity that allows its users to easily connect to available internet networks. It also has a built-in USB 2.0 port that allows for easy connection to compatible devices for easy content sharing. The DS7210 is a wall-mountable(VESA-compatible) device that can easily be installed anywhere, resulting in a neat and tidy work space.
Features:
- Collaborates with Yeastar Workplace: display meeting schedules, start an ad-hoc meeting, check-in & check-out, extend meetings
- Traffic light LED indicator on the side color signals meeting room status
- Works with People Counting Sensor to update in-room attendees in real-time
- Managed and monitored remotely by the cloud-based Yeastar Workplace platform
- Support Energy Saving Settings
- Hide/show meeting topic/organizer flexibly
- Plug-and-play PoE or DC power
- Provides easy installation and flexible mounting options
Technical Specs
Feature | Specification | |||
---|---|---|---|---|
Display | Touch Screen | 10.1-inch LCD IPS touch screen | ||
Resolution | 1280 x 800 pixels | |||
Active Area | 216.96(L) x 135.6 mm(H) | |||
Aspect Ratio | 16:10 | |||
LED | 3-color Side LED Indicators | |||
Connectivity | Wi-Fi | IEEE 802.11 b/g/n, 2.4GHz or 5GHz, WPA2-PSK and WPA2-EAP support | ||
Wired connectivity | One 100M/1000M Ethernet port | |||
Bluetooth | Bluetooth 4.0 | |||
System | Android 8.1 | |||
Power | Power over Ethernet (PoE) DC : 12V/1.5A |
|||
Dimension & Weight | Dimension | 249.36(L) x 168.36(H) x 24(D) mm | ||
Weight | 1.68 kg | |||
Mount |
|
|||
Environmental Conditions | Operating Temperature | 0°C to +40°C | ||
In door use only |
