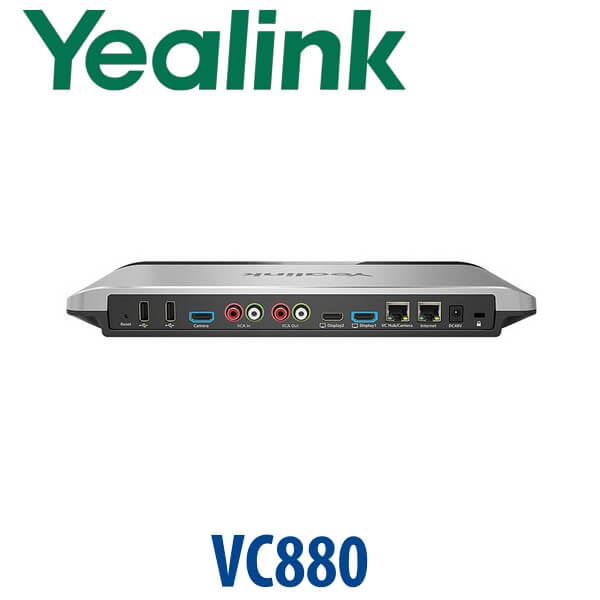

Yealink VC880 HD Video Conferencing System Dubai

Yealink VC880 is a full HD video conferencing system, is designed to maximize your collaboration experience with cutting-edge technologies. Equipped with the strongest embedded MCU within the industry, Yealink VC880 supports 24-site HD video conferencing; Moreover, the industry-leading multi-camera solution grants you to connect up to nine Yealink VCC22 video conferencing cameras via an Ethernet cable and a PoE switch, getting multi-way and multi-view video conferencing as easily as you can. Owning the rich physical interfaces for audio and video connection, Yealink VC880 can be connected to the 3rd-party camera or access to the video matrix. In addition, it comes with the professional RCA-in/out interface that integrates the mixer with the gooseneck microphone. Yealink VC880 is with a spilled-type structure to meet the deploy requirement of the control room which separates from a large conference room. To minimize cable clutter and lower the cost, we combine three cables (power cord, video cable, and control line) into one cable, giving you a clean and tidy work environment.

Yealink VC880 Features :

• Spilt Type for Integration in Conference Room

  • Spilt type, multi-camera solution (up to nine Yealink VCC22 cameras can be connected), only one Ethernet cable – are definitely optimized for the control room which separates from the conference room, helping you make deployment as easy as possible without costly room remediation. For a multi-camera solution, only one PoE switch and an Ethernet cable are enough, skipping the complex video matrix and saving your time and cost. Support RCA-in/out and 3rd-party camera connections to make deployment simple and efficient.

• 3rd-party camera connection, Strong Compatibility

  • An exclusive HDMI interface permits the video input from the 3rd-party camera or video matrix, and you can put the video image both different cameras together like a puzzle, as well as change the video layout. Besides, coming with the profession RCA-in/out interface, Yealink VC880 perfectly integrates the mixer with the gooseneck microphone.

• Better Network Adaptability

  • Thanks to Yealink anti-packet loss technology, Yealink VC880 can resist up to 30% video and 80% audio packet loss which guarantees smooth video and audio communication.

• Compatibility and Integration

  • Yealink VC880 supports standard H.323/SIP dual-protocol. It is not only deeply integrated with Yealink Meeting Server(YMS), supporting Meeting Scheduling and One-touch Meeting Access; but also worked with Yealink Cloud Management Service, bringing quick deployment. Besides, it supports the 3rd-party room system and integrates with the leading cloud platforms

Yealink VC880 Specification.

• Audio Features

• Audio codecs:
  • Opus, 8~48kHz sampling rate
  • 14kHz bandwidth with G.722.1C
  • 7kHz bandwidth with G.722.1
  • 3.4kHz bandwidth with G.711 (PCMA/PCMU)
• Audio technology:
  • Acoustic echo cancellation
  • Automatic gain control
  • Yealink Noise Proof Technology
  • CNG, PLC, AJB, De-Rerb
• Network and Security Features
  • IPv4 and IPv6, DHCP/static IP
  • HTTPS webserver
  • RS232/HTTP API for control system integration
  • SRTP/TLS, AES 128-bit encryption
  • QoS: 802.1p/q, Diff-serv
  • VLAN, IEEE802.1X, LLDP-MED
  • Anti-attack
  • Network diagnosis: Ping, traceroute
  • Time and date synchronization using SNTP
  • Built-in certificate
• VC880 Codec Connections
  • 2 x HDMI output (supporting CEC function)
  • 1 x HDMI for 3rd-party camera
  • 1 x RCA-in
  • 1 x RCA-out
  • 1 x Yealink VCH port (RJ-45) for Yealink VCC22 camera connection
  • 1 x 10/100/1000M Ethernet port
  • 3 x USB 2.0
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot

What’s in the Box.

• VC880 codec
• VCR11 remote control
• VCH50 video conferencing hub
• 5x cable ties
