Ubiquiti USW-24-POE Switch Dubai

Reviews

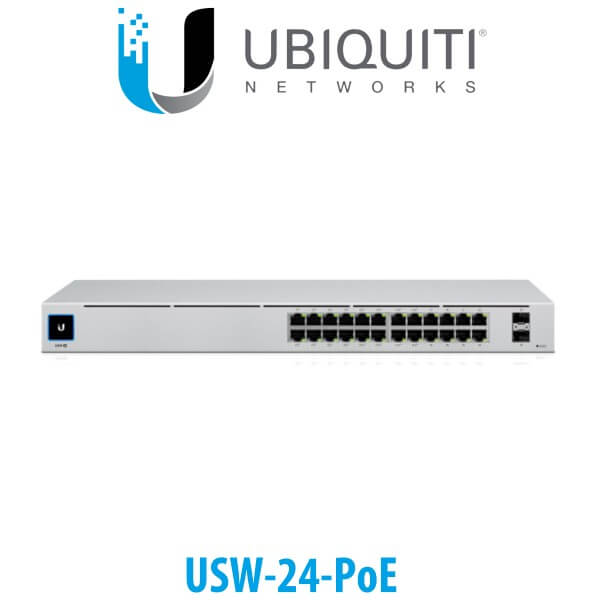

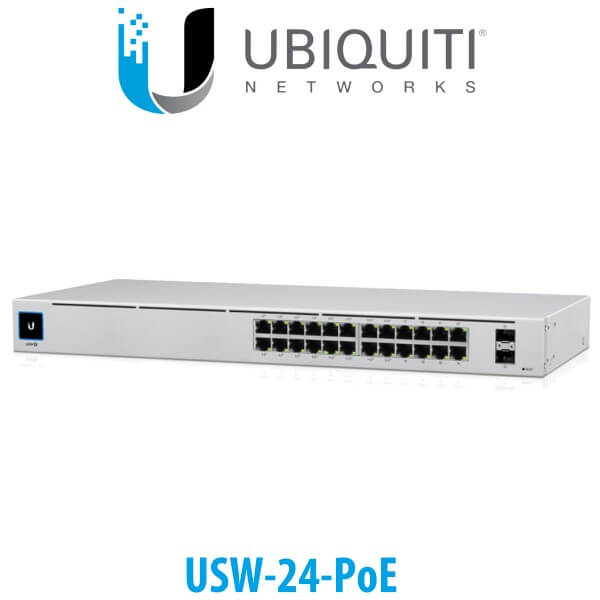

Ubiquiti UniFi USW-24-PoE Switch Dubai

The Ubiquiti USW-24-PoE Switch Dubai  is equipped with a 1.3″ touch LCM which provides a clear display of device status information. Its features a compact fanless design with a depth of 7.9″, therefore offering the easiest possible installation process in a SOHO rack cabinet.

Ask for Quote & Get Low Price

Description

UniFi USW-24-POE Switch Dubai

The USW-24-PoE from Ubiquiti Networks is an easy-to-configure Gigabit Layer 2 switch in Dubai that comes with 24 Gigabit Ethernet ports which include 16 auto-sensing 802.3at PoE+ Ports as well as 2 SFP ports. It not only enables you to connect to your RJ45 Ethernet devices using Gigabit PoE links, but also allows you to connect to your enterprise network using Gigabit fiber uplink options.

The Ubiquiti USW-24-PoE Switch Dubai can be managed and configured by the UniFi Network application using UniFi mobile app support so as to a variety of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. What’s more, admins can virtually configure and monitor all of the switch features in a graphical user interface from anywhere, thanks to the built-in UniFi Network application and mobile app.

USW-24-PoE Switch key features

  • Near silent cooling
    • Ubiquiti’s new airflow design reduces the need for fan usage.
  • Powerful hardware and software
    • The Ubiquiti USW-24-PoE Switch Dubai  offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities. (*Layer 3 switching will be available in a future software release)
  • UniFi SmartPower RPS, USP-RPS, is Ubiquiti’s PSU failover system.
    • In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device. One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
  • Touch screen display
    • The 1.3″ touchscreen display on the Ubiquiti USW-24-PoE Switch Dubai allows easy monitoring and quick troubleshooting

USW-24-PoE Switch Technical Specifications

Product Specifications

  • Dimensions: 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72″)
  • Weight: 3.00 kg (6.61 lb)
  • Weight with Brackets: 3.09 kg (6.81 lb)
  • Interfaces:
    – Networking: (24) 10/100/1000 RJ45 Ports, (2) 1G SFP Ethernet Ports
    – Management: Ethernet In-Band
  • Total Non-Blocking Throughput: 26 Gbps
  • Switching Capacity: 52 Gbps
  • Forwarding Rate: 38.69 Mpps
  • Power Method: 100-240VAC, 50/60 Hz, Universal Input
  • Power Supply: AC/DC, Internal, 120W
  • Voltage Range: 100 to 240VAC
  • Max Power Consumption (Excluding PoE Output): 25W
  • LEDs:
    – System: Status
    – RJ45 Data Ports: PoE; Speed/Link/Activity
    – SFP Data Ports: Link/Activity
  • ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
  • Shock and Vibration: ETSI300-019-1.4 Standard
  • Operating Temperature: -5 to 40° C (23 to 104° F)
  • Operating Humidity: 10 – 90% Noncondensing
  • Certifications: CE, FCC, IC

PoE

  • Total Available PoE: 95W
  • PoE Interfaces Ports 1-16: POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)
  • Max. PoE Wattage per Port by PSE:
    – 802.3at: 32W
  • Voltage Range 802.3af Mode: 44-57V
  • Voltage Range 802.3at Mode: 50-57V
