Description

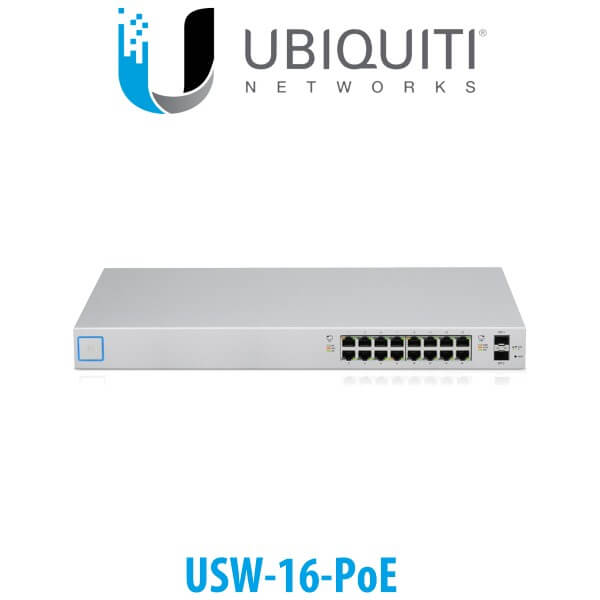

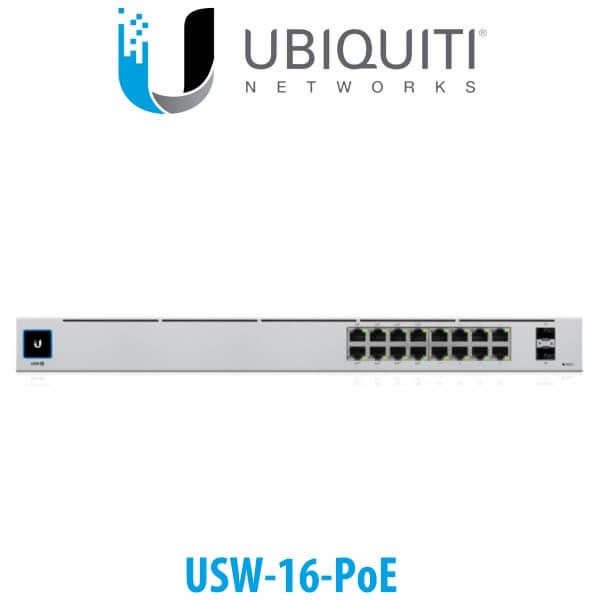

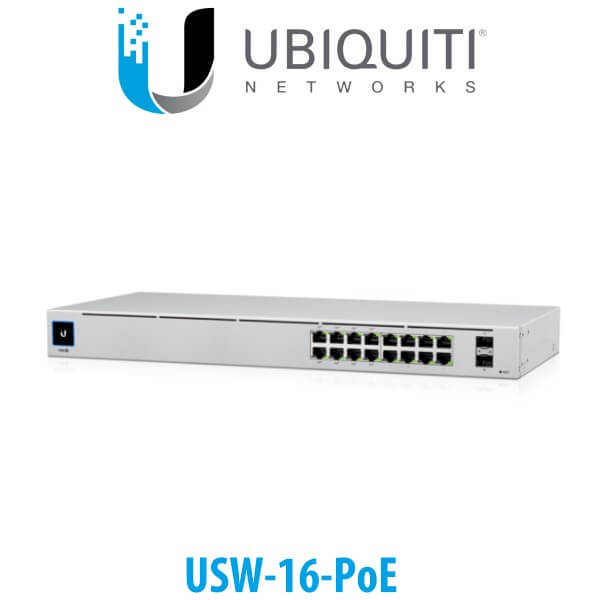

Unifi USW-16-PoE Dubai

The Ubiquiti Unifi USW-16-PoE Dubai is a configurable Gigabit Layer 2 switch that comes with 16 Gigabit Ethernet ports. It includes 8 auto-sensing 802.3at PoE+ ports and 2 SFP ports. The Ubiquiti Unifi USW-16-PoE Dubai provides Gigabit PoE links to your RJ45 Ethernet devices as well as Gigabit fiber uplink options to your enterprise network.

The Ubiquiti USW-16-PoE Dubai can easily managed and configured by the Unifi Network application using the UniFi mobile app support. It offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port.  What’s more, admins can easily configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

USW-16-PoE Dubai Features

• Near silent cooling
  • Ubiquiti’s new airflow design reduces the need for fan usage.
• Powerful hardware and software
  • Ubiquiti Unifi USW-16-PoE Gen2 Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities. (*Layer 3 switching will be available in a future software release)
• UniFi SmartPower RPS, USP-RPS, is Ubiquiti’s PSU failover system.
  • In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device. One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
• Touch screen display
  • The 1.3″ touchscreen display allows easy monitoring and quick troubleshooting.

Ubiquiti UniFi USW-16-POE Switch Technical Specifications

Product Specifications

• Dimensions: 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72″)
• Weight: 2.80 kg (6.17 lb)
• Weight with Brackets: 2.89 kg (6.37 lb)
• Interfaces:
  – Networking: (16) 10/100/1000 RJ45 Ports, (2) 1G SFP Ethernet Ports
  – Management: Ethernet In-Band
• Total Non-Blocking Throughput: 18 Gbps
• Switching Capacity: 36 Gbps
• Forwarding Rate: 26.78 Mpps
• Power Method: 100-240VAC, 50/60 Hz, Universal Input
• Power Supply: AC/DC, Internal, 60W
• Voltage Range: 100 to 240VAC
• Max Power Consumption (Excluding PoE Output): 18W
• LEDs:
  – System: Status
  – RJ45 Data Ports: PoE; Speed/Link/Activity
  – SFP Data Ports: Link/Activity
• ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
• Shock and Vibration: ETSI300-019-1.4 Standard
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 10 – 90% Noncondensing
• Certifications: CE, FCC, IC

PoE

• Total Available PoE: 42W
• PoE Interfaces:
  – Ports 1-8: POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
• Max. PoE Wattage per Port by PSE:
  – 802.3at: 32W
• Voltage Range:
  – 802.3af Mode: 44-57V
  – 802.3at Mode: 50-57V
