Ubiquiti USW-Pro-48-PoE Dubai

The Ubiquiti USW-Pro-48-PoE Switch Dubai has an external DC power interface, which works with a separate power adapter as a power backup if the internal PSU fails.

Add to quote

Ask for Quote & Get Low Price

Description

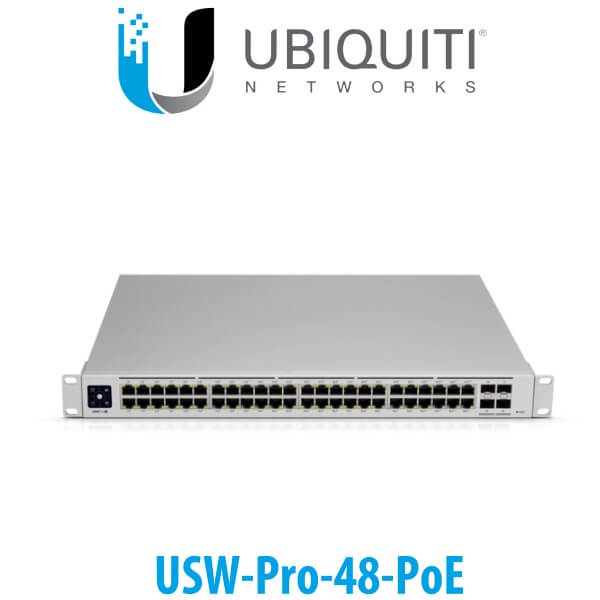

Ubiquiti USW-Pro-48-PoE Dubai

The Ubiquiti Networks USW-Pro-48-PoE Dubai is a fully manageable second generation PoE – Enabled Network Switch with SFP+ which enables you to successfully expand your business’ network. It is equipped with Layer 3 protocol support and boasts of a 600W across 32W PoE connectors.

The UniFi Switch USW-Pro-48-PoE Gen2 Dubai is equipped with eight 64W PoE++ ports for easy connection with power-intensive devices such as high-resolution network security cameras. Each port delivers 88 Gb/s non-blocking throughput with a 176 Gb/s switching capacity and a 130.94 Mbps forwarding rate. Four 10 Gb/s SFP+ ports are available for additional network expansion using compatible devices. Administrators can easily monitor and manage the switch with the 1.3″ touchscreen display or access and configure it and connected devices using the UniFi Network Controller application.

Ubiquiti UniFi Switch USW-Pro-48-PoE Gen2 Features:

Switching Performance
- The second-generation UniFi switch offers a 130.94 Mbps forwarding capacity to simultaneously process traffic on all ports without packet loss. The UniFi PoE Pro Switch has a non-blocking throughput of 88 Gb/s with a 176 Gb/s switching capacity.
Layer 3
- The Ubiquiti USW-Pro-48-PoE Layer 3 Switch Dubai features Layer 3 protocol capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality.
SFP+ Fiber Connectivity
- Connect high-speed network storage or set up a long-distance uplink using the 10 Gb/s SFP+ ports that are integrated on the Ubiquiti USW-Pro-48-PoE Layer 3 Switch Dubai.
Redundant Power
- The Ubiquiti USW-PrO-48-PoE Switch Dubai has an external DC power interface, which works with a separate power adapter as a power backup if the internal PSU fails.

UniFi Controller

Network Management
- The UniFi Network Controller can provision UniFi devices, map networks, manage system traffic, and monitor network statistics from one interface.
Multi-Site Management
- You may use a single instance of the UniFi Controller running in the cloud from a centralized interface to manage multiple UniFi sites. Each site is logically separated with its own network monitoring, configuration, maps, statistics, and administrator accounts.
Detailed Analytics
- Ubiquiti’s Deep Packet Inspection (DPI) engine tracks which applications and IP addresses are using the most bandwidth. Additionally, the UniFi Network Controller provides configurable reporting and analytics to efficiently manage user populations and speed up troubleshooting.

Ubiquiti Networks Managed Specs

Interfaces

Ports

40 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+
8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+ (Type 2)
4 x 10Gb SFP+ (Uplink)

Protocols

Layer Services Supported	Layer 2 Support, Layer 3 Support
Supported Protocols	Auto-MDIX/MDI Port Mirroring
Transmission Method	Store-and-Forward

Standards

Supported IEEE Standards

802.3af, 802.3at, 802.3bt

Performance

Forwarding Rate	65.47 Mpps
Switching Bandwidth	44 Gb/s (Non-Blocking)

Computer

OS Compatibility

macOS 10 or Later
Windows 7 or Later
Linux

Electrical

Power Draw	60.00 W (Max)
DC Input Power	11.5 to 52 VDC at 11.54 A
AC Input Power	100 to 240 VAC, 50 / 60 Hz
PoE Power Budget	600 W
PoE per Port	32 to 64 W
Power Supply Type	Internal

Environmental

Operating Temperature	23 to 104°F / -5 to 40°C
Operating Humidity	10 to 90%
Certifications	CE, FCC, IC, as per Manufacturer

General

Cooling System	Passive
Indicator Lights	Link/Activity, Link/Activity/Speed, PoE, System
Rack Form Factor	1 RU
Dimensions	17.42 x 11.24 x 1.72″ / 442.4 x 285.4 x 43.7 mm
Weight	9.48 lb / 4.3 kg
