Description

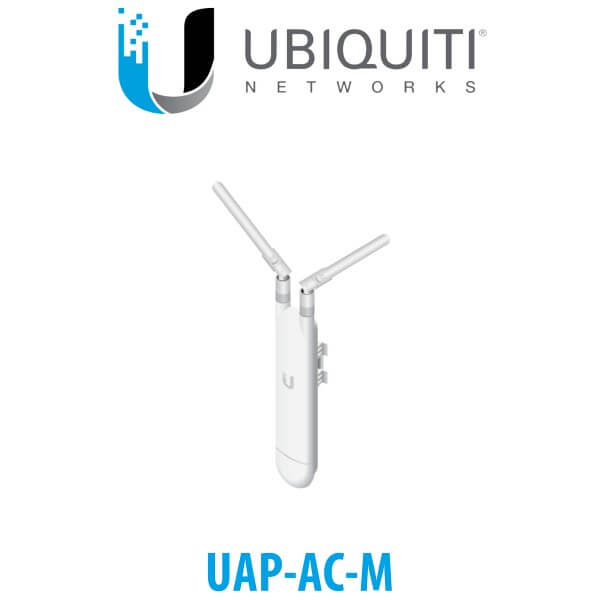

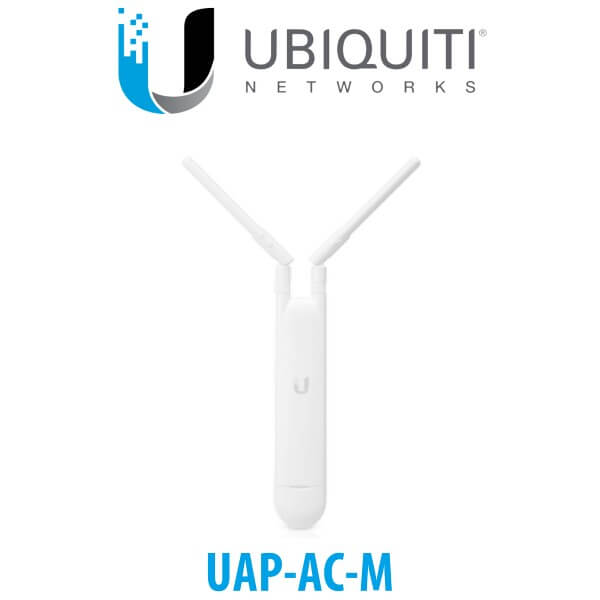

Ubiquiti Networks UAP – AC- M Dubai
Expand your Wi-Fi network outdoors with the Ubiquiti UAP – AC- M Dubai Enterprise Wi-Fi System. The UAP-AC-M is a high-performance, outdoor, 2×2 MIMO, 802.11ac dual-band access point, capable of speeds of up to 1167 Mbps. The Ubiquiti UAP – AC- M Dubai features two RP-SMA connectors, which can be used with the included dual-band Omni-directional antennas, or with an optional connected dual-band antenna for customized pattern shaping.
Ubiquiti UAP – AC- M Dubai Features
- Compact Form Factor
-
The Ubiquiti UAP – AC- M Dubai is designed to discreetly integrate into virtually any environment.
-
-
Weather-Resistant Enclosure
-
The Ubiquiti UAP – AC- M Dubai can be used indoors or outdoors.
-
-
LED Indicator
-
Unique provisioning LED provides administrator location tracking and alerts for each device.
-
-
Versatile Mounting
-
The UniFi AC Mesh AP can be mounted on a wall, pole, or you can fast-mount a Ubiquiti high-gain antenna. (All accessories are included)
-
-
Multiple Power Options
-
The Ubiquiti UAP – AC- M Dubai is compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with an 802.3af Alternative A compatible switch or the included Gigabit PoE adapter.
-
-
Antenna Options
-
Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorized antenna for expanded range coverage and customized pattern shaping.
-
-
Packed with Features
-
Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.
-
-
RF Map
-
Use the RF map to monitor and analyze radio frequencies for optimal AP placement, configuration, and troubleshooting.
-
-
Powerful RF Performance Features
-
Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.
-
-
Detailed Analytics
-
Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.
-
-
Wireless Uplink
-
Wireless Uplink functionality enables wireless connectivity between Ubiquiti UAP – AC- M Dubai for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology. For devices that support Plug & Play Mesh, this functionality is extended to allow multi-hop wireless uplink – so wirelessly uplinked APs can support uplink to other wirelessly uplinked APs.
-
-
Guest Portal/Hotspot Support
-
Easy customization options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi’s rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use. All UniFi APs include Hotspot functionality:
-
• Built-in support for billing integration using major credit cards.
• Built-in support for voucher-based authentication.
• Built-in Hotspot Manager for voucher creation, guest management, and payment refund.
• Full customization and branding of Hotspot portal pages.
• Built-in support for voucher-based authentication.
• Built-in Hotspot Manager for voucher creation, guest management, and payment refund.
• Full customization and branding of Hotspot portal pages.
- Multi-Site Management
- A single cloud-based UniFi Controller can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and admin read/write and read-only accounts.
- WLAN Groups
- Manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP’s radio.
Unifi Mesh Access Point Specifications
| Networking Interface | 2×2 WiFi dual band / Ethernet Gigabit |
| Ports | (1) 10/100/1000 Ethernet |
| Buttons | Reset |
| Antennas | 2 Dualband antennas |
| Wi-Fi Standards | 802.11a/b/g/n/ac |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return);802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)(Supported Voltage Range: 44 to 57VDC) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter* |
| Maximum Power Consumption | 8.5W |
| Max TX Power | 20 dBm |
| BSSID | Up to Four per Radio |
