U6 Lite Access Point Dubai

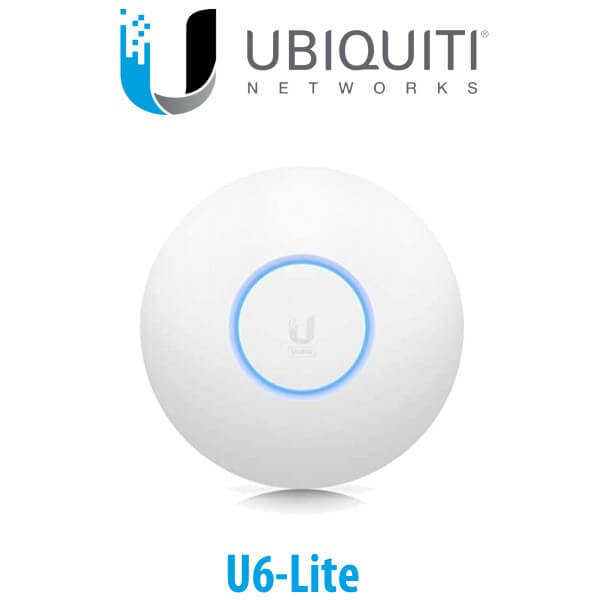

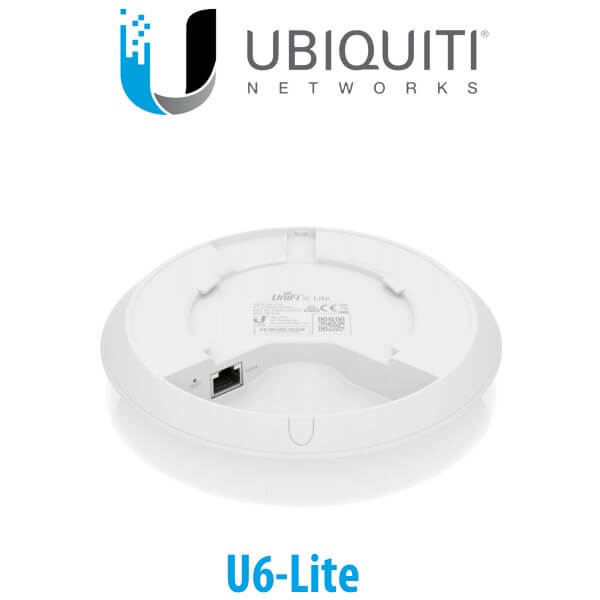

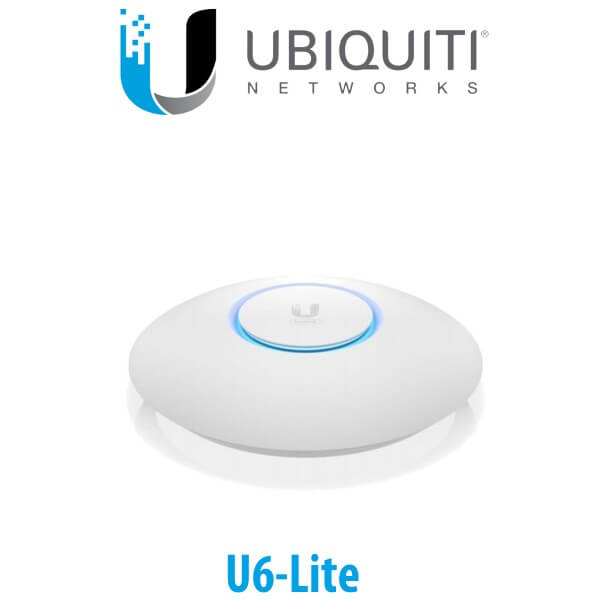

The Ubiquiti UniFi -U6 Lite Dubai is a 2×2 Wi-Fi 6 access point that delivers up to 1.5 Gbps aggregate radio rate with 5 GHz (MU-MIMO and OFDMA) and 2.4 GHz (MIMO) radios. Mount Ubiquiti UniFi -U6 Lite Dubai horizontally in the ceiling to cover a high-density environment, or mount it vertically on the wall to extend its range. The Ubiquiti UniFi -U6 Lite Dubai has a compact and nano-sized design, so it can use nanoHD covers and mounting accessories.

Ubiquiti UniFi U6 Lite Access Point Features:

• • 2×2 high-efficiency Wi-Fi 6
  • 5 GHz band 2×2 MU-MIMO and OFDMA with radio rate of 1.2 Gbps
  • 2.4 GHz band 2×2 MIMO with radio rate of 300 Mbps
  • Gigabit Ethernet, powered with 802.3af PoE (PoE injector not included)
  • Compatible with UAP-nanoHD covers and recessed mounting bracket
• Less interference with OFDMA
  • With OFDMA, Wi-Fi 6 access points not only deliver higher-volume data packets, but tactically parse and deliver data to multiple devices simultaneously, drastically improving their upload and download speeds.
• Two-stream, high-efficiency Wi-Fi 6 technology
  • Wi-Fi 6 APs deliver an aggregate radio rate of up to 1.5 Gbps with 5 GHz (2×2 MU-MIMO and OFDMA) and 2.4 GHz 2×2 MIMO radios.
• Powerful, wider wireless coverage
  • The Ubiquiti UniFi -U6 Lite Dubai access point utilizes Wi-Fi 6 technology to provide strong and expansive wireless coverage to all enterprise networking environments.
• Simultaneously connect to more devices
  • Create and support over 300 distinct client connections.
• Easily set up and grow your network
  • The Ubiquiti UniFi -U6 Lite Dubai seamlessly integrates with the UniFi Network Application and simplifies network bridging.

U6-Lite – Technical Specifications

Mechanical

• Dimensions: Ø160 x 32.65 mm (Ø6.3 x 1.3″)
• Weight:
  – Without Mount: 300 g (10.6 oz)
  – With Mount: 315 g (11.1 oz)
• Enclosure Characteristics: Polycarbonate 110 and ADC12 Die Casting
• Mounting Characteristics: Polycarbonate, SGCC Steel

Hardware

• Processor Specs: 880 MHz MIPS 1004 KEc
• Memory Information: 256 MB
• Management Interface: Ethernet In-Band
• Networking Interface: (1) 10/100/1000 Mbps Ethernet RJ45
• Buttons: Factory Reset
• LEDs: White/Blue
• Power Method: 802.3af PoE, Passive PoE (48V)
• Power Supply: 802.3af PoE; 48V, 0.32A PoE Adapter (Not Included)
• Supported Voltage Range: 44 to 57VDC
• Max. Power Consumption: 12W
• Max. TX Power
  – 2.4GHz: 23 dBm
  – 5GHz: 23 dBm
• MIMO:
  – 2.4GHz: 2 x 2-
  5GHz: 2 x 2
• Throughput Speeds
  -2.4GHz: 300 Mbps
  – 5GHz: 1201 Mbps
• Antenna Gain
  – 2.4GHz: 2.8 dBi
  – 5GHz: 3 dBi
• Operating Temperature: -30 to 60° C (-22 to 140° F)
• Operating Humidity: 5 – 95% Noncondensing
• Certifications: CE, FCC, IC

Software

• WiFi Standards
  – 802.11a/b/g
  – WiFi 4/Wi-Fi 5/Wi-Fi 6
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• BSSID 8 per Radio
• VLAN: 802.1Q
• Advanced: QoS Per-User Rate Limiting
• Guest Trafc Isolation: Supported
• Concurrent Clients: 300+
