Ubiquiti USW-ProAggregation Network Switch Dubai

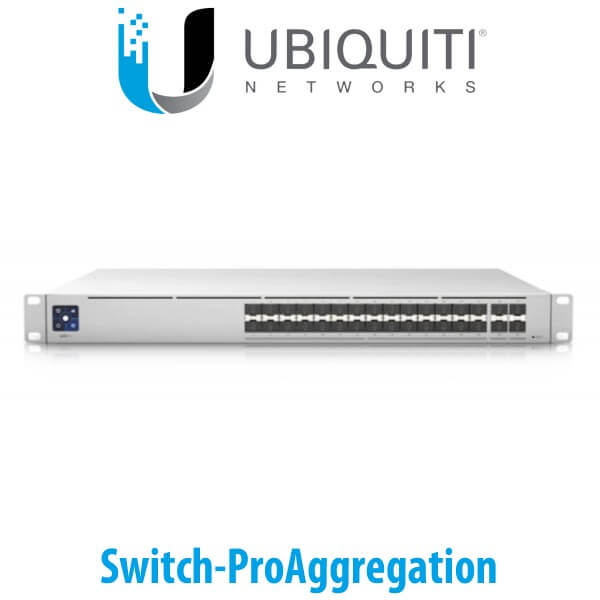

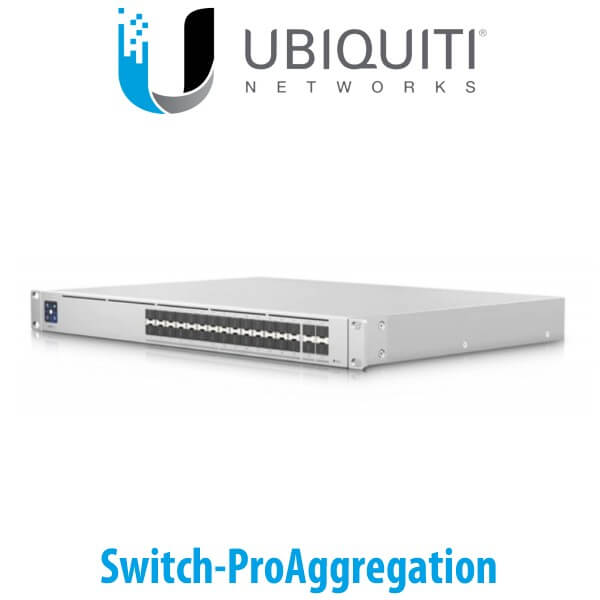

The Ubiquiti Switch-ProAggregation Dubai is a fully managed, Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports designed to enhance your network’s switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable Ubiquiti USW-ProAggregation Dubai switch also offers 760 Gbps switching capacity and features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the Ubiquiti USW-ProAggregation Dubai offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
- (1) 1.3” LCM color touchscreen with AR switch management
- (28) 10G SFP+ ports
- (4) 25G SFP28 ports
- (1) USP RPS DC input
- 760 Gbps switching capacity
- Layer 3 switching features
Technical Specs
| Mechanical | |
|---|---|
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7″) |
| Weight | Without Mount : 4.6 kg (10.14 lb) With Mount : 4.7 kg (10.36 lb) |
| Enclosure Material | SGCC Steel |
| Hardware | |
| Total Non-Blocking Throughput | 380 Gbps |
| Switching Capacity | 760 Gbps |
| Forwarding Rate | 565.44 Mpps |
| Max. Power Consumption | 100W |
| Power Method | (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz (1) USP-RPS DC input, 11.5VDC, 8.7A |
| Power Supply | AC/DC, Internal, 100W |
| Network Interface | (28) 1/10 Gbps SFP+ Ethernet (4) 1/10/25 Gbps SFP28 Ethernet* |
| LCM Display | (1) 1.3″ Touchscreen Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue : Device is Adopted |
| LEDs | SFP28/SFP+ : White, Link and Activity |
| Management Interface | Ethernet In-Band |
| Modes | SMB Layer 3 10/25 G Fiber Switch |
| ESD/EMP Protection | Air : ± 16kV, Contact : ± 12kV |
| Operating Temperature | -5°C to 40°C (23°F to 104°F) |
| Operating Humidity | 10 – 90% Noncondensing |
| Certifications | CE, FCC, IC |
