Description

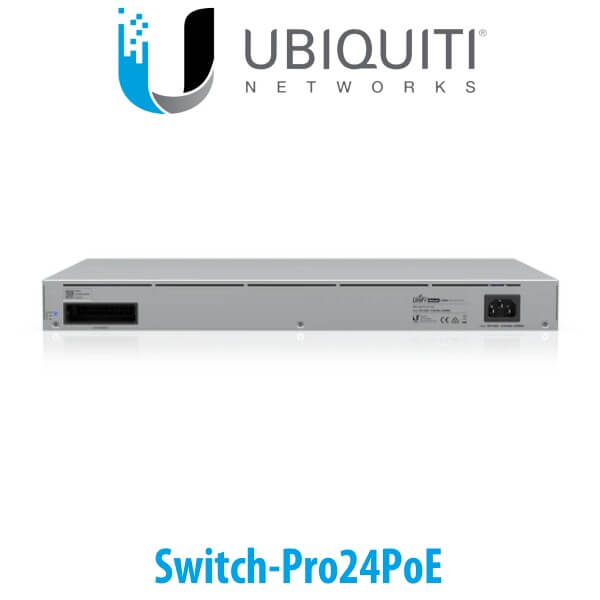

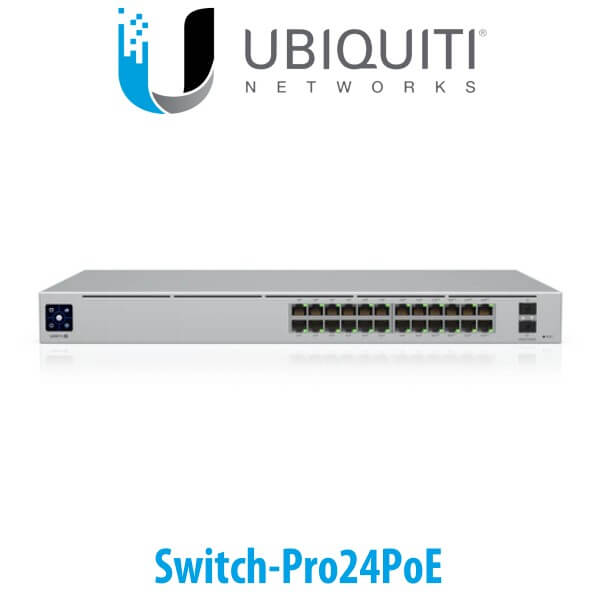

Ubiquiti Switch-Pro24PoE Network Switch Dubai
The Ubiquiti Switch-Pro24PoE Dubai is a fully managed switch with (16) GbE, 802.3at PoE+ RJ45 ports, (8) GbE, 802.3bt PoE++ RJ45 ports, and (2) 10G SFP+ ports. The USW Pro 24 PoE combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The Ubiquiti Switch-Pro24PoE Dubai is the ideal access layer switch for any UniFi system. It combines up to 400W of PoE power with SmartPower RPS (USP RPS) power redundancy. The Ubiquiti Switch-Pro24PoE Dubai can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Ubiquiti Switch-Pro24PoE Dubai is a fully managed Layer 3 switch with (8) 802.3bt (PoE++) and (16) 802.3at (PoE+) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The Ubiquiti Switch-Pro24PoE Dubai features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The Ubiquiti Switch-Pro24PoE is the ideal access layer switch for any UniFi solution – it combines up to 400W of near-silent PoE power with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Features:
- (1) 1.3″ LCM color touchscreen with AR switch management
- (16) GbE, 802.3at PoE+ RJ45 ports
- (8) GbE, 802.3bt PoE++ RJ45 ports
- (2) 10G SFP+ ports
- (1) USP RPS DC input
- 400W total PoE supply
- Near-silent cooling
- Layer 3 switching features
Technical Specs
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72″) |
| Weight With Rackmount Brackets |
4.30 kg (9.48 lb) 4.39 kg (9.68 lb) |
| Interfaces Networking Management |
(24) 10/100/1000 RJ45 Ports (2) 1/10G SFP+ Ethernet PortsEthernet In-Band |
| Total Non-Blocking Throughput | 44 Gbps |
| Switching Capacity | 88 Gbps |
| Forwarding Rate | 65.472 Mpps |
| Power Method Universal Input USP RPS DC Input |
100-240VAC/50-60 Hz 52VDC, 7.69A; 11.5VDC, 2.61A |
| Power Supply | AC/DC, Internal, 450W |
| Supported Voltage Range | 100 to 240VAC |
| Max. Power Consumption (Excluding PoE Output) | 50W |
| LEDs System RJ45 Data Ports SFP+ Data Ports |
Status PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
