Description

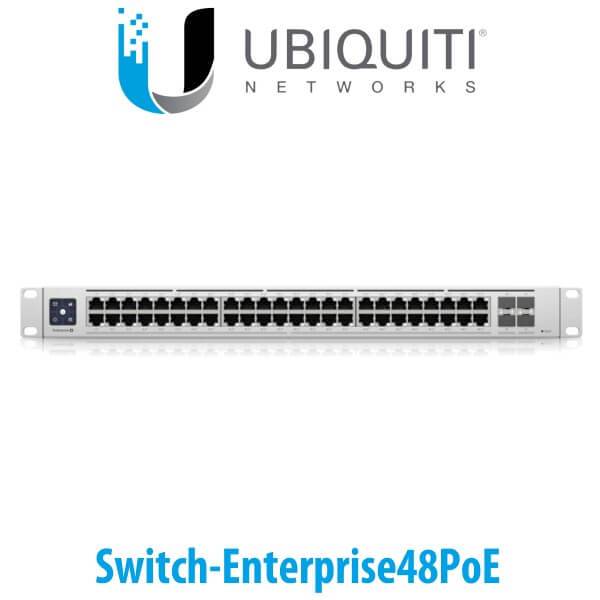

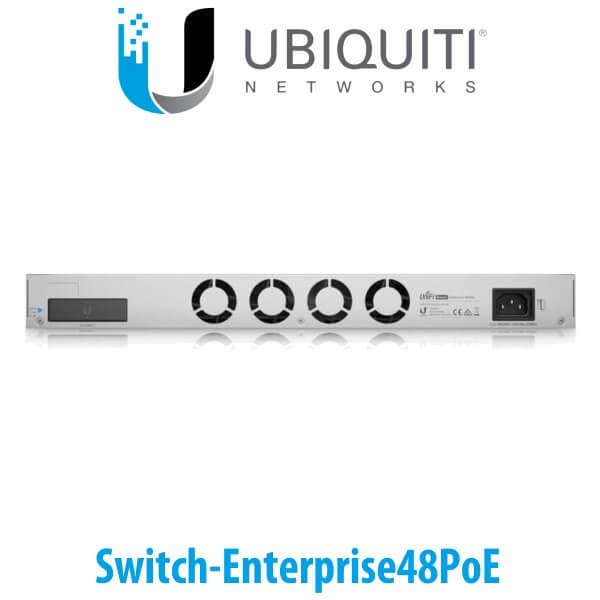

Ubiquiti Switch-Enterprise48PoE Network Switch Dubai
The Ubiquiti Switch-Enterprise48PoE Dubai is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).The USW Enterprise 48 PoE also features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise 48 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPSÂ sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
- (1) 1.3″ LCM color touchscreen with AR switch management
- (48) 2.5GbE, 802.3at PoE+ RJ45 ports
- (4) 10G SFP+ ports
- (1) USP RPS DC input
- 720W total PoE supply
- Layer 3 switching features
Specifications
| Mechanical | |
|---|---|
| Dimensions | 442 x 44 x 400 mm (17.4 x 1.7 x 15.7″) |
| Weight | Without Mount : 6.2 kg (13.67 lb) With Mount : 6.3 kg (13.89 lb) |
| Enclosure Material | SGCC Steel |
| Mount Material | SGCC Steel |
| Hardware | |
| Total Non-Blocking Throughput | 160 Gbps |
| Switching Capacity | 320 Gbps |
| Forwarding Rate | 238.095 Mpps |
| Max Power Consumption (Excluding PoE Output) | 150W |
| Power Method | (1) Universal AC input, 100-240VAC, 10A Max, 50/60 Hz (1) USP-RPS DC input, 52VDC, 13.84A; 11.5VDC, 13A |
| Power Supply | AC/DC, Internal, 100-240V, 10A Max. |
| Management Interface | Ethernet In-Band |
| Networking Interfaces | (48) 100MbE/1GbE/2.5GbE RJ45 port |
| SFP+ Interfaces | (4) 1/10G SFP+ ports |
| PoE Interfaces | (48) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Total Available PoE | 720W |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range 802.3af Mode | 44 to 57V |
| Voltage Range 802.3at Mode | 50 to 57V |
| Services | SMB Layer 3 PoE Gigabit Ethernet Switch |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| LCM Display | (1) 1.3″ LCM color touchscreen Bootup Animation : Bootup in Progress Firmware Upgrade Icon : Firmware Upgrading Steady White : Factory Defaults, Awaiting Adoption Steady Blue : Device is Adopted |
| Button | Factory Reset |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 – 90% Noncondensing |
| Certifications | CE, FCC, IC |
| LED | |
| Ethernet | White : Link or Activity |
| SFP+ | White : Link or Activity |
