Description

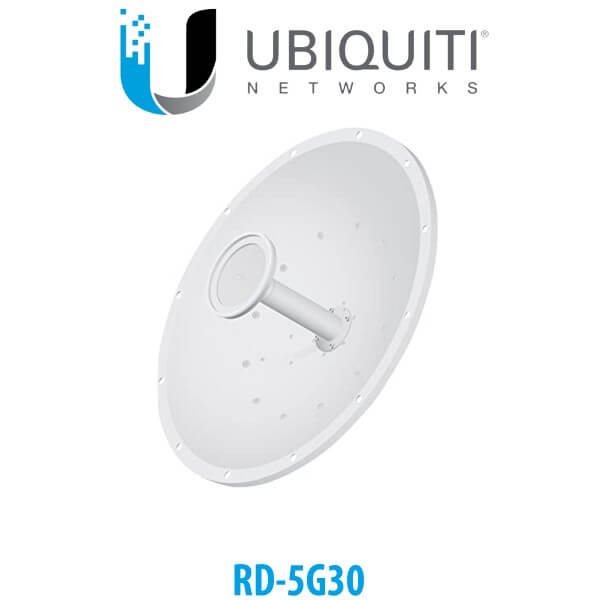

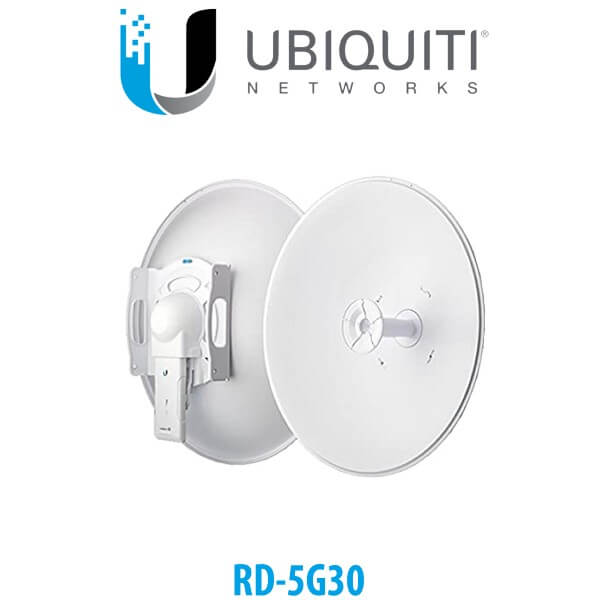

Ubiquiti Networks RD-5G30 Dubai
The Ubiquiti RD-5G-30 Dubai features a gain of 30 dBi that helps create a Point-to-Point (PtP) bridge for networking applications when paired with an optional Rocket M BaseStation. It delivers dual-polarity performance and operates in the 5 GHz frequency, which works well for long-distance links. Furthermore, it comes with a shroud, Rocket mount, and pole-mounting support.
Ubiquiti Networks RD-5G30 Dubai Features:
RocketDish Antenna
- Robust mechanical design for outdoor application use
- Plug-and-Play: Built-in Rocket mount so no tools are needed to install the Rocket BaseStation
airMAX Technology
- Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated timeslots scheduled by an intelligent AP controller
- Eliminates hidden node collisions and maximizes airtime efficiency
- Provides scalability, high throughput, and low latency in unlicensed multipoint networks
- Intelligent QoS: Priority is given to voice/video for seamless streaming
- Supports high-speed, carrier-class links
GPS Synchronization (When Paired with Rocket M GPS)
- Rocket M GPS units seamlessly integrate with AirMax RocketDish Antennas to enable you to utilize Ubiquiti AirSync GPS Synchronization technology.
- AirSync technology enhances the hardware and software of Rocket M to use GPS signals for precision timing
- GPS Signal Reporting: Easily manage/monitor GPS satellite signals using AirOS software (not included)
- No Co-Location Interference: Synchronized transmission among Rocket M GPS-powered Base Stations (available separately) effectively eliminates co-location interference
- Channel Re-Use: Frequency reuse for increased scalability
Ubiquiti RD-5G30 Dubai Specs
| Frequency Range | 5.1 to 5.8 GHz |
| Gain | 30 dBi |
| Hpol Beamwidth | 5° (3 dB) |
| Vpol Beamwidth | 5° (3 dB) |
| Front-to-Back Ratio | 34 dB |
| Max VSWR | 1.4:1 |
| Wind Loading | 177 lbf @ 125 mph |
| Wind Survivability | 125 mph |
| Polarization | Dual-linear |
| Cross-pol Isolation | 35 dB minimum |
| ETSI Specification | EN 302 326 DN2 |
| Diameter | 25.6 x 25.6 x 12″ (65 x 65 x 30.4 cm) |
| Weight | 21.6 lb (9.8 kg) |
Packaging Info
| Package Weight | 20.8 lb |
| Box Dimensions (LxWxH) | 28 x 27 x 7″ |
