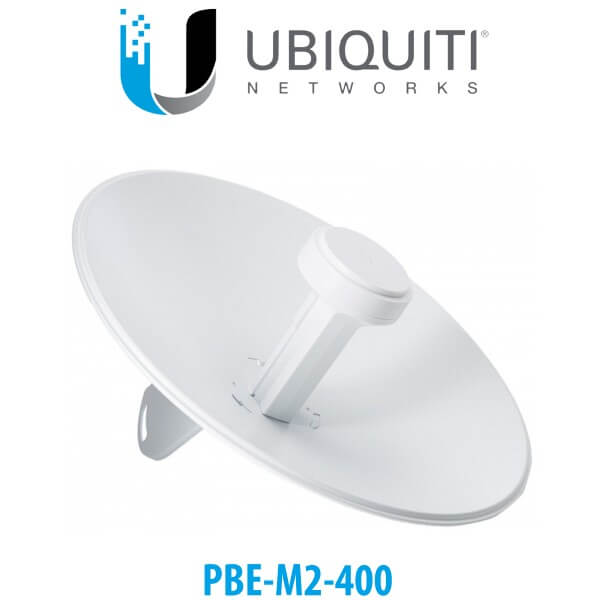

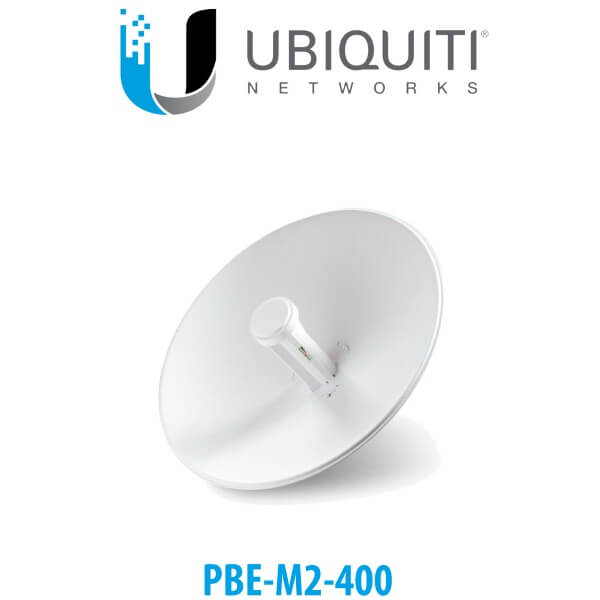

Ubiquiti PBE-M2-400 PowerBeam airMAX Bridge Dubai
The Ubiquiti PBE-M2-400 Dubai has an innovative mechanical design. This PowerBeam supports up to 150+ Mb/s real TCP/IP throughput. It directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is important in an area that is crowded with other RF signals of the same or similar frequency.
Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Providing increased performance from its fast processor the PowerBeam is versatile and cost-effective to deploy.
airMAX Technology
Intelligent QoS: Priority is given to voice/video for seamless streaming.
Scalability: High capacity and scalability.
Long Distance: Capable of high-speed, carrier-class links.
PBE-M2-400 PowerBeam airMAX Bridge Features:Â
Software Features
- airOS
- airOS is a versatile Ubiquiti firmware technology which is embedded in the Ubiquiti PBE-M2-400 Dubai. It is an intuitive technology and requires no training to operate. Behind the user interface is a powerful firmware architecture, which enables high-performance, outdoor multi-point networking. PowerBeam uses airOS 5, which provides additional advantages, including airMAX protocol support, automatic channel selection, dynamic configuration changes, instant input validation, use of HTML5 technology, and optimization for mobile devices.
- airView
- Integrated airView provides advanced spectrum analyzer functionality such as waterfall, waveform. Real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference. Waterfall aggregates energy over time for each frequency. Waveform aggregates energy collected. The real-time feature shows energy in real-time as a function of frequency. Recording automates airView to record and report results.
- airControl
- airControl is a powerful and intuitive, web-based server network management application in the Ubiquiti PBE-M2-400 Dubai, which allows operators to centrally manage entire networks of Ubiquiti devices. It features network map, monitor device status, mass firmware upgrade, Web UI access, manage groups of devices, and task scheduling.
Hardware Features
- Built-In Mechanical Tilt
-
The Ubiquiti PBE-M2-400 Dubai comes with a mounting bracket which conveniently offers 20° of up-tilt and up to 20° of down-tilt.
-
- Quick Assembly
-
The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the Ubiquiti PBE-M2-400Â Dubai on the pole.
-
- Easy Removal
-
The antenna feed can be detached with the push of a button.
-
- Fasteners
-
GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners.
-
-
Dish and Brackets
-
The Ubiquiti PBE-M2-400 Dubai is made of galvanized steel, powder-coated for superior corrosion resistance. Redesigned pole bracket for the 19.7″ and 15.7″ dish and fender washers for the 11.8″ dish prevent paint from being removed from the metal brackets, for improved corrosion resistance.
-
PBE-M2-400 PowerBeam – General Specifications
| Processor | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2, 8 MB flash |
| Networking Interface | 1 x 10/100 Ethernet port |
| Power Supply | 24 V, 0.5 A PoE adapter |
| Power Method | Passive PoE (pairs 4, 5+, 7, 8 return) |
| Maximum Power Consumption | 6 W |
| Gain | 18 dBi |
| VSWR | 1.5:1 (maximum) |
| Built-In Mechanical Downtilt | +20° to -10° |
| Polarization | Dual linear |
| Operating Frequency | 2405 – 2475 MHz |
| Wind Loading | 342.5 N @ 200 km/hour (77 lbf @ 125 mph) |
| Wind Survivability | 200 km/hour (125 mph) |
| LEDs | 1 x Power 1 x LAN 4 x WLAN |
| Signal Strength LEDs | Software-adjustable to correspond to custom RSSI levels |
| Channel Sizes | 5/8/10/20/30/40 MHz |
| Salt Fog Test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 104°F (40°C) Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Operating Temperature | -40 to +158°F (-40 to +70°C) |
| Operating Humidity | 5 to 95% (non-condensing) |
| Compliance | RoHS |
| Wireless Approvals | FCC, IC, CE |
| Mounting | Pole-mount kit |
| ESD/EMP Protection | Air: ± 24 kV Contact: ± 24 kV |
| Enclosure | Outdoor UV stabilized plastic |
| Dimensions | 16.5 x 16.5 x 11.4″ (42.0 x 42.0 x 28.9 cm) |
| Weight | 3.96 lb (1.80 kg) |
| Package Weight | 35 lb |
| Box Dimensions (LxWxH) | 26 x 21 x 14″ |
