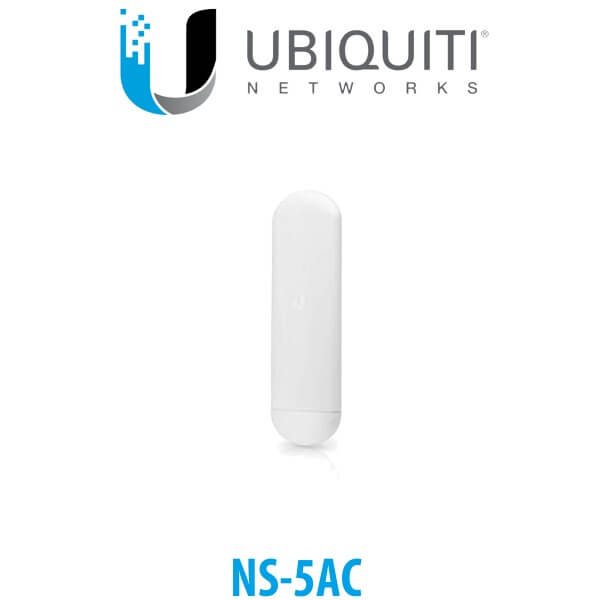

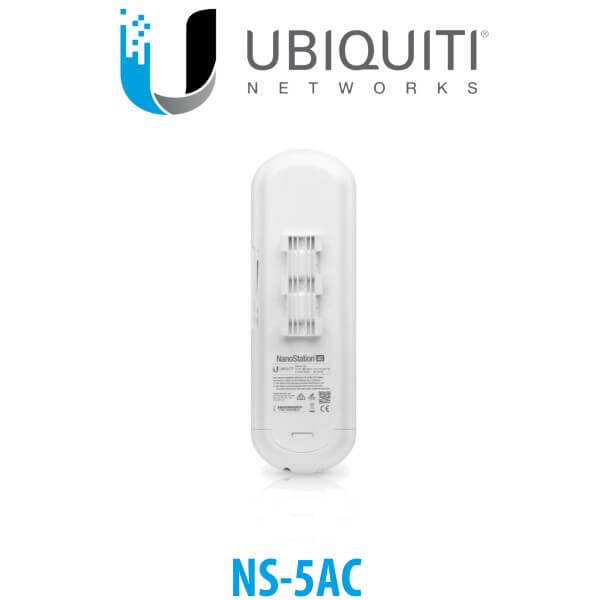

Ubiquiti NanoStation AC NS-5AC Dubai
The Ubiquiti NS-5AC Dubai gets maximum gain out of the smallest footprint. The low cost, high-performance, and small form factor of the NS-5AC makes it extremely versatile and economical to deploy. Classic NanoStation design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy U Mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).
Ubiquiti NanoStation AC (NS-5AC) Dubai Features:
- Sleek Industrial Design
- The NanoStation AC loco represents the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.
- Dual Ethernet Connectivity
- The NS-5AC Dubai provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
-
Management Wi-Fi Radio
-
Each Ubiquiti NS-5AC Dubai model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
-
-
Improved Surge Protection
-
The NanoStation AC loco feature enhanced protection against ESD events.
-
-
Now with airOS®8
-
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
-
| Processor Specs | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2 |
| Wireless transmission speed | 450+ Mbps |
| Operating Frequency | 5GHz |
| Interfaces | (2) 10/100/1000 Mbps Ethernet Ports |
| Gain | 16 dBi |
| Polarization | Dual Linear |
| Max. Power Consumption | 8.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Supply (Included) |
| Power Method | 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Enclosure Characteristics | UV Resistant Polycarbonate |
| Mounting | Pole Mounting Kit Included |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Dimensions | 257 x 84 x 41 mm (10.12 x 3.31 x 1.61″) |
| Weight | 233 g (8.22) oz |
