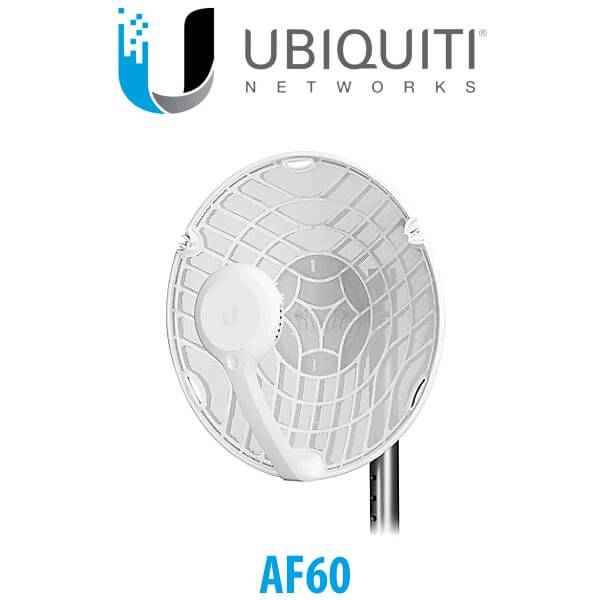

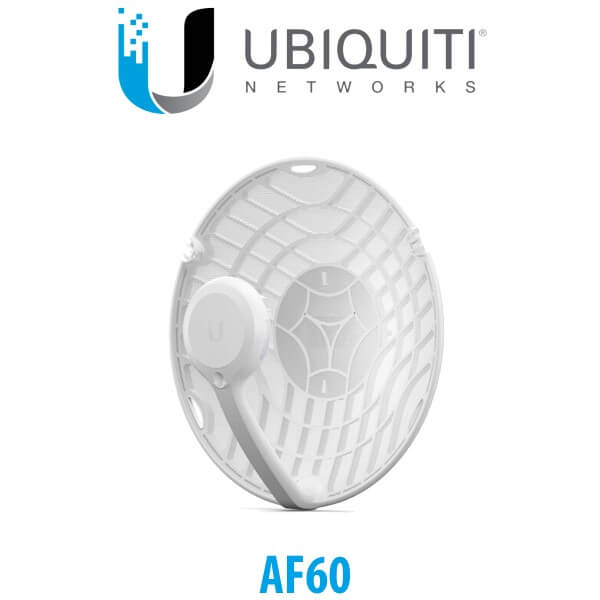

Ubiquiti Networks airFiber 60 Wireless Bridge Dubai
Create a reliable long-distance, point-to-point connection between networks with theUbiquiti AF60 Wireless Bridge Dubai. This 60 GHz outdoor dish antenna is designed to provide low-interference and high-throughput connectivity with a range of up to 1.24 miles and a maximum data throughput of 1.8 Gb/s. It features 38 dBi gain at 60 GHz and 11 dBi on the 5 GHz radio backup, with a combined transmission power of 25 dBm. Made from aluminum and UV-stabilized plastic, the Ubiquiti AF60 Wireless Bridge Dubai can operate between -40 and 140°F, has a wind survivability of 125 mph, and has ESD/EMP protection of about 24kV. A pole mounting kit is included alongside a 24V Gigabit PoE adapter, which connects to the dish’s Gigabit Ethernet port to provide power and data passthrough. Other features of the Ubiquiti AF60 Wireless Bridge Dubai include WPA2-PSK and WPA2 Enterprise signal encryption, an integrated GPS, and automatic switching between the 2 GHz and 1 GHz width channels for optimal link performance.
The Ubiquiti AF60 Wireless Bridge Dubai is a 60GHz radio designed for high-throughput connectivity over an extended range. The airFiber 60 LR features the integrated high-gain dish antenna for high speed, long-range performance Point-to-Point (PtP) links. NewWave Technology enables incredible long-range performance within the 60GHz spectrum.
airFiber 60 Wireless Bridge Features:
- Long Distance Connection
-
The Ubiquiti AF60 Wireless Bridge Dubai has a range of up to 1.24 miles.
-
-
Fast Data Throughput
-
The dish has a maximum throughput of 1.8 Gb/s at the 60 GHz radio band with a 5 GHz backup radio. It connects to your network via the built-in Gigabit Ethernet port and includes a 24V PoE adapter for power.
-
-
High-Powered Dish
-
This dish and integrated antenna in the Ubiquiti AF60 Wireless Bridge Dubai have a 38 dBi signal gain at 60 GHz and 11 dBi at 5 GHz, with a combined transmit power of 25 dBm. It automatically switches between the 1 GHz and 2 GHz channel widths on the 60 GHz link to optimize performance.
-
-
Made for the Outdoors
-
Made from aluminum and UV-stabilized plastic, the Ubiquiti AF60 Wireless Bridge Dubai can operate between -40 to 140°F, has a wind survivability of 125 mph, and has ESD/EMP protection of about 24kV. A pole mounting kit is included.
-
-
Checking Status
-
The Ubiquiti AF60 Wireless Bridge Dubai has easy-to-read LEDs which indicate the dish’s power, Ethernet, signal, and GPS status.
-
| AF60 Specs | |
|---|---|
| Dimensions | 413 x 413 x 320 mm (16.26 x 16.26 x 12.60″) |
| Weight Without Mount With Mount |
1.4 kg (3.09 lb) 1.8 kg (3.97 lb) |
| Enclosure | Aluminum, UV-stabilized Polycarbonate |
| Antenna Gain 5 GHz 60 GHz |
11 dBi 38 dBi |
| Networking Interface | (1) 10/100/1000 Mbps Ethernet Port |
| Max. Power Consumption | 11W |
| Power Method | Passive PoE, Pins 4, 5+ and 7, 8- |
| Power Supply | 24VDC, 0.5A Gigabit PoE Adapter (Included) |
| Voltage Range | +22 to +26VDC |
| LEDs | Power/Ethernet/5G/60G/GPS |

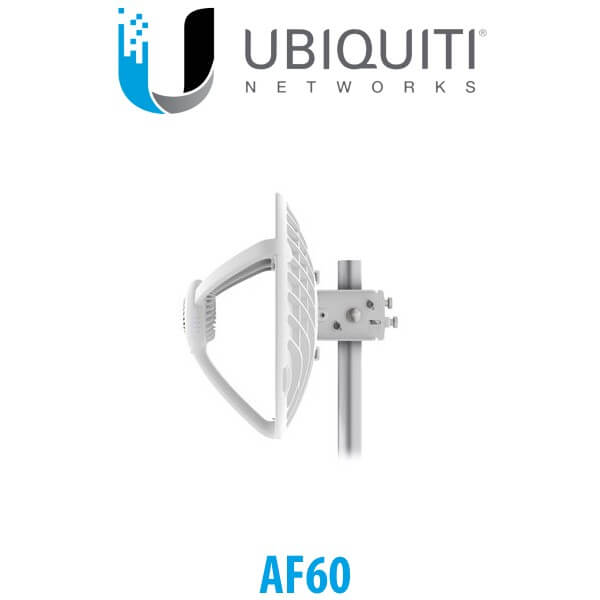

| Mounting | Pole Mount (Included) |
| Wind Loading | 420 N @ 200 km/h (94.4 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | ± 24kV Contact/Air |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC, CE |
| System | |
| Maximum Throughput | 1.8 Gbps |
| Maximum Range | 2+ km |
| Encryption | WPA2-PSK (AES)/WPA2 Enterprise |
| OS | airOS GP |
| Radio | |
| Max. Conducted TX Power 5/60 GHz Combined |
25 dBm |
| Channel Bandwidth 60 GHz 5 GHz |
2160 MHz 20/40/80 MHz |
| Operating Frequency (Mhz) | |
| US/CA U-NII-1 U-NII-3 |
5150 – 5250 5725 – 5850 57,000 – 66,000 |
| Worldwide | 5180 – 5875 57,000 – 66,000 |
| Management Radio (MHz) | |
| Worldwide | 2412 – 2472 |
| US/CA | 2412 – 2462 |
