Description
Ubiquiti NanoSwitch (N-SW) Dubai

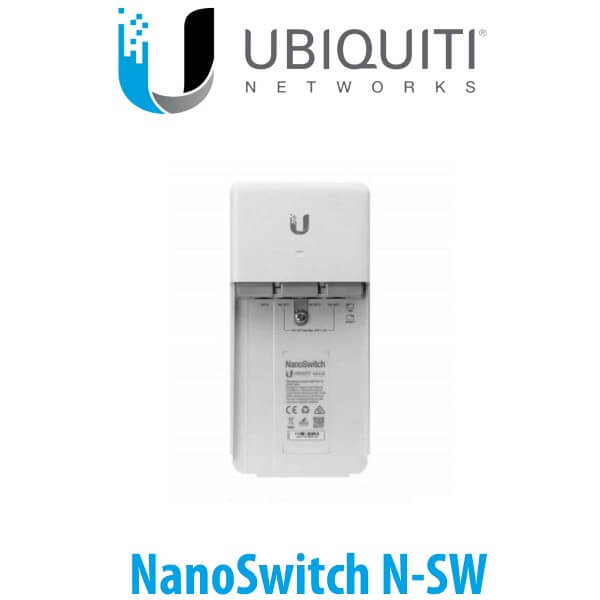

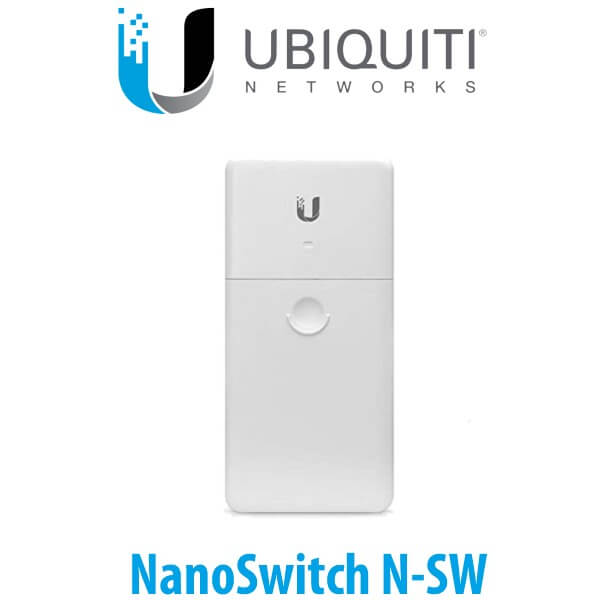

The Ubiquiti NanoSwitch (N-SW) Dubai is an outdoor, 4-port Gigabit switch with PoE pass-through. It is powered by 24V Passive PoE and provides up to 24W of power on three PoE out ports. The Ubiquiti NanoSwitch (N-SW) Dubai is designed for outdoor deployment and supports up to 4 Gbps total, non-blocking line rate.
N-SW Dubai Features:
-
- (1) Gigabit 24V Passive PoE In Port
- (3) Gigabit 24V Passive PoE Out Ports
- Outdoor, Weather-Resistant Enclosure
| N-SW Technical Specifications | |
|---|---|
| Dimensions | 196.4*93.5*32.4mm 7.73*3.68*1.28inch |
| Weight | 269g 9.5oz |
| Enclosure Characteristics | White Polycarbonate |
| HARDWARE | |
| Processor | RTL8367N-VB |
| On-Board Flash Storage | 4Kbits |
| Total Non-Blocking Line Rate | 4Gbps |
| TYP. Power Consumption | 1.5W |
| Power Method | Passive 24V PoE-in |
| Supported Voltage Range | Passive 24V PoE-in |
| Networking Interfaces | (4) 10/100/1000 Mbps Ethernet RJ45 |
| PoE Interfaces | Passive 24V PoE-in |
| Max PoE+ Wattage per Port by PSE | 24V@1A per port / Total 24V@1.5A for three ports |
| Passive PoE Max wattage per port | 24W per port / Total 36W for three ports |
| Operating Temperature | -30C ~ 70C |
| Operating Humidity | 5 to 95% Non-Condensing |
