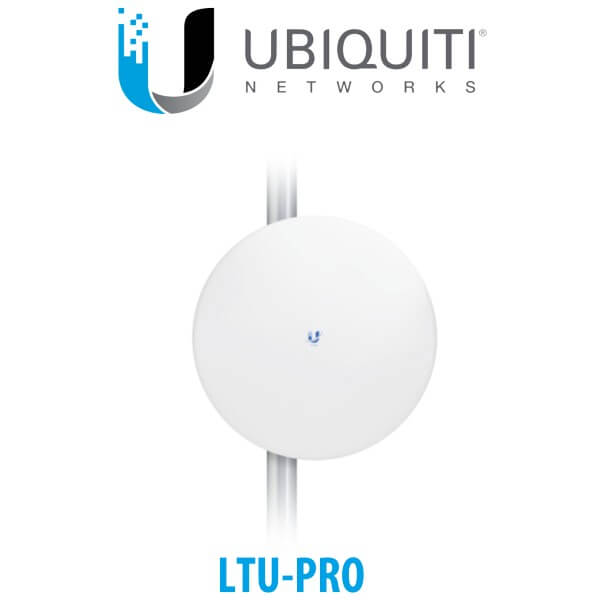

Ubiquiti LTU Pro Client Dubai

Incorporating innovative industrial design with advanced technology, the Ubiquiti LTU Pro Client Dubai is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. It features an integrated high-gain dish for long range and high performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.

Ubiquiti LTU Pro (LTU-Pro) 5GHz PtMP LTU Client, functions in a PtMP environment with the LTU-Rocket as the BaseStation.

Featuring an integrated 24 dBi dish antenna, the Ubiquiti LTU Pro Client Dubai is a 5 GHz subscriber station that functions as a CPE (Customer Premises Equipment) in a Point‑to‑MultiPoint (PtMP) environment with the LTU Rocket® as the basestation.

LTU Pro Dubai Features:

• PtMP CPE
• 1024 QAM
• 10/20/30/40/50 MHz channel bandwidth
• Central configuration management from AP side
• Frequency split
• Automatic power adjustments
• Router mode support
• Functions in a PtMP environment with the LTU-Rocket as the base station
• Proprietary LTU Technology

  • Based on Ubiquiti’s LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi‑Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps of real TCP/IP throughput and modulation rates of up to 4096QAM.
• CPE Modes
  • The LTU Pro Dubai supports both bridged and built-in hardware NAT router modes to suit your specific deployment.
• Frequency Split
  • The LTU Pro can use different frequencies for TX and RX to avoid interference.

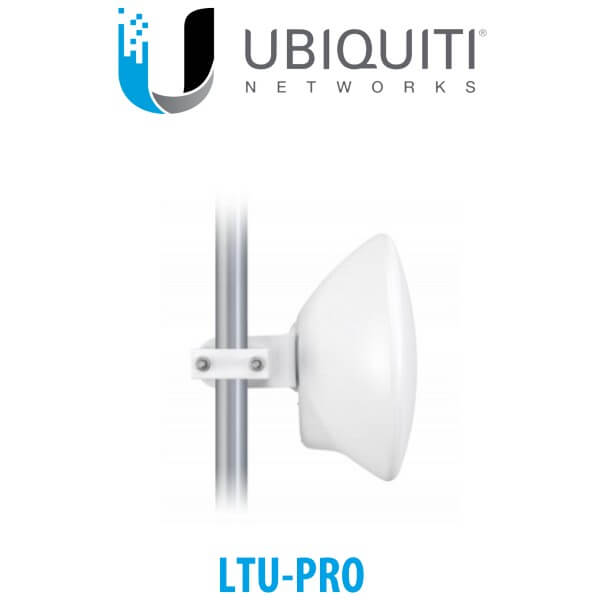

• Robust Pole Mount Design
  • The LTU Pro is designed for quick yet reliable mounting on a pole. It features a built-in mechanical tilt; the mounting bracket allows convenient adjustments to the elevation with a range of ± 15°.

Ubiquiti LTU-PRO – Technical Specifications

General

• Dimensions: 316.5 x 316.5 x 174.3 mm (12.46 x 12.46 x 6.86″)
• Weight: 1.3 kg (2.87 lb)
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Enclosure: Outdoor UV Stabilised Plastic
• Max. Power Consumption: 9W
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
• Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 😎
• Voltage Range: 22 – 26V
• Max. Conducted TX Power: 22 dBm (per Chain)
• Gain: 24 dBi
• Beamwidth: 14°
• Sidelobe Level: -10 dB
• Front-to-Back Ratio: 27 dB
• Mounting: Pole-Mount (Kit Included)
• Wind Loading: 150 N @ 200 km/h (33.72 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• ESD/EMP Protection: ± 24kV Contact/Air
• Operating Temperature: -40 to 60° C (-40 to 140° F)
• Operating Humidity: 10 – 90% Noncondensing
• Certifications: CE, FCC, IC

Operating Frequency (MHz)

• Worldwide: 4800 – 6200*
• US/CA:
  – U-NII-1: 5150 – 5250
  – U-NII-2A: 5250 – 5350
  – U-NII-2C: 5470 – 5725
  – U-NII-3: 5725 – 5850

Bluetooth LE Management Radio (MHz)

• Worldwide: 2400 – 2483.5
