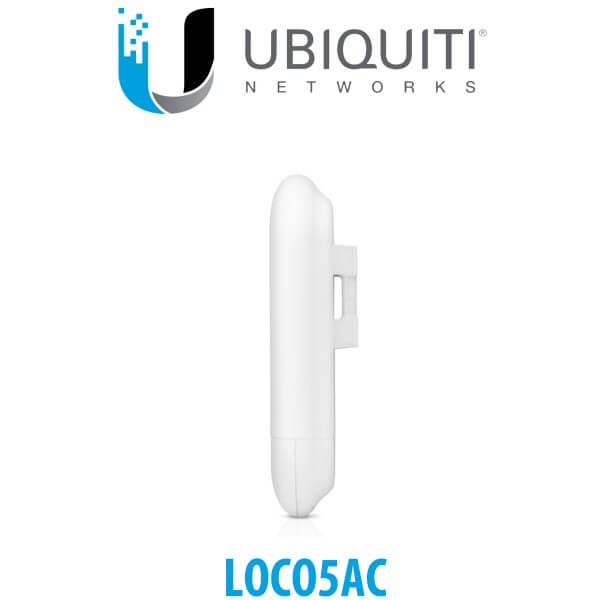

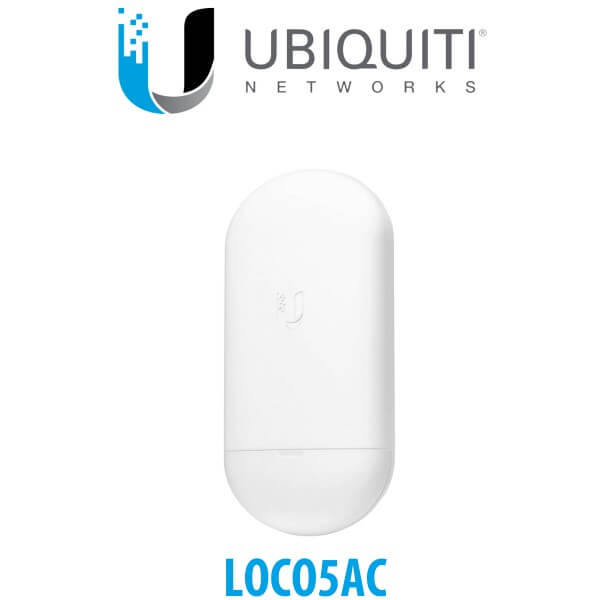

Ubiquiti LOCO5AC NanoStation Dubai
The Ubiquiti LOCO5AC airMAX NanoStation Dubai is an indoor/outdoor, compact, high-performance CPE, featuring airMAX AC technology and a dedicated Wi-Fi radio for management.
Ubiquiti AC Loco (LOCO5AC) Key Features
- Frequency 5GHz
- Throughput 450+ Mbps
- Range 10+ km
- Management Radio
- UNMS App Compatible
- Sleek Industrial Design
- The NanoStation LOCO5AC Dubai represents the next evolution of the iconic CPE design that revolutionised the Wireless ISP industry.
- Improved Surge Protection
- This device features enhanced protection against ESD events.
- Management Wi-Fi Radio
- Each CPE integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Ubiquiti NanoStation AC Loco (LOCO5AC) – Technical Specifications
General
- Dimensions: 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33″)
- Weight: 180 g (6.35 oz)
- Power Supply: 24V, 0.5A Gigabit PoE Supply*
- Max. Power Consumption: 8.5W
- Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
- Gain: 13 dBi
- Networking Interface: 10/100/1000 Mbps Ethernet Port
- Channel Bandwidths: 10/20/30/40/50/60/80 MHz
- Processor Specs: Atheros MIPS 74Kc, 560 MHz
- Memory: 64 MB DDR2
- Cross-pol Isolation:
- 20 dB Minimum
- Max. VSWR 1.8:1
- Beamwidth: 45 degrees (H-pol) / 45 degrees (V-pol) / 45 degrees (Elevation)
- Polarisation: Dual Linear
- Enclosure: Outdoor UV Stabilised Plastic
- LEDs: (1) Power
- Mounting: Pole-Mount (Kit Included)
- Operating Temperature: -40 to 70 C (-40 to 158 F)
- Operating Humidity: 5 to 95% Noncondensing
- RoHS Compliance: Yes
- ESD/EMP Protection: ±24kV Contact/Air
- Shock & Vibration: ETSI300-019-1.4
- Certifications: CE, FCC, IC
- Operating Frequency (MHz): 5150 – 5875
- Management Radio (MHz): 2412 – 2472
