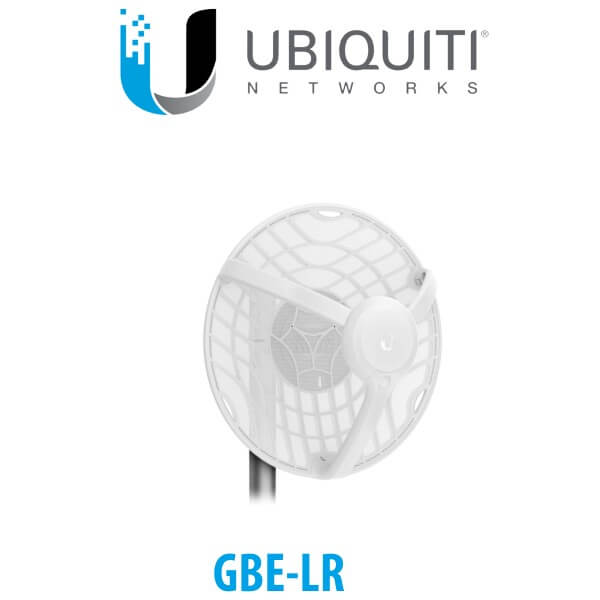

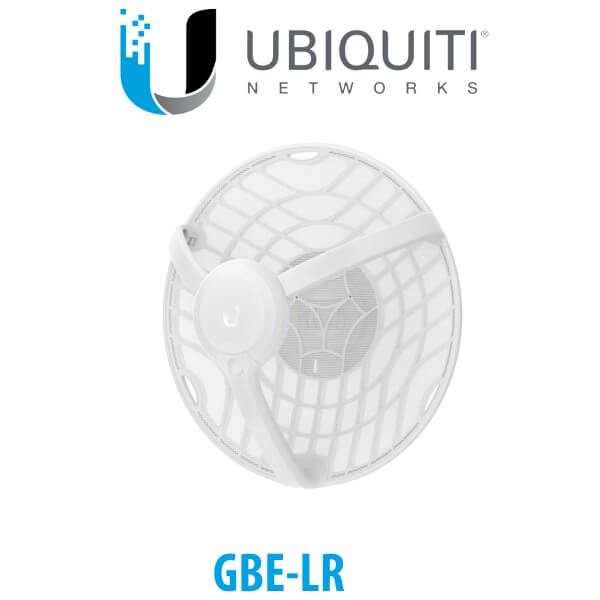

Ubiquiti GBE-LR airMAX Dubai

Featuring a high-gain dish antenna, the Ubiquiti GBE-LR Dubai is an airMAX 60 GHz radio designed for low-interference and high-throughput connectivity of up to 1+ Gbps in long-range deployments of up to 2 km. The Ubiquiti GBE-LR airMAX  Dubai includes a 5 GHz radio for 60GHz link failover. Easy setup can be done via UISP app. For the 60 GHz link, the Ubiquiti GBE-LR airMAX  Dubai supports full bandwidth use of 2.16 GHz. The dedicated management radio allows easy setup via Wi-Fi.

The 60 GHz radio of the Ubiquiti GBE-LR airMAX Dubai supports the full bandwidth use of 2.16 GHz. An integrated dedicated management radio allows easy setup with mobile devices via Wi-Fi using the UNMS software.

Ubiquiti GBE-LR airMAX Features:

• 60 GHz radio with 5 GHz radio backup
• Low-interference 60 GHz spectrum
• Up to 1+ Gbps with low latency
• 2.4 GHz management radio
• Full bandwidth support: 2.16 GHz
• Enclosure: Aluminium, UV-Resistant Polycarbonate
• Networking Interface: 10/100/1000 Ethernet Port, Wi-Fi for Management
• Mounting:
• Pole-Mount Kit (Kit Included)
• Wall-Mount (Not Included)

Product Specifications

• Antenna Gain
• 5 GHz: 11 dBi
• 60 GHz: 38 dBi
• Networking Interface: (1) 10/100/1000 Mbps Ethernet Port
• Max. Power Consumption: 11W
• Power Method: Passive PoE (Pairs 4, 5+; 7, 😎
• Power Supply: 24VDC, 0.5A Gigabit PoE (Included)
• Voltage Range: +22 to +26VDC
• LEDs: Power/ Ethernet/ 5G/ 60G
• Wind Loading: 56 N @ 200 Km/H (12.6 lbf @ 125 MPH)
• Wind Survivability: 200 Km/H (125 MPH)
• Mounting: Pole-Mount (Included)
• ESD/ EMP Protection: ± 24kV Contact/ Air
• Operating Temperature: -40 to 60°C (-40 to 140°F)
• Operating Humidity: 5 to 95% Non-condensing
• Certifications: CE, FCC, IC

Radio
• Max. Conducted TX Power:
• 5/ 60 GHz Combined: 25 dBm
• Channel Bandwidth:
• 60 GHz: 2160 MHz
• 5 GHz: 20/ 40/ 80 MHz
• Management Radio (MHz):
• US/CA: 2412-2462

Product Includes
(1) Dish
(1) Main Arm
(2) Support Arms
(1) Mounting Bracket
(1) Screw
(1) U-Clamp
(2) Flat Washers
(2) Lock Washers
(2) Flange Nuts
(1) Gigabit PoE (24V, 0.5A) with Mounting Bracket
(1) Power Cord
