Description

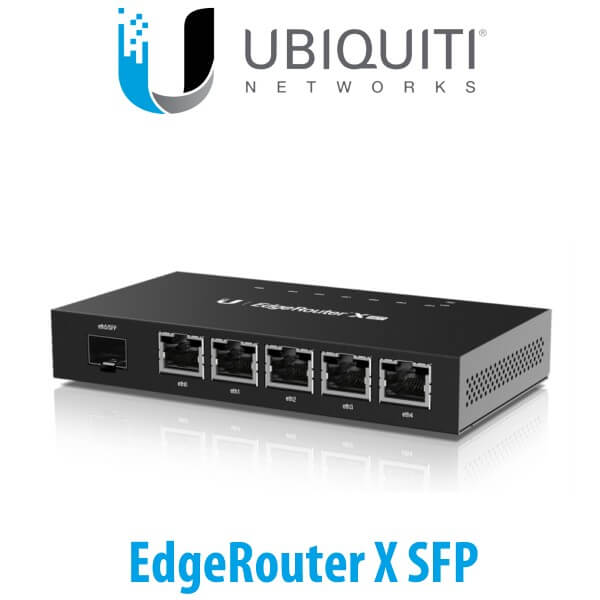

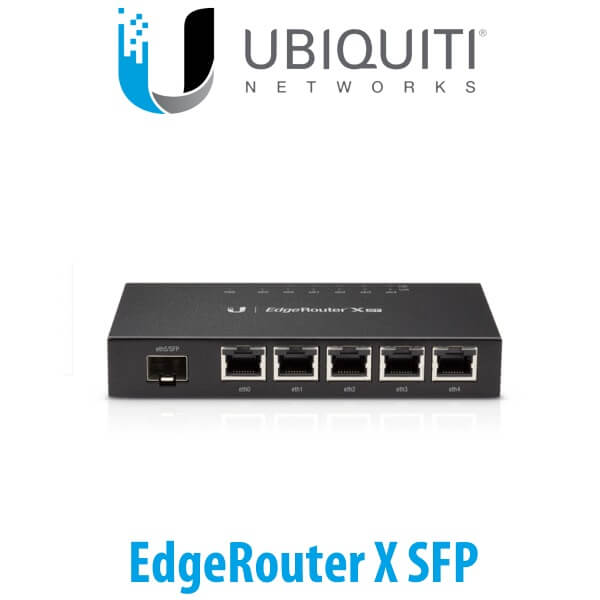

Ubiquiti EdgeRouter X SFP Dubai
The EdgeRouter™ X SFP Dubai combines cost-effective routing performance with the convenience of passive PoE support in a compact form factor.
Ubiquiti EdgeRouter X SFP Dubai combines carrier-class reliability with enterprise-level features in a compact and affordable unit. Available in a rackmountable form factor with eight functional ports, the EdgeRouter Pro and 8-Port EdgeRouter models are capable of routing up to 2 million+ packets per second. Powered by a proprietary and intuitive graphical interface, EdgeOS, EdgeRouters can easily be configured for routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.
Powered by a proprietary and intuitive graphical interface, EdgeOSTM, every ER-X-SFP can easily be configured for the routing, security, and management features required to efficiently run your network.
The EdgeRouter X SFP provides a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status.
Ubiquiti EdgeRouter X SFP Dubai Features:
- (5) Gigabit RJ45 ports with passive PoE support
- (1) Gigabit SFP port for backhaul applications
- Ports configurable for line-rate, Layer-2 switching
- 130 kpps for 64-byte packets
- 1 Gbps for 1518-byte packets
| EdgeRouter X SFP Dubai – Technical Specifications | |
|---|---|
| Dimensions | 142 x 75 x 23 mm (5.59 x 2.95 x 0.91″) |
| Weight | 215 g (7.58 oz) |
| Max. Power Consumption | 5W |
| Power Input | 24VDC, 2.5A Power Adapter (Included) |
| Power Supply | External AC/DC Adapter |
| Supported Voltage Range | 9 to 26VDC |
| Buttons | Reset |
| LEDs | Power, Link/Activity (6), PoE (5) |
| Processor | Dual-Core 880 MHz, MIPS1004Kc |
| Memory | 256 MB DDR3 RAM |
| Code Storage | 256 MB NAND |
| Certifications | CE, FCC, IC |
| Wall Mount | Yes |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Networking Interfaces | |
| Data/PoE Input Port | (5) 10/100/1000 RJ45 Ports |
| Data Port | (1) 100/1000 SFP Port |
| PoE with 24VDC Power Adapter | |
| PoE Out Voltage Range | 22-24VDC |
| Max. PoE Wattage Per Data Port | 12W (24V) |
| Max. PoE Wattage Combined for All 5 Data Ports | 50W |
| PoE Method | Passive |
