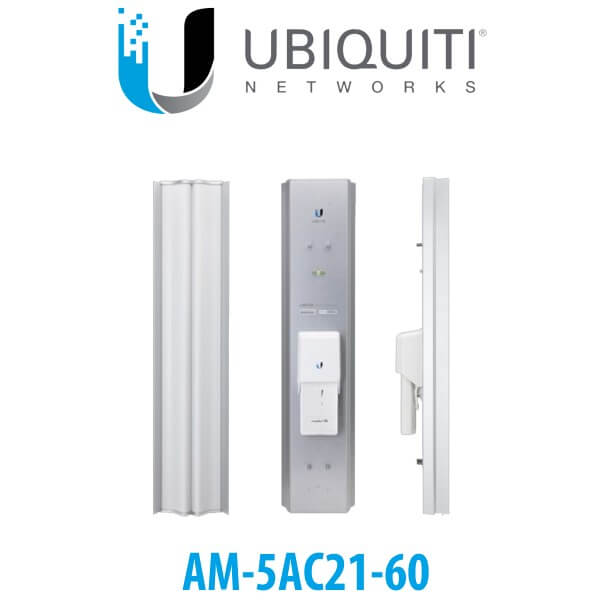

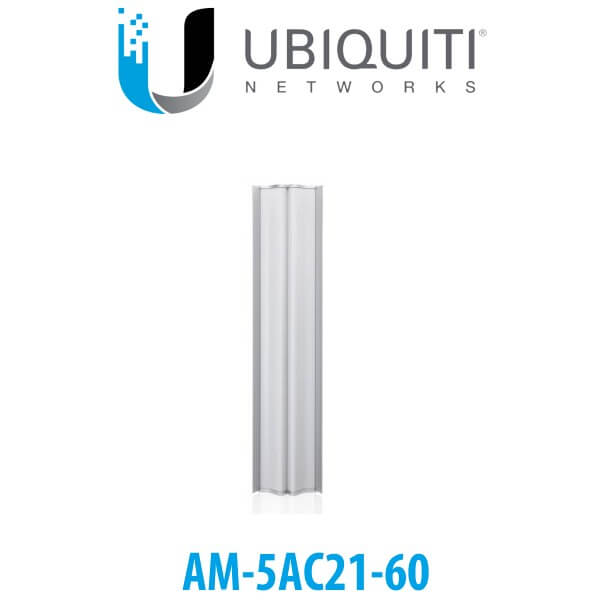

Ubiquiti AM-5AC21-60 airMAX Sector Antenna Dubai

The Ubiquiti AM-5AC21-60 Dubai is a sector antenna from Ubiquiti which supports their latest Radios using 802.11 AC (Rocket M5 AC PTMP – sold separately) to deliver high throughput to multiple clients.

The Ubiquiti AM-5AC21-60 Dubai is highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.

airMax AM-5AC21-60 Features:

• Breakthrough Performance – The Ubiquiti AM-5AC21-60 Dubai is highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower. Improved Signal-to-Noise Ratio (S/N or SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate). Due to innovative design, the airMAX ac Sector Antennas provide higher gain and superior beam performance for high-capacity, multipoint networks.
• Innovative Deflector Design – The Ubiquiti AM-5AC21-60 Dubai is designed to reject interference and provide enhanced scalability, higher gain, and superior beam performance in PtMP networks.
• Superior Noise Immunity
  Featuring reduced sidelobes and backlobes, the AM-5AC21-60 Dubai is engineered to reject noise interference in co‑location deployments.
• Industrial-Strength Construction
  Ubiquiti AM-5AC21-60 Dubai Antennas are designed with robust mechanical design for outdoor application use.
• Plug and Play Integration
  Every Ubiquiti AM-5AC21-60 Dubai Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket Base Station.

AM-5AC21-60 – Technical Specifications

Dimensions

• 750 x 173 x 78 mm
  (29.53 x 6.81 x 3.07″)

Weight

• 4.8 kg
  (10.58 lbs)

Frequency Range

• 5.10 – 5.85 GHz

Gain

• Gain 21 dBi

HPOL Beamwidth

• 60° (6 dBi)

VPOL Beamwidth

• 60° (6 dBi)

Electrical Beamwidth

• 4°

Electrical Downtilt

• 2°

Max. VSWR

• 1.5:1

Wind Survivability

• 200 km/h (125 mph)

Wind Loading

• 391 N @ 200 km/h
• (88 lbf @ 125 mph)

Polarisation

• Dual-Linear

Cross-Polarisation Isolation

• 25 dB Min.

ETSI Specification

• EN 302 326 DN2

Mounting

• Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included
