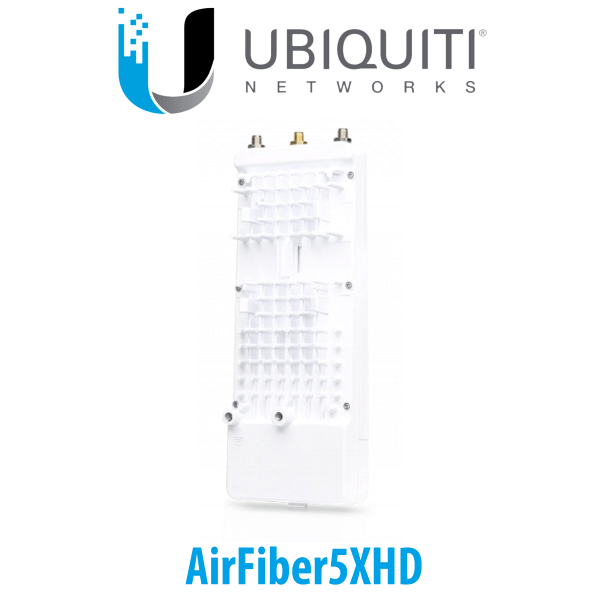

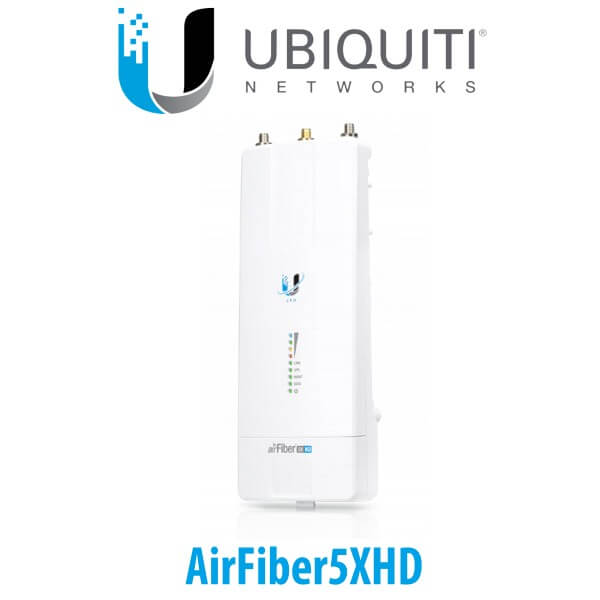

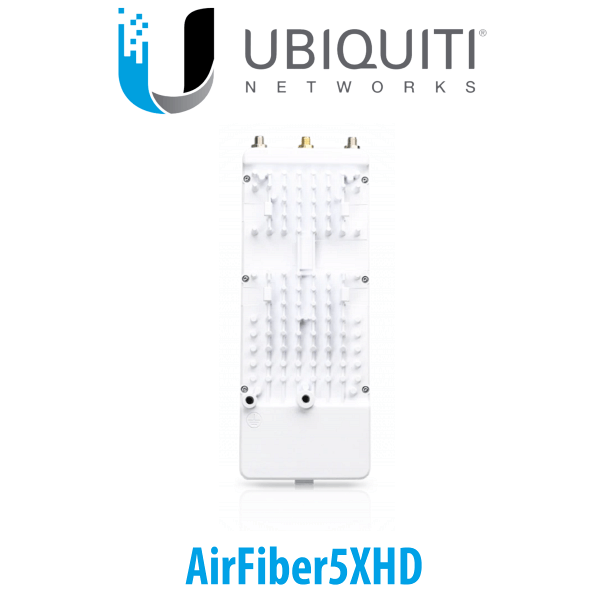

Ubiquiti AirFiber5XHD Wi-Fi Bridge Dubai
Designed for use in the 5 GHz frequency band, the new Ubiquiti AirFiber5XHD Dubai is Ubiquiti’s first LTU radio, offering greater channel bandwidths of up to 100 MHz, and more advanced RF components. Pair the AF-5XHD with a compatible Ubiquiti® airFiber X antenna or RocketDish antenna for a complete 5 GHz Point-to-Point (PtP) solution. An IP67 upgrade kit is included to provide enhanced protection to the Ubiquiti AirFiber5XHD Dubai from dust and water.
Key Features
- Frequency Range : 4.8 GHz – 6.2 GHz (Worldwide)
- Max. Conducted TX Power : 29 dBm (Dependent on Regulatory Region)
- Frequency Accuracy : < 2 ppm
- Channel Bandwidth :
– 10/20/30/40/50/60/80/100 MHz Selectable
– Programmable Uplink and Downlink Duty Cycles - Programmable Transmit Power
- Programmable Duty Cycle (GPS synchronized frames)
- Configurable GPS Synchronization
- Split TX and RX Frequency
- Split TX and RX Channel Bandwidth
- Local Security Management for SMBs
- Dual Redundant Gigabit Ethernet Ports with PoE
- OFDM and OFDMA Support
- Bluetooth Wireless Configuration
- AlignLock Antenna Aiming Guard
- User-Configurable Interference Mitigation
- Redundant Images for Fail-Safe Configuration
- Persistent Spectrum Analysis with Dedicated RX
- Ubiquiti AirFiber5XHD Dubai is equipped with wide Voltage Range, Enhanced Surge Protection
Technical Specs
| Specifications | |
|---|---|
| Dimensions | 224 x 82 x 48 mm (8.82 x 3.23 x 1.89″) |
| Weight | 0.35 kg (0.77 lb) |
| GPS | External, Magnetic Base |
| Operating Frequency | 5150-5250MHz 5740-5850MHz |
| Power Supply | 24V, 1A PoE Gigabit Adapter (Included) |
| Power Method | Dual Passive Power over Ethernet |
| Maximum Power Consumption | 12W |
| Supported Voltage Range | 20-50VDC |
| Mounting | airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (Included) |
| Certifications | FCC |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |

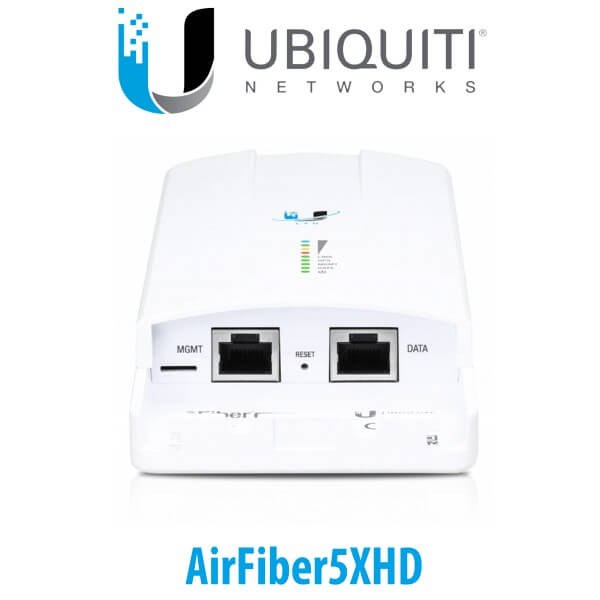

| INTERFACE | |
| Data Port | (1) 10/100/1000 Ethernet Port |
| Configuration Port | (1) 10/100/1000 Ethernet Port |
| SYSTEM | |
| Processor | LTU IC |
| Maximum Throughput | 1+ Gbps |
| Maximum Range | 200+ km (Throughput and range values may vary depending on the environmental conditions) |
| Encryption | 128-bit AES |
| Operating System | airOS F |
| RADIO FREQUENCY | |
| Max TX Power | 29 dBm (Dependent on Regulatory Region) |
| Frequency Accuracy | ± 2.5 ppm without GPS Synchronization ± 0.2 ppm with GPS Synchronization |
| Channel Bandwidth | 10/20/30/40/50/60/80/100 MHz Selectable |
