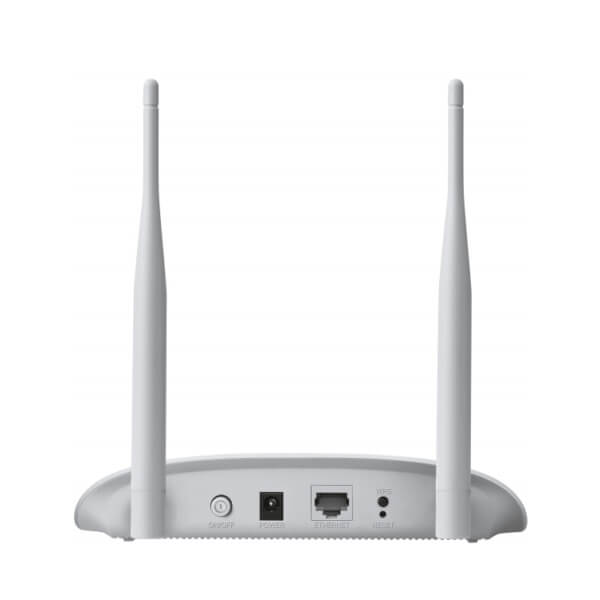

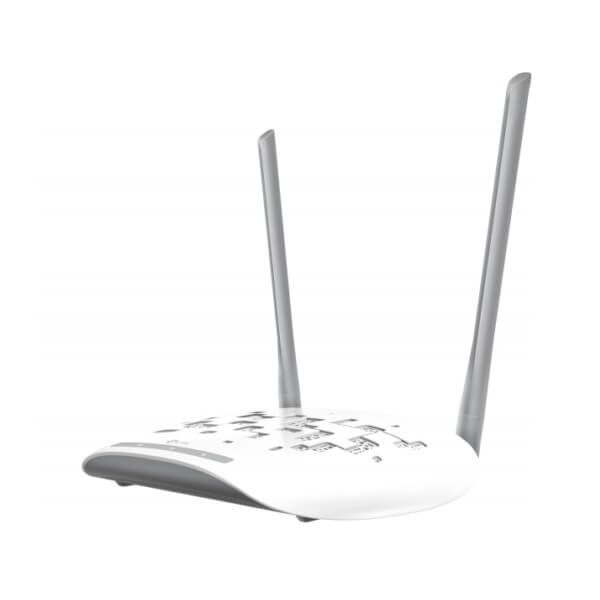

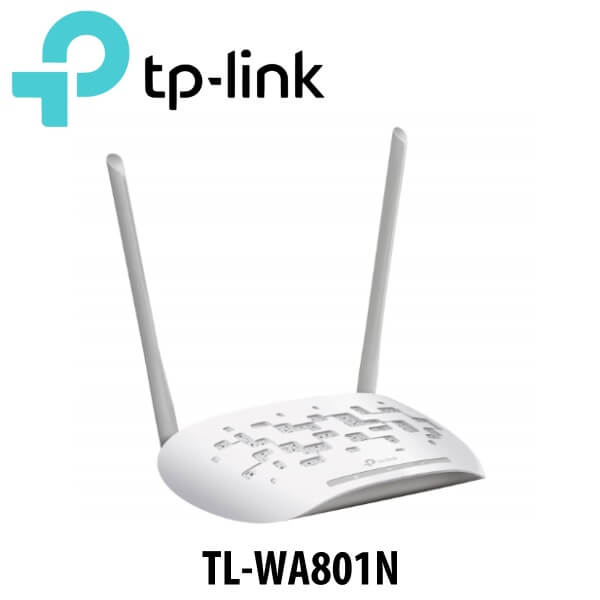

Tplink TL-WA801N Dubai

Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, Tplink TL-WA801N Dubai simultaneously works through two antennas to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment.

Ask for Quote & Get Low Price

Description

Tplink TL-WA801N Access Point Dubai

The Tplink TL-WA801N Dubai Wireless N Access Point  is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet-enabled devices such as game consoles, digital media adapters, printers, or network-attached storage devices to a wireless network. The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or any other applications that you may wish to use.

Features

Wireless N – Speed & Range

Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, Tplink TL-WA801N Dubai simultaneously works through two antennas to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not.

Multiple Operating Modes – Easy to Build WLAN

Supports multiple operation modes (Access Point, Multi-SSID, Client, Range Extender) to enable various wireless applications to give users a more dynamic and comprehensive experience when using their APs. Multiple operating modes also help you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.

Passive PoE Supported – More Flexible Deployment

The Tplink TL-WA801N Dubai is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.

Technical Specs

HARDWARE FEATURES
Interface
  • One 10/100M Ethernet Port(RJ45)
  • Support Passive PoE
Button
  • Power On/Off Button
  • WPS Button
  • Reset Button
External Power Supply 9VDC / 0.6A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.1 ×4.9× 1.4 in. (181 ×125 ×36mm)
Antenna Type 2*5dBi Detachable Omni Directional (RP-SMA)
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate
  • 11n : Up to 300Mbps(dynamic)
  • 11g : Up to 54Mbps(dynamic)
  • 11b : Up to 11Mbps(dynamic)
Reception Sensitivity
  • 270M : -68dBm@10% PER
  • 130M : -68dBm@10% PER
  • 108M : -68dBm@10% PER
  • 54M : -68dBm@10% PER
  • 11M : -85dBm@8% PER
  • 6M : -88dBm@10% PER
  • 1M : -90dBm@8% PER
Transmit Power <20dBm(EIRP)
Wireless Modes
  • AP Mode
  • Multi-SSID Mode
  • Client Mode
  • Repeater Mode (WDS/Universal)
  • Bridge with AP Mode
Wireless Functions
  • Enable/Disable Wireless Radio
  • WDS Bridge
  • MAC Address Filter
Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Quality of Service WMM
Management SNMP
Advanced Functions Up to 30 meters Passive PoE is supported
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • Wireless Access Point TL-WA801ND
  • 2 Detachable Omni directional antennas
  • Power supply unit
  • Passive PoE Power Injector
  • Resource CD
  • Quick Installation Guide
  • RJ-45 Ethernet Cable
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 10,
MAC OS, NetWare, UNIX or Linux.
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
