Description

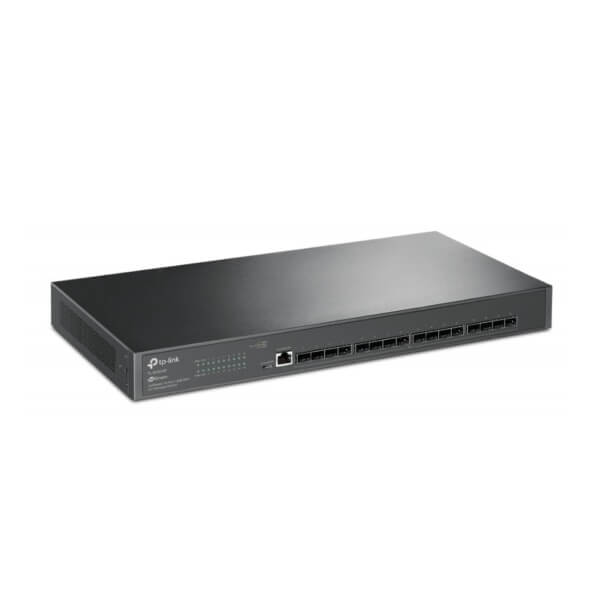

Tplink TL-SX3016F Network Switch Dubai
The Tplink TL-SX3016F Dubai can help you build and expand your lightning-fast network. This fully managed switch with full 16-port 10G fiber ports and 320 Gbps switching capacity is perfect for small, medium, and large business networks. It also meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.
Features
Full Fiber Switch with Lightning-Fast 10G
Build and expand your lightning-fast network with Tplink TL-SX3016F Dubai—a fully managed switch with full 16-port 10G fiber ports and 320 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.
Seamless Integration to Omada Cloud SDN
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

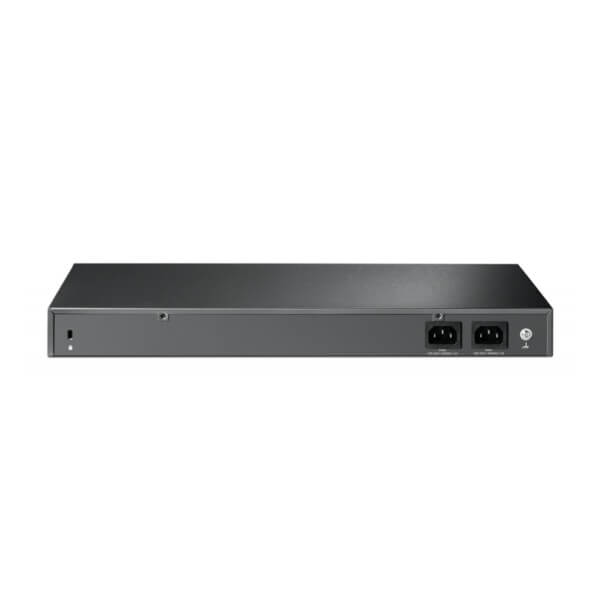

Dual Redundant Power Supplies
Two power supplies backing each other up make it an ideal choice for reliable networking architecture.
Advanced L3 Features
An abundance of L2+ and L3 features are supported on the Tplink TL-SX3016F Dubai managed switch to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to the valid user credentials.
Enterprise Level Features
A complete lineup of L2+ features is supported. 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are among the innovative features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reducing unnecessary traffic, while IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.
Advanced Quality of Service (QoS)
Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in situations of low bandwidth.
ISP Features
Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.
IPv6 Support
An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without the need to upgrade your hardware. Take advantage of features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover to enhance your network environment.
Technical Specs
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| System event log | Y |
| MIB support | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | None |
| SFP+ module slots quantity | 16 |
| Console port | RJ-45/Micro-USB |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x |
| 10G support | Y |
| Port mirroring | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| Head-of-line (HOL) blocking | Y |
| VLAN support | Y |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| MAC address table | 32000 entries |
| Switching capacity | 320 Gbit/s |
| Forwarding rate | 238.08 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Security | |
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| Security algorithms | HTTPS, SSH, SSH-2, SSL/TLS |
| BPDU filtering/protection | Y |
| IP-MAC-Port binding | Y |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Authentication type | AAA, TACACS+ |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support | Y |
| Design | |
| Rack mounting | Y |
| Product colour | Black |
| Certification | CE, FCC, RoHS |
| Power | |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 32.74 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | N |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Heat dissipation | 111.71 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Packaging data | |
| Cables included | AC |
| Quick start guide | Y |
