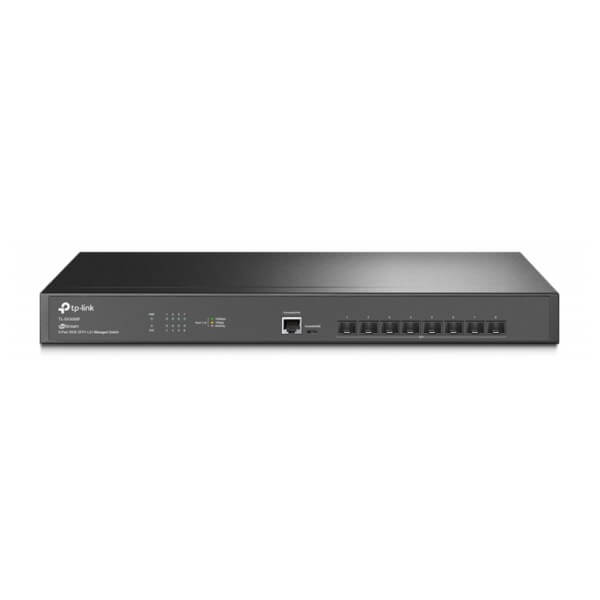

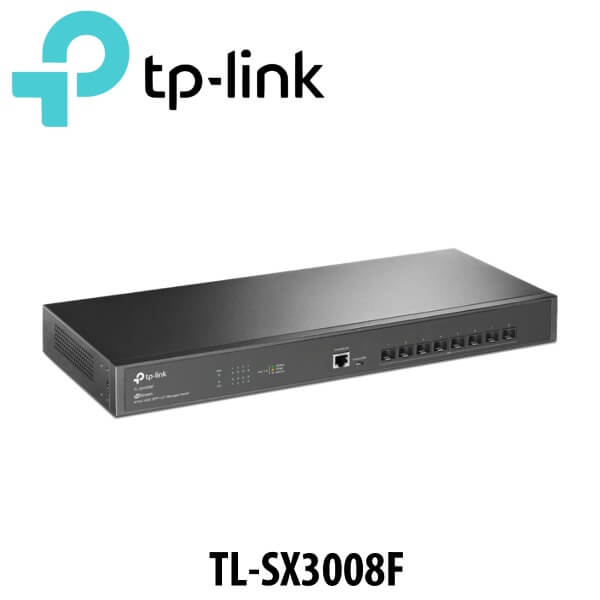

Tplink TL-SX3008F Managed Switch Dubai
The Tplink TL-SX3008F Dubai is designed to expand your network capacity so as to handle many high-bandwidth applications in small businesses or large-sized ones. It is a JetStream 8-Port SFP+ 10GE Managed Switch that comes equipped with eight 10G SFP+ ports, supporting a 160 Gb/s switching capacity and 119.04 Mbps forwarding rate to deliver exceptionally fast and reliable data transfers over fiber connections to compatible devices such as network storage and servers. Robust Layer 2 features include link aggregation for up to eight groups containing eight ports in addition to IGMP snooping and port mirroring. Your data is protected by a host of security features, including an Access Control List (ACL) and VLAN support. Use the Omada Software Defined Networking platform to manage your connected network devices remotely with the Omada app.
Features
Centralized Management
The Omada Software Defined Networking (SDN) platform on the Tplink TL-SX3008F Dubai integrates access points, switches, gateways, and other network devices to provide high efficiency, security, and reliability.
Omada App
Configure, manage, and monitor your network devices from almost anywhere in the world using your smartphone or tablet.
Access Control List
Allow or deny connected devices access to data with user-defined network rules.
Optimized Traffic
Configure the switch to prioritize voice and video traffic to help ensure clear calls and smooth media streaming.
VLAN Support
Group devices using VLAN to help improve network security and reduce data congestion.
Security Features
Protect your network from attacks and intrusions with IP-MAC-Port Binding, Access Control List, DoS Defend, Storm control, DHCP Snooping, 802.1x, Radius Authentication, and more.
ISP Features
Internet Service Providers benefit from features such as sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM, and Device Link Detection Protocol (DLDP) to quickly troubleshoot Ethernet links across the network.
IPv6 Support
Built-in IPv6 functionality such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, means that you won’t need to upgrade your hardware when you’re ready to set up a next generation network.
Quiet Operation
The metal chassis of the Tplink TL-SX3008F Dubai allows the switch to operate silently while dissipating heat.
Specifications
| Interfaces | |
| Ports |
|
| Protocols | |
| Layer Services Supported | Layer 2 Support, Layer 3 Support |
| Supported Protocols |
|
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 32K |
| VLAN Groups | 4000 |
| Security | |
| Security Features |
|
| Access Control List | 512 |
| Static Routes | 48 |
| Standards | |
| Supported IEEE Standards | 802.1ab, 802.1d, 802.1p, 802.1s, 802.1w, 802.1x, 802.3ad, 802.3x |
| Performance | |
| Forwarding Rate | 119.04 Mpps |
| Switching Bandwidth | 160 Gb/s (Non-Blocking) |
| Priority Queues | 8 |
| Electrical | |
| Power Draw | 15.46 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | Internal |
| Environmental | |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 90% |
| General | |
| Cooling System | Passive |
| Rack Form Factor | 1 RU |
| Dimensions | 17.3 x 7.1 x 1.7″ / 440 x 180 x 44Â mm |
| Packaging Info | |
| Package Weight | 5 lb |
| Box Dimensions (LxWxH) | 21 x 9.95 x 3.5″ |
