Description

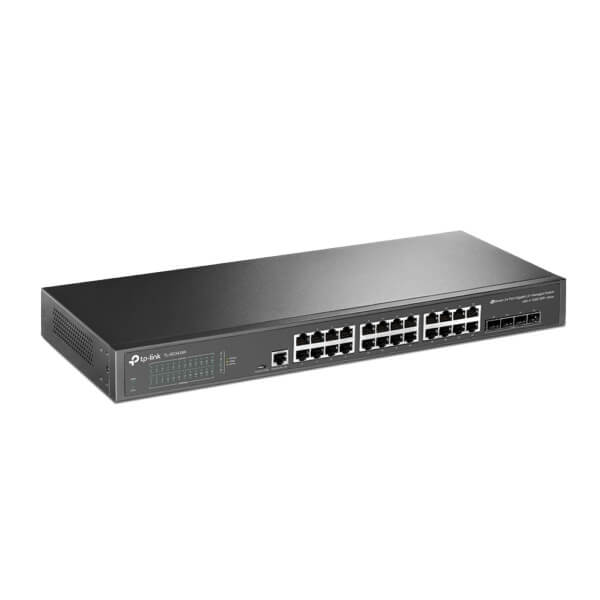

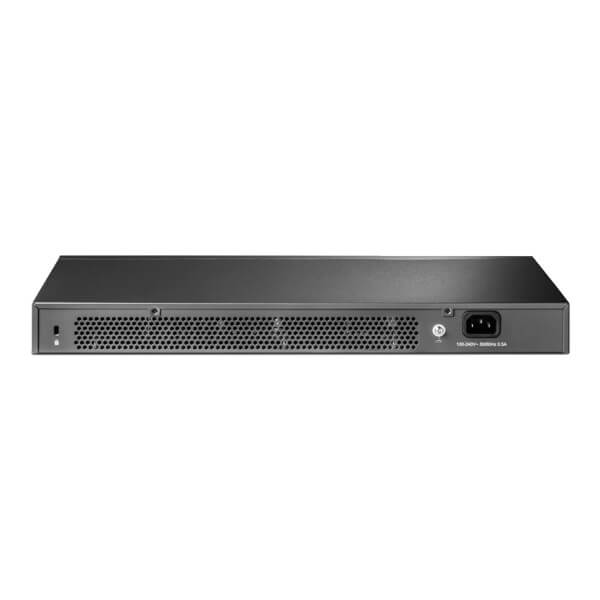

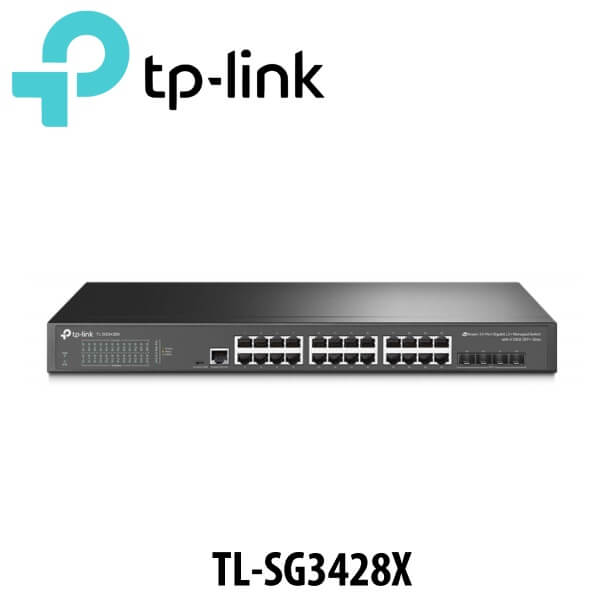

Tplink TL-SG3428X Network Switch Dubai
The Tplink TL-SG3428X Dubai by TP-Link is a 24 Port managed switch with 4 x 10G SFP+ interfaces for lightning-fast connections to servers and other switches, with backwards compatibility with 1G products allowing for long-term usability through your network upgrades.
The Tplink TL-SG3428X Dubai Managed switch is an ideal option for enterprise, campus or ISP networks, with high performance powerful L2 and L2+ features such as enterprise-level QoS, Static Routing, Advanced security strategies and a bundle of ISP features. An easy-to-use web management interface along with CLI, SNMP and Dual Image also allows for a quick setup and configuration.
The Tplink TL-SG3428X Dubai can be integrated into the Omada Software Defined Networking (SDN) platform along with the Omada Access Points and gateways, allowing for 100% centralized cloud management of the whole network from different sites to be controlled from a single user interface.
Features
- 10G Lightning-Fast Uplink – 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- Gigabit Speeds – 24× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices.
- Integrated into Omada SDN – Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management – Cloud access and Omada app for ultra convenience and easy management.
- Static Routing – Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies – IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications – L2/L3/L4 QoS and IGMP snooping.
- Standalone Management – Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Specifications
| Interface |
|
| Console | 1 RJ45 Console Port, 1 Micro-USB Console Port |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16K |
| Packet Buffer | 12 Mbit |
| Number of IP Interfaces | 16 |
| Number of Static Routers | 48 (IPv4, IPv6) |
| Jumbo Frame | 9 KB |
| Power Supply | 100-240 V AC~50/60 Hz |
| Max Power Consumption | 23.6 W (110V/60Hz) |
| Max Heat Dissipation | 80.52 BTU/h (110 V/60 Hz) |
| Dimensions (W x D x H) | 440 × 180 × 44 mm |
| Fan Quantity | Fanless |
| Installation | Desktop or Rack Mountable |
| Operating Temperature | 0 °C to 45 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operation Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Certification | CE, FCC, RoHS |
