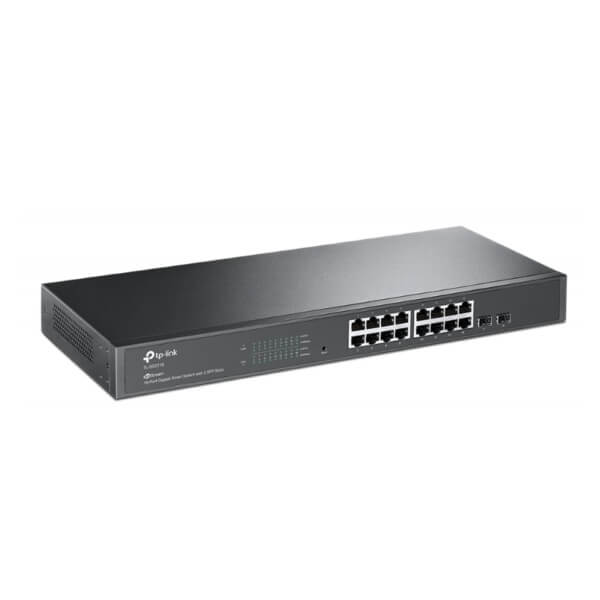

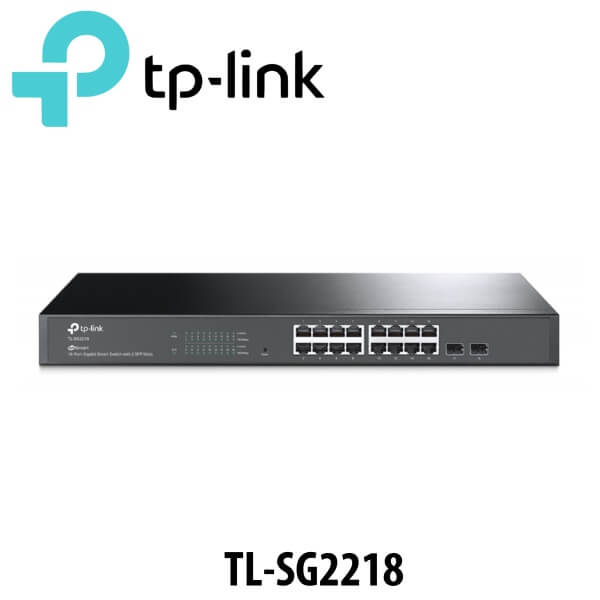

Tplink TL-SG2218 Network Switch Dubai
The Tplink TL-SG2218 Dubai is a managed rack-mountable switch which features 16 Gigabit Ethernet ports that allow you to quickly connect computers, printers, and other wired Ethernet devices. There are also two Gigabit SFP ports for high-speed fiber uplinks. With its 36 Gb/s switching capacity and 26.8 Mpps forwarding rate, the TL-SG2218 provides smooth data transfers.
The broad range of L2+ and L3 features of the Tplink TL-SG2218 Dubai allows you to configure and manage your network to best suit your business’s needs. A host of security features includes an Access Control List (ACL), Storm Control, and DHCP Snooping to help defend your network against threats. Use the Omada Software Defined Networking platform to manage your connected network devices remotely with the Omada app.
Features
Centralized Management
The Omada Software Defined Networking (SDN) platform on the Tplink TL-SG2218 Dubai integrates access points, switches, gateways, and other network devices to provide high efficiency, security, and reliability. Configure, manage, and monitor your network using a single interface, from almost anywhere in the world, through the cloud portal interface and Omada smartphone and tablet app.
Security Features
Protect your network from attacks and intrusions with IP-MAC-Port Binding, Access Control List, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1x, Radius Authentication, and more.
L2+ and L3 Support
Tplink TL-SG2218 Dubai has extensive L2+ and L3 features which help to build a highly scalable and robust network for businesses, campuses, and ISPs. L3 features can only be configured in standalone mode.
Enterprise-Level Features
The complete lineup of L2+ features include 802.1Q VLAN, port mirroring, Link Aggregation Control Protocol, and 802.3x flow control.
Static Routing
Tplink TL-SG2218 Dubai supports Static routing which segments the network and internally routes traffic through the switch for improved efficiency.
Optimized Video & Voice Traffic
Advanced IGMP snooping cuts unnecessary traffic by intelligently forwarding multicast streams to the appropriate subscribers, while IGMP throttling and filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more to help ensure smooth broadcasts and clear calls, even when bandwidth is limited.
ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are included with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links. ISP features can only be configured in standalone mode.
IPv6 Support
IPv6 functions of the Tplink TL-SG2218 Dubai such as dual IPv4/IPv6 stack, MLD snooping, IPv6 ACL, DHCPv6 snooping, IPv6 interface, Path Maximum Transmission Unit (PMTU) discovery, and IPv6 neighbor discover help to ensure that your network is ready for the Next Generation Network (NGN) without having to upgrade your hardware.
Technical Specs
| Interfaces | |
| Ports |
|
| Protocols | |
| Layer Services Supported | Layer 2 Support, Layer 3 Support |
| Supported Protocols |
|
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 8K |
| VLAN Groups | 4000 |
| Security | |
| Security Features |
|
| Static Routes | 48 |
| SNMP Support | 1, 2c, 3 |
| Standards | |
| Supported IEEE Standards | 802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3ad, 802.3x |
| Performance | |
| Forwarding Rate | 26.8 Mpps |
| Switching Bandwidth | 36 Gb/s |
| Priority Queues | 8 |
| Electrical | |
| Power Draw | 12.3 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | Internal |
| Environmental | |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 90% |
| General | |
| Cooling System | Passive |
| Rack Form Factor | 1 RU |
| Dimensions | 17.3 x 7.1 x 1.7″ / 440 x 180 x 44Â mm |
| Packaging Info | |
| Package Weight | 5.4 lb |
| Box Dimensions (LxWxH) | 20.8 x 9.9 x 3.1″ |
