Description

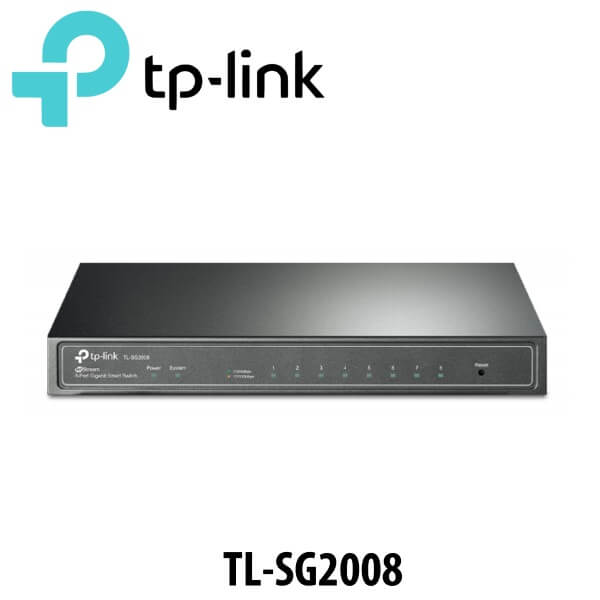

Tplink TL-SG2008 Network Switch Dubai
With a variety of Layer 2 network features, the Tplink TL-SG2008 Dubai 8-Port Gigabit Smart Switch from TP-Link gives network administrators complete control over a variety of network functions. With loop back detection, cable diagnostics and IGMP snooping, this switch is capable of ensuring traffic is managed efficiently and effectively. The eight Gigabit Ethernet ports offer a fast, reliable wired connection while the advanced QoS (Quality of Service) feature set makes it simple to designate priority traffic to ensure bandwidth intensive tasks have the necessary network resources.
Features
Layer 2 Features
- Static Link Aggregation/ Link Aggregation Control Protocol (LACP)
- Up to 512 VLANs simultaneously(out of 4K VLAN IDs)
- STP/RSTP/MSTP
- IGMP Snooping
Quality of Service
- 4 priority queues
- Support IEEE 802.1P
- DSCP QoS
- Rate limit feature
Security Strategies
- Access Control List (L2~L4 ACL)
- Port Security
- Storm Control
- SSL and SSH encryptions
Management
- Web-based GUI
- Command Line Interface (Telnet)
- SNMP v1/v2c/v3
- RMON (1, 2, 3, 9 group)
Technical Specs
| Interfaces | |
| Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| Protocols | |
| Supported Protocols |
|
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9,216 Bytes |
| MAC Address Table Size | 8K |
| VLAN Groups | 512 |
| VLAN IDs | 4000 |
| Security | |
| Security Features | Storm Control |
| Standards | |
| Supported IEEE Standards | 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.3ab, 802.3ad, 802.3i, 802.3u, 802.3x |
| Performance | |
| Forwarding Rate | 11.9 Mpps |
| Switching Bandwidth | 16 Gb/s |
| Priority Queues | 4 |
| Computer | |
| OS Compatibility |
|
| Electrical | |
| Power Draw | 6.42 W (Active) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 90% |
| Certifications | RoHS, as per Manufacturer |
| General | |
| Cooling System | Passive |
| Dimensions | 8.2 x 4.9 x 1″ / 20.9 x 12.6 x 2.6Â cm |
| Packaging Info | |
| Package Weight | 2.1 lb |
| Box Dimensions (LxWxH) | 11.024 x 8.898 x 2.677″ |
