Description

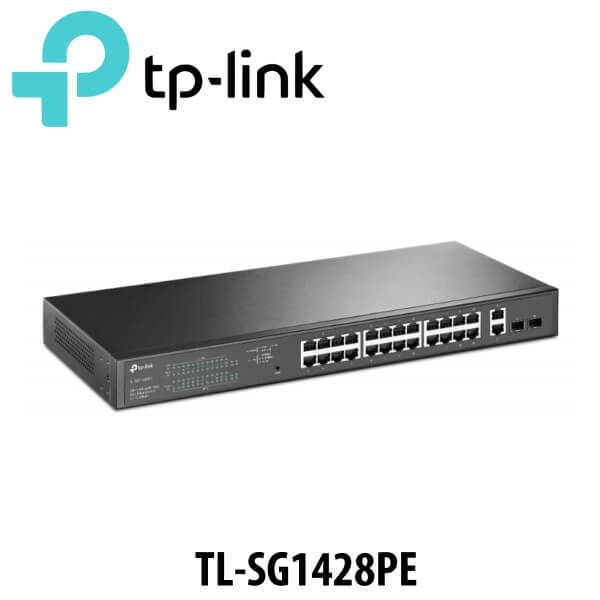

Tplink TL-SG1428PE Network Switch Dubai
The Tplink TL-SG1428PE Dubai is fully compatible with PoEÂ devices, such as IP cameras, access points, and IP phones. It also works with non-PoEÂ wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Features
Multiple Application Scenarios
The Tplink TL-SG1428PE Dubai is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.
QoS for a Lag-Free Experience
Ensures smooth traffic for latency-sensitive applications, such as voice and video.
IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
VLAN for Security
Helps to create a network with higher security and better overall performance by dividing the network into smaller groups.
Making Management Easy
Tplink TL-SG1428PE Dubai offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Intelligent Power Management to Prevent Power Overload
Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.
Great Compatibility with PD Detection
Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design of the Tplink TL-SG1428PE Dubai ensures the wide operating temperature (0–50℃) with reliability.
Technical Specifications
HARDWARE FEATURES | |
---|---|
Standards and Protocols |
|
Interface |
|
Network Media |
|
Fan Quantity | 2 Fans |
Physical Security Lock | Yes |
Power Supply | 100-240V AC, 50/60 Hz |
PoE+ Ports(RJ45) |
|
Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm) |
Mounting | Rack Mountable |
Max Power Consumption |
|
Max Heat Dissipation |
|
PERFORMANCE | |
Switching Capacity | 56 Gbps |
Packet Forwarding Rate | 41.7 Mbps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1 Mbit |
Jumbo Frame | 9 KB |
SOFTWARE FEATURES | |
Quality of Service |
|
L2 Features |
|
VLAN |
|
Management |
|
Transmission Method | Store-And-Forward |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents |
|
Environment |
|
