Description

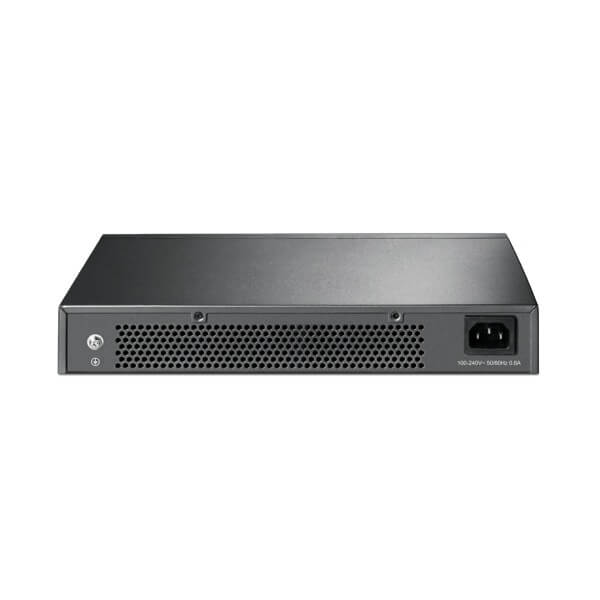

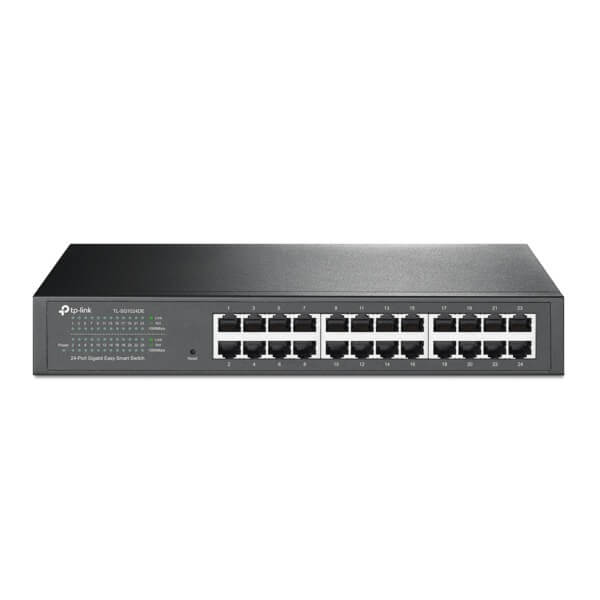

Tplink TL-SG1024DE Network Switch Dubai
The Tplink TL-SG1024DE Dubai 24-port gigabit easy smart switch is an ideal upgrade from an unmanaged switch, designed for small and medium business networks that require simple network management. Network administrators can effectively monitor traffic via port mirroring, loop prevention and cable diagnostics features. To optimize traffic on your business network, TL-SG1024DE offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the Tplink TL-SG1024DE Dubai can save up to 40% of power consumption, making it an eco-friendly solution for your business network.
Features
- 24 10/100/1000 Mbps ports provide instant large file transfers
- Innovative energy-efficient technology reduces power consumption by up to 40%
- IEEE 802.3x flow control provides reliable data transfers
- 10K Jumbo frame improves performance of large data transfers
- Effective network monitoring via Port mirroring, loop prevention and cable diagnostics
- Port and tag-based QoS enable smooth latency-sensitive traffic
- Abundant VLAN features improve network security via traffic segmentation
- IGMP snooping optimizes multicast applications
Technical Specs
|
Expansion / Connectivity |
|
|---|---|
| Interfaces | 24 x 1000Base-T RJ-45 |
Power |
|
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
|
Miscellaneous |
|
| Width | 29.4 cm |
| Depth | 18 cm |
| Height | 4.4 cm |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC |
|
General |
|
| Interfaces | Gigabit Ethernet |
| Jumbo Frame Support | 10240 bytes |
| Performance | Switching capacity: 48 Gbps ¦ Forwarding performance: 35.7 Mpps |
| Device Type | Switch – 24 ports |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 |
| MAC Address Table Size | 8K entries |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, fanless, loop prevention |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 801.1p |
|
Dimensions & Weight |
|
| Width | 29.4 cm |
| Depth | 18 cm |
| Height | 4.4 cm |
|
Environmental Parameters |
|
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 – 90% (non-condensing) |
