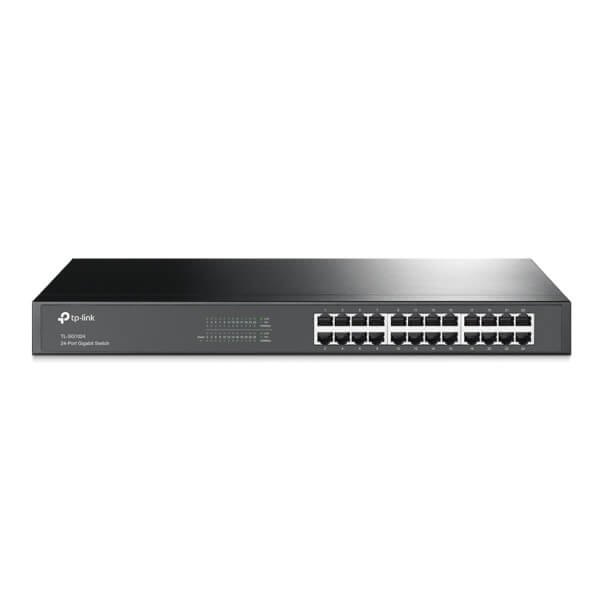

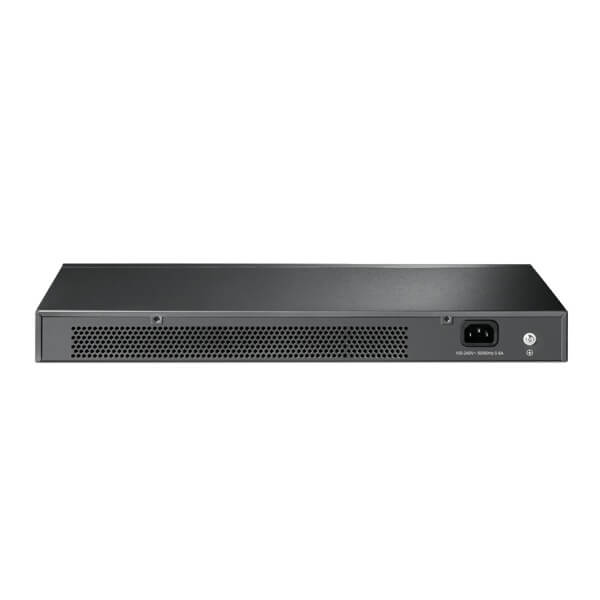

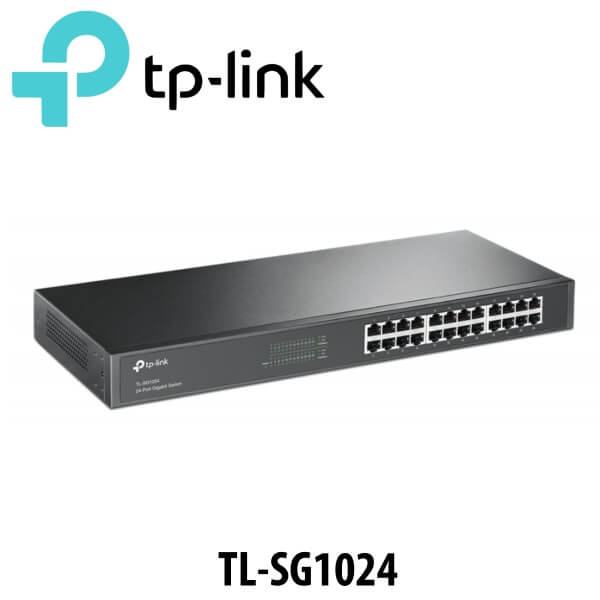

Tplink TL-SG1024 Network Switch Dubai
The Tplink TL-SG1024 Dubai 24-Port Gigabit Rackmount Switch from TP-Link comes in an energy efficient configuration allowing you to save up to 25% over traditional network switches. With a variety of IEEE standards, including 802.3i, 802.3u, 802.3ab, and 802,3x, this switch can be easily configured to meet a variety of needs. 802.3 compatibility is a general collection of IEEE standards used within a local area network when connecting hubs, switches, and routers. IEEE 802.3u, otherwise known as Fast Ethernet, is a standard that carries traffic at the normal rate of 100 Mbps against the original Ethernet speed of 10 Mbps. The IEEE 802.3x standard refers to a flow control standard allowing you to control traffic throughout the switch.
With 24 x 10/100/1000 Mbps RJ-45 ports, you can connect a number of devices to the Gigabit Switch to allow for multiple devices to connect to the Internet. The 48 Gbps switching capacity provides for ultra fast data transfer speeds along with the 8K MAC address table giving you the necessary space to store a large number of MAC addresses. Auto MDI/MDIX eliminates the need for crossover cables allowing for a seamless connection.
The Tplink TL-SG1024 Dubai 24-Port Gigabit Rackmount Switch operates using 100-240 VAC at 50/60 Hz and consumes a maximum of 14.6W. It has a packet forwarding rate of 35.7 Mbps and includes a power cord, rackmount kits, and rubber feet. It is protected by a limited 5-year warranty.
Features
- Energy-efficient technology saves power up to 25%
- 100% Data filtering rate eliminates all error packets
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
- 48 Gbps Switching Capacity
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Support the port N-Way Auto-Negotiation, Store, and Forward
- Compact size design for desktops, also rack-mountable
- The plug and play design helps to simplify installation
Technical Specs
| Interfaces | |
| Ports | 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| Protocols | |
| Supported Protocols | Auto-MDIX/MDI |
| Transmission Method | Store-and-Forward |
| Jumbo Frames Support | 10,000 Bytes |
| MAC Address Table Size | 8K |
| Standards | |
| Supported IEEE Standards | 802.3ab, 802.3i, 802.3u, 802.3x |
| Performance | |
| Forwarding Rate | 35.7 Mpps |
| Switching Bandwidth | 48 Gb/s |
| Computer | |
| OS Compatibility |
|
| Electrical | |
| Power Draw | 14.6 W (Active) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 90% |
| Certifications | RoHS |
| General | |
| Cooling System | Passive |
| Dimensions | 17.3 x 7.1 x 1.7″ / 44 x 18 x 4.4Â cm |
| Packaging Info | |
| Package Weight | 5 lb |
| Box Dimensions (LxWxH) | 20.8 x 10 x 3.1″ |
