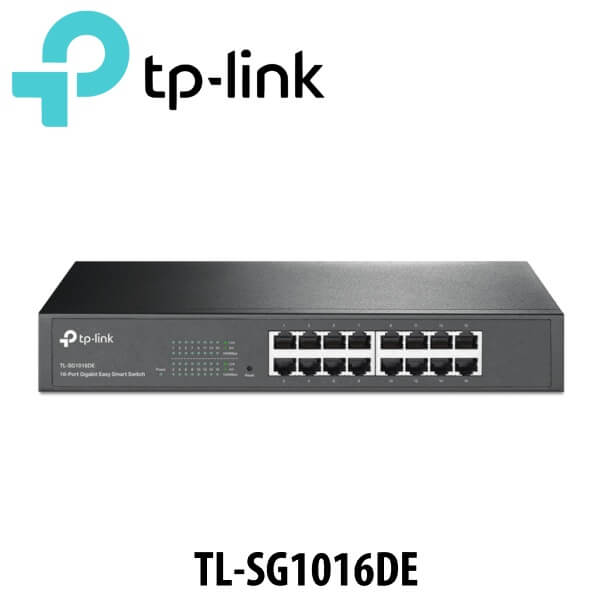

Tplink TL-SG1016DE Dubai

This new generation of Tplink TL-SG1016DE Dubai 16-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network’s capacity with much less power.

Ask for Quote & Get Low Price

Description

Tplink TL-SG1016DE Network Switch Dubai

The Tplink TL-SG1016DE Dubai 16-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, Tplink TL-SG1016DE Dubai offers Port Priority/802.1P Priority and DSCP QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG1016DE can reduce power consumption, making it an eco-friendly solution for your business network.

Features

Effective Management

TP-LINK’s Gigabit Easy Smart switch, Tplink TL-SG1016DE Dubai offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG1016DE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority and Port/ 802.1p/ DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG1016DE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG1016DE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation of Tplink TL-SG1016DE Dubai 16-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network’s capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

  • Power down Idle Ports
    • When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The Tplink TL-SG1016DE Dubai can automatically detect the link status of each port and reduce the power consumption of idle ports.
  • Power Budget According to Cable Length
    • Ideally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The Tplink TL-SG1016DE Dubai analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

Easy to Use

Tplink TL-SG1016DE Dubai is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

Technical Details

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface
  • 16 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100 STP (maximum 100m)
  • 1000BASE-T : UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Dimensions (W X D X H) 11.6*7.1*1.7 in. (294*180*44 mm)
Power Consumption Maximum : 11.73W (220V/50Hz)PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8K
Packet Buffer Memory 512KB
Jumbo Frame 9KBSOFTWARE FEATURES
Quality of Service
  • Support Port-based/802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control
L2 Features
  • IGMP Snooping
  • Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
VLAN Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)MTU/Port/Tag VLAN
Transmission Method Store-And-Forward OTHERS
Certification FCC, CE, RoHS
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux.
Environment
  • Operating Temperature : 0°C~40°C (32°C~104°C)
  • Storage Temperature : -40°C~70°C (-40°C~158°C)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
Number of Ports 16
Switch Form Factor Rackmount
Port Speed 1000 Mbps
Uplink Port Type None
Power over Ethernet No
QoS Yes
Switch Type Smart Managed
Switch Layer L2
