Description

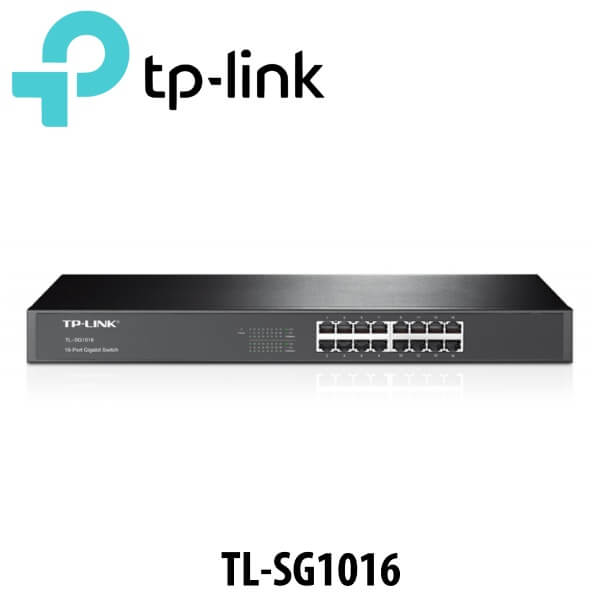

Tplink TL-SG1016 Network Switch Dubai
The Tplink TL-SG1016 Dubai Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
Features
16-port Gigabit switch TP-Link TL-SG1016
Tplink TL-SG1016 Dubai with 16 ports is a gigabit desktop switch designed for installation in a rack. The switch allows you to easily increase the Ethernet throughput for gigabit connections. The 16 ports are equipped with MDI/MDIX auto crossover function, which allows for quick installation without the need for crossover cables. The TLSG1016 Switch is environmentally friendly as it is based on the Green TP-Link environmentally friendly technology.
Business performance of the switch
Tplink TL-SG1016 Dubai uses non-blocking architecture for data transfer efficiency. Thanks to the MAC address array with the size 8 K it is possible to use the device in large networks. Whereas the IEEE802.3x bandwidth control support for transmission in full duplex and the backpressure function for transmission in half duplex ensures smooth network traffic and reliable data transmission.
Green TP-Link
Tplink TL-SG1016 Dubai uses Green TP-Link technology, which effectively increases network capacity while saving energy. The switch automatically adjusts power consumption depending on connection status and cable length. The switch complies with the European Directive RoHS limiting the use of equipment made of environmentally hazardous materials.
Easy to use
Thanks to the automatic functions of the Tplink TL-SG1016 Dubai switch, installation of the device does not require configuration. The MDI/MDIX function eliminates the need for crossover cables or uplink ports, and automatic connection negotiation detects the speed of the connected device on each port, ensuring transmission performance at the highest level. The compact desktop enclosure saves space and is conveniently mounted in a rack. Also helpful are LEDs informing about the operating status of the device.
Technical Specs
| Features / filters | |
| LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
| Number of LAN ports | 16x [10/100/1000M (RJ45)] |
| AC input frequency | 50/60 |
| AC input voltage | 100 – 240 |
| Access Control List (ACL) | Y |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e |
| Certification | FCC, CE, RoHS |
| Cloud-managed | Y |
| Configuring Location Settings (CLI) | Y |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Depth | 180 |
| DHCP features |
|
| Ethernet LAN data rates | 10,100,480,800,1000 |
| Flow control support | Y |
| Forwarding rate | 23.8 |
| Full duplex | Y |
| Head-of-line (HOL) blocking | Y |
| Heat dissipation | 31.6 |
| Height | 44 |
| IGMP snooping | Y |
| IP routing | Y |
| Jumbo frames | 10000 |
| Jumbo frames support | Y |
| LED indicators | Y |
| MAC address table | 8000 |
| Management | No |
| Networking standards | IEEE 802.1p,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| Operating relative humidity (H-H) | 10 – 90 |
| Operating temperature (T-T) | 0 – 40 |
| Package depth | 250 |
| Package height | 80 |
| Package width | 528 |
| Password protection | Y |
| Policy-based routing | Y |
| Port mirroring | Y |
| Power (W) | Without PoE |
| Power consumption (typical) | 9.26 |
| Product colour | Black |
| Quality of Service (QoS) support | Y |
| Rack mounting | Y |
| Security algorithms | 802.1x RADIUS |
| Static port security | Y |
| Storage relative humidity (H-H) | 5 – 90 |
| Storage temperature (T-T) | -40 – 70 |
| Store-and-forward | Y |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 32 |
| Switching layer | 2 |
| System event log | Y |
| Traffic classification | Y |
| Traffic shaping | Y |
| Type of case | Rack (1U), Desktop, |
| User operation log | Y |
| VLAN support | Y |
| Web-based management | Y |
| Width | 440 |
| Equipment features | |
| Standards and protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Ports |
|
| Network cabling |
|
| Fanless | Yes |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | Max. 13.3 W (220 V/50 Hz) |
| Dimensions (S x G x W) | 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 inches) |
| Installation | Rack Mountable |
| Max. energy consumption | 9.26 W (220 V/50 Hz) |
| Amount of heat generated | 31.60 BTU/h |
| Performance | |
| Switching efficiency | 32 Gb/s |
| Speed of packet redirection | 23.8 Mp/s |
| MAC address plate | 8 K |
| Jumbo frames | 10 KB |
| QoS | 802.1p/DSCP QoS |
| Green technology | Innovative Green TP-LINK technology saving up to 15% energy |
| Switching architecture | Store-and-Forward |
| Other | |
| Certificates | FCC, CE, RoHS |
| Package contents |
|
| System requirements | Microsoft Windows XP, Vista, Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux. |
| Working environment |
|
