Description

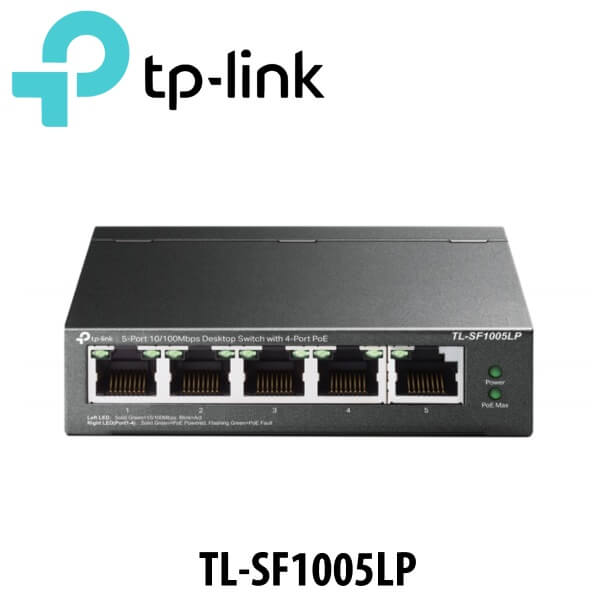

Tplink TL-SF1005LP Network Switch Dubai
The Tplink TL-SF1005LP Dubai switch comes equipped with five 10/100 Mb/s Ethernet ports, four of which are 802.3af PoE-compliant. This means you can power a variety of PoE-compliant devices such as access points and IP phones directly from the switch, and with a power budget of up to 67W there is enough power to go around. Should connected devices exceed that power budget, this switch is capable of shutting power off to network ports starting with port 4. Once installed, connected clients can take advantage of bandwidth up to 1 Gb/s and a 2K Mac Address table to ensure optimal network performance.
With no installation or configuration required, the Tplink TL-SF1005LP Dubai 5-Port 10/100 Mb/s PoE-Compliant Unmanaged Switch from TP-Link makes it easy to begin connecting additional Ethernet-enabled devices to your network.
Features
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance—Up to 250 m Transmissions
With extend mode, the PoE transmission distance of the Tplink TL-SF1005LP Dubai reaches up to 250 m**—perfect for IP Camera deployment in large areas.
Priority Video-Quality Guaranteed
Tplink TL-SF1005LP Dubai is integrated with quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of Tplink TL-SF1005LP Dubai are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.
Technical Specs
| HARDWARE FEATURES | |
|---|---|
| Interface |
|
| Network Media |
|
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output : 53.5 V DC / 0.81 A) |
| Packet Forwarding Rate | 0.744 Mpps |
| PoE Ports (RJ45) |
|
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1 Gbps |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (100×98×25 mm) |
| Max Power Consumption |
|
| Max Heat Dissipation |
|
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions |
|
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents |
|
| Environment |
|
