Description

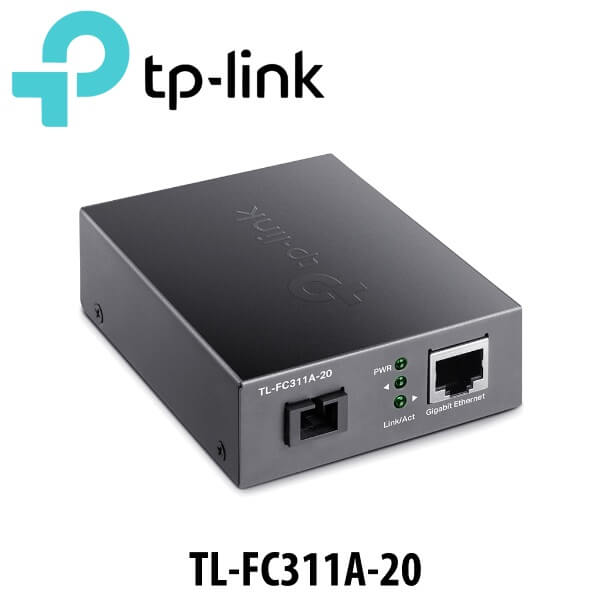

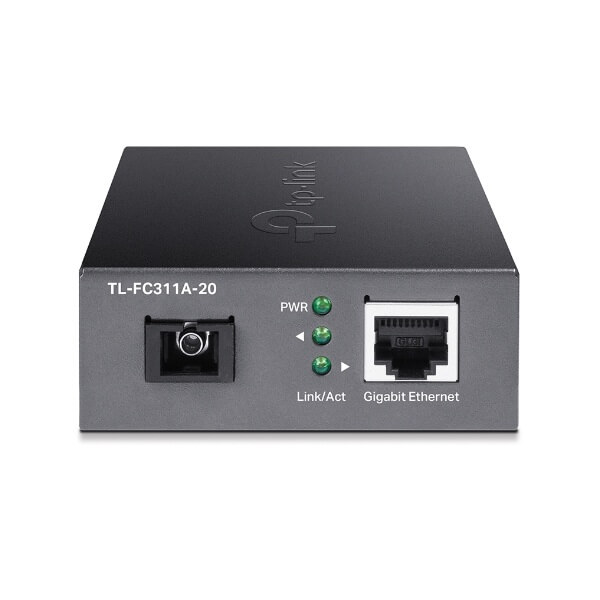

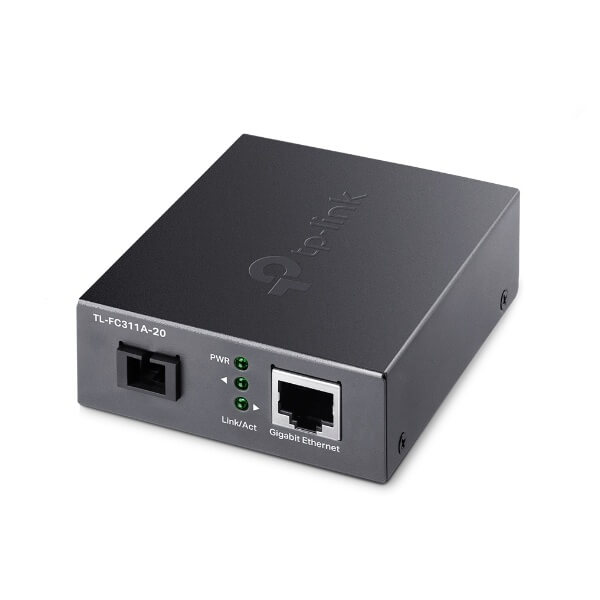

Tplink TL-FC311A20 Gigabit Media Converter Dubai
The Tplink TL-FC311A20 Dubai is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
The Tplink TL-FC311A20 Dubai adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-20 is one of the products that can cooperate with TL-FC311A-20.
Besides, this media converter can be used as a standalone device (no rack required) or used with Tplink TL-FC311A20 Dubai rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Quick Features
- Tplink TL-FC311A20 Dubai is designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa.
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.
- Supports auto MDI/MDIX for TX port.
- The Tplink TL-FC311A20 Dubai adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance up to 20 km with only one single-mode fiber, which saves half of the cable deployment cost for customers compares to dual-fiber deployment.
- Wavelength: Tx 1550 nm, Rx 1310nm; Compatible TP-Link model: TL-FC311B-20, TL-SM321B-2 and TL-FC311B-2 (Only under 2km transmission).
Technical Specifications
| NETWORK | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| ENVIRONMENT | |
| Operating Temperature | 0ËšC to 50ËšC (32ËšF to 122ËšF) |
| Storage Temperature | -40ËšC to 70ËšC (-40ËšF to 158ËšF) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
| Interface |
|
| Network Media |
|
| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions ( W x D x H ) | 3.7×2.9×1.1 in (94.5×73.0×27.0 mm) |
| Wave Length | 1550 nm TX, 1310 nm RX |
| MEDIA CONVERTER & MODULE | |
| Fiber Type | 9/125 μm single-mode fiber |
