Tplink MC110CS Dubai

The Tplink MC110CS Dubai supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Ask for Quote & Get Low Price

Description

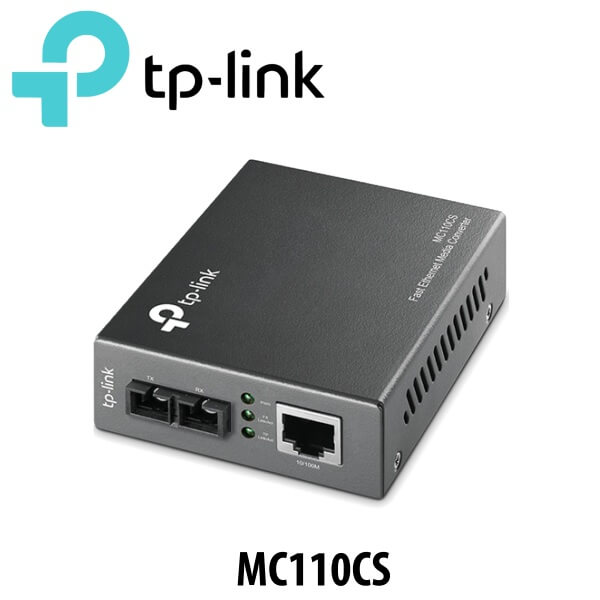

Tplink MC110CS Media Converter Dubai

The Tplink MC110CS Dubai is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media and vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The Tplink MC110CS Dubai supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 12.4 miles (20km).

Features

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Ranges up to 20km (12.4 miles) transmission distance with 9/125 μm single-mode fiber

Technical Specs

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function
  • Half/Full-Duplex transfer mode for FX port
  • Full Duplex Flow Control (IEEE 802.3x)
  • Half Duplex Flow Control (Backpressure)
  • Extends fiber distance up to 20km (12.4 miles)
Ports
  • 1 100M dual SC/UPC port
  • 1 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length 1310nm
Network Media 10BASE-T
  • UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T
  • UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX Single-mode Fiber
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7 × 2.9 × 1.1 in.
(95 × 73 × 27 mm)
Power Supply External power supply
Max Power Consumption 2.4W
Safety & Emission FCC, CE, RoHS
Package Contents
  • Media Converter MC110CS
  • Power Adapter
  • Installation Guide
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
