Description

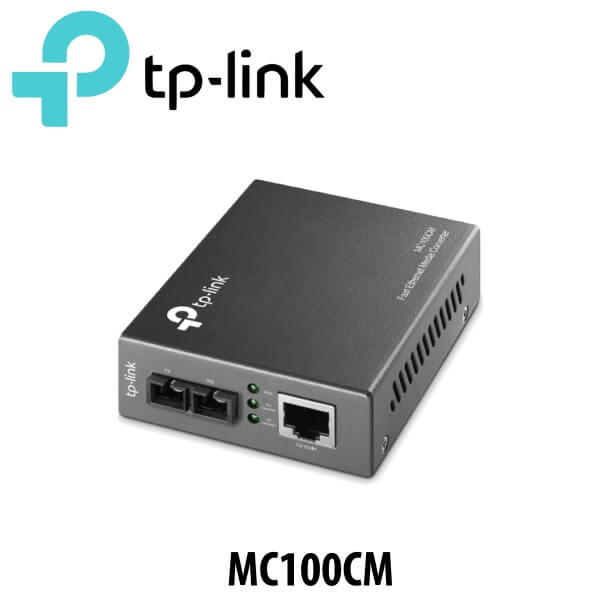

Tplink MC100CM Media Converter Dubai
The Tplink MC100CM Dubai is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the Media Converter is designed using multi-mode fiber cable with an SC-Type terminal for physical connections.
The Tplink MC100CM Dubai Media Converter supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The Media Converter will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).
Quick Features
- Tplink MC100CM Dubai complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- The Tplink MC100CM extends fiber distance up to 1.2 miles (2km)
Technical Specs
| Brand | tp-link |
|---|---|
| MEDIA CONVERTER & MODULE | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Basic Function |
|
| Ports |
|
| Wave Length | 1310nm |
| Network Media 10BASE-T |
|
| Network Media 100BASE-T |
|
| Network Media 100BASE-FX | Multi-mode Fiber |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm) |
| Power Supply | External power supply |
| Max Power Consumption | 2.4W |
| Safety & Emission | FCC, CE, RoHS |
| Environment |
|
