Tplink EAP235-Wall Dubai

The Tplink EAP235-Wall Dubai is an Omada wireless MU-MIMO access point. That means the access point is compatible with Omada and that you can control it via the Omada app.

Add to quote

Ask for Quote & Get Low Price

Description

Tplink EAP235-Wall Access Point Dubai

The Tplink-EAP235-Wall-Dubai is an Omada wireless MU-MIMO access point. That means the access point is compatible with Omada and that you can control it via the Omada app. To separate your work life and private life, you can also easily create a guest network. You don’t need to lay and extra network cable. The Tplink-EAP235-Wall-Dubai access point supports Power over Ethernet. It also has 3 Ethernet ports for your IP phone or IP cameras, for example. Note : This access point only works with Power over Ethernet. You need a PoE adapter or suitable switch for this.

Features

Fast Dual-Band Wi-Fi : Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.
Four Gigabit Ports : 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
Integrated into Omada SDN : Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management : Cloud access and Omada app for ultra convenience and easy management.
Elegant Appearance : Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.
Easy Installation and PoE Support : Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
Secure Guest Network : Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Advanced Wireless Tech : Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.

Technical Specifications

HARDWARE FEATURES
Interface	Uplink : 1× 10/100/1000 Mbps Ethernet Port Downlink : 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.)
Physical Security Lock	Yes
Button	Reset
Power Supply	802.3af/802.3at PoE
Power Consumption	9.8 watts /24.4 watts (PoE Out Included)

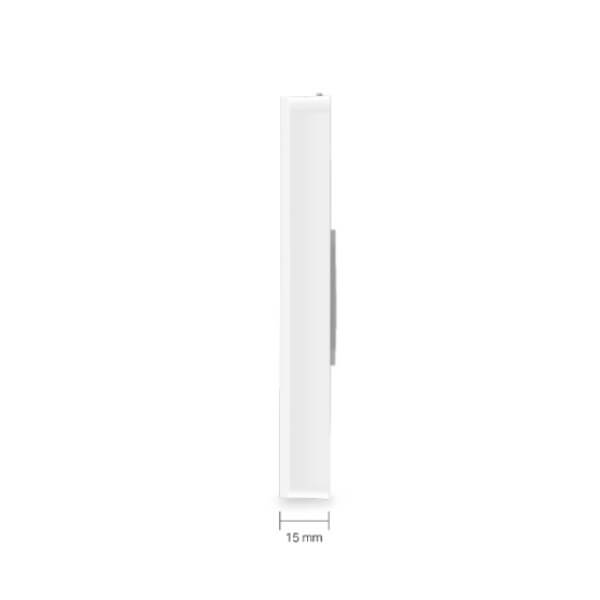

Dimensions	143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna	2 Dual-Band Antennas 2.4 GHz : 2× 4 dBi 5 GHz : 2× 4 dBi
Mounting	Wall Plate Mounting
WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/b/g/n/ac
Frequency	2.4 GHz and 5 GHz
Signal Rate	5 GHz : Up to 867 Mbps 2.4 GHz : Up to 300 Mbps
Wireless Functions	16 SSIDs (Up to 8 SSIDs on each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Band Steering Beamforming Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Local LAN port based VLAN Rogue AP Detection 802.1X Support 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power	CE : ≤20 dBm (2.4 GHz, EIRP) ≤23 dBm (5 GHz, EIRP)FCC : ≤21 dBm (2.4 GHz) ≤21 dBm (5 GHz)
MANAGEMENT
Omada App	Yes
Centralized Management	Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
OTHERS
Certification	CE, FCC, RoHS
Package Contents	Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall Installation Guide Mounting Screw
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment	Operating Temperature : 0–40 ℃ (32–104 ℉) Storage Temperature : -40–70 ℃ (-40–158 ℉) Operating Humidity : 10–90% RH non-condensing Storage Humidity : 5–90% RH non-condensing
