Description

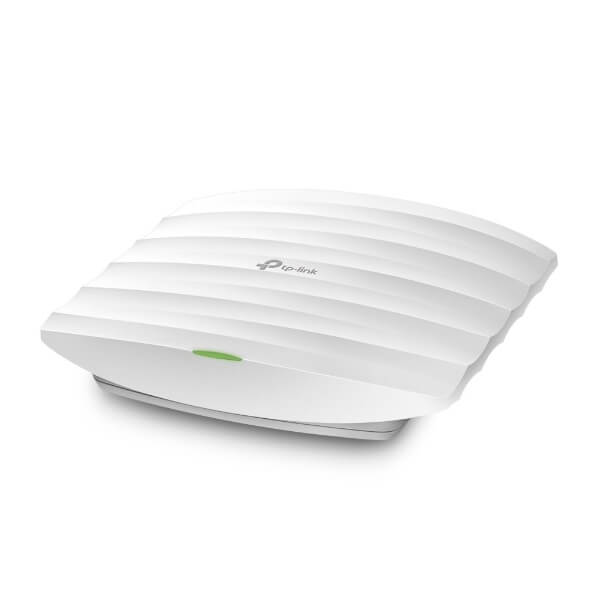

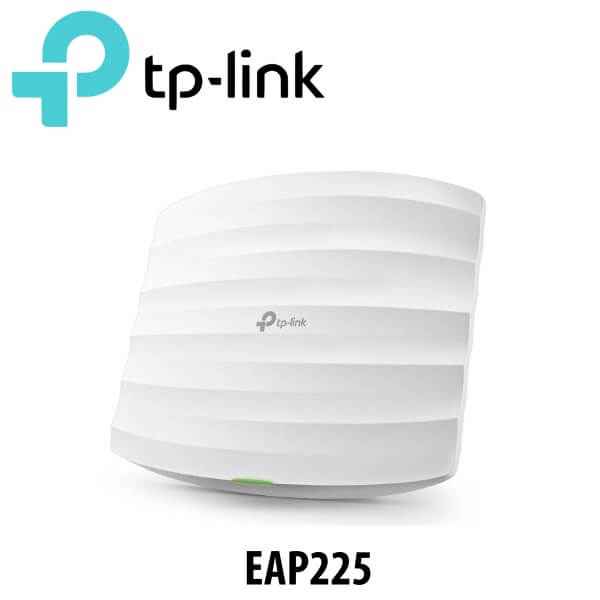

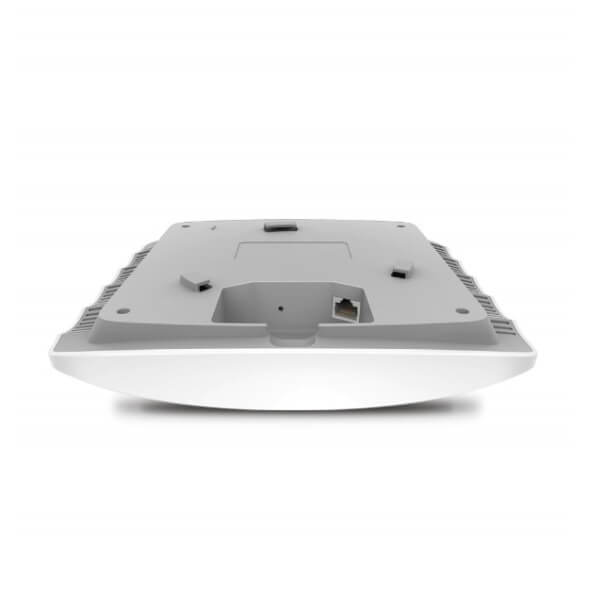

Tplink EAP225 Access Point Dubai
Extend the reach of your Wi-Fi network outdoors with the Tplink EAP225 Dubai-Outdoor Wireless AC1200 Gigabit Indoor/Outdoor Access Point from TP-Link. This wireless-AC access point operates on the 802.11a/b/g/n/ac Wi-Fi network standards and operates on both the 2.4 GHz and 5 GHz frequencies supporting data transfer rates of up to 1200 Mb/s. In addition to enhanced wireless coverage and network speeds, this access point is designed to stand up against the elements, thanks to the durable weatherproof housing. Installation is simple, as the EAP225-Outdoor access point comes with both pole- and wall-mounting kits and supports PoE connectivity to eliminate the need to run a standalone power supply to the AP. Once installed, free Omada Controller Software makes it easy to manage this AP as well as hundreds of other APs while the captive portal simplifies the process of authenticating guests.
Features
- Tplink EAP225 Dubai has a durable, weatherproof enclosure for outdoor Wi-Fi applications
- Up to 1200 Mb/s with 2×2 MIMO technology
- Tplink EAP225 Dubai is fitted with high transmission power and high-gain antennas provide a long-range coverage area
- Free Omada Controller software enables administrators easily manage hundreds of EAPs
- Captive portal provides a convenient method for guest authentication
- Facebook Wi-Fi and SMS authentication help to boost your business
- Tplink EAP225 Dubai features an 802.3af/passive PoE (PoE adapter included) compatible and simple mounting design which allows for flexible deployment and convenient installation
Technical Specs
| Wireless | |
| Wireless Frequency Bands | 2.4 GHz, 5 GHz |
| Number of Antennas | 2 |
| MU-MIMO Support | 2 x 2 |
| WLAN Mode | Wi-Fi 5 (802.11ac) |
| Antenna Gain | 3 to 4 dBi |
| Transmit Power | 22 to 23 dBm |
| Supported Protocols |
|
| Antenna Placement | External (Detachable) |
| Throughput | 1200 Mb/s Total
|
| Interface | |
| Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| Security | |
| Wireless Security | WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise |
| Management | |
| Operation Modes | Access Point |
| Max SSIDs Supported | 16 |
| Hardware | |
| Supported IEEE Standards | 802.11ac, 802.11a, 802.11b, 802.11g, 802.11n, 802.1x, 802.3af |
| Electrical | |
| Power Consumption | 10.5 W |
| Environmental | |
| Operating Temperature | -22 to 158°F / -30 to 70°C |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Humidity | 10 to 90% |
| Storage Humidity | 5 to 90% |
| General | |
| IP Rating | IP65 |
| Certifications | CE, FCC, RoHS *as per Manufacturer |
| Mount Options | Pole, Wall |
| Dimensions | 8.5 x 1.8 x 1.1″ / 215.9 x 45.7 x 27.9Â mm |
| Packaging Info | |
| Package Weight | 1.4 lb |
| Box Dimensions (LxWxH) | 10.6 x 5.6 x 4″ |
