Description

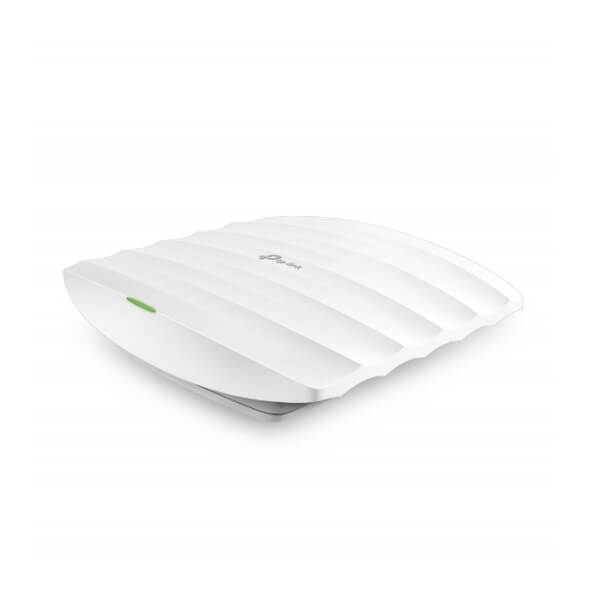

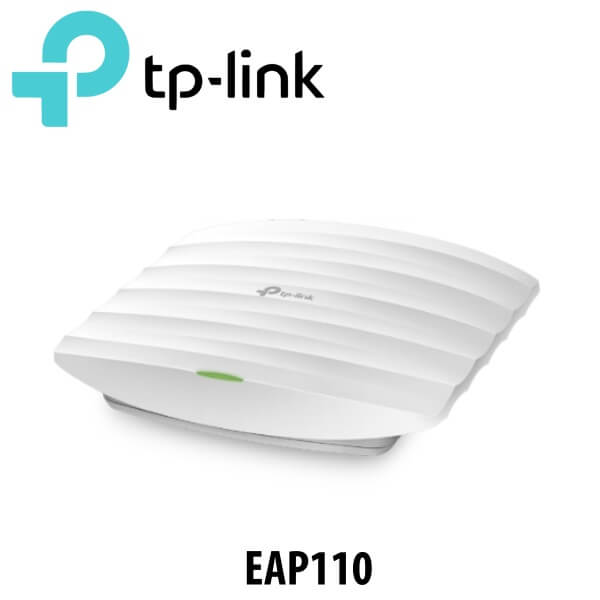

Tplink EAP110 Outdoor Access Point Dubai

Features :

Flexible Placement – Easy mounting design & PoE
The Tplink EAP110 Dubai’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.

Free Cloud Centralized Management – Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Captive Portal – Guest Network with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business using the Tplink EAP110 Dubai.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Technical Specifications

HARDWARE FEATURES

• Interface : Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
• Button : Reset
• Power Supply : 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
• Power Consumption : 3.12 W
• Dimensions ( W x D x H ) : 8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm)
• Antenna Type : 2*5dBi External Omni waterproof
• Weatherproof Enclosure : IP65
• Mounting : Pole / Wall Mounting (Kits included)

WIRELESS FEATURES

• Wireless Standards : IEEE 802.11n/g/b
• Frequency : 2.4GHz
• Signal Rate :
  • 11n : Up to 300Mbps(dynamic)
  • 11g : Up to 54Mbps(dynamic)
  • 11b : Up to 11Mbps(dynamic)
• Transmit Power :
  • CE ：≤20dBm (EIRP)
  • FCC ：≤22dBm
• Wireless Functions :
  • Multiple SSIDs（Up to 8 SSIDs）
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control （Adjust Transmit Power on dBm）
  • QoS(WMM)
  • Load Balance
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
  • Wireless Security : Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • 64/128/152-bit WEP / WPA / WPA2-Enterprise,
  • WPA-PSK / WPA2-PSK

MANAGEMENT

• Auranet Controller Software : Yes
• Email Alerts : Yes
• LED ON/OFF Control : Yes
• Management MAC Access Control : Yes
• SNMP : Yes
• System Logging Local/Remote Syslog : Yes
• Telnet : Yes
• Web-based Management : HTTP/HTTPS
• L3 Management : Yes
• Multi-site Management : Yes
• Management VLAN : Yes

OTHERS

• Certification : CE, FCC, RoHS
• Package Contents :
  • 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor
  • Passive PoE Adapter
  • Power Cord
  • Mounting Kits
  • Waterproof Rubber Insert
  • Waterproof Antennas
  • Installation Guide
• System Requirements : Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
• Environment :
  • Operating Temperature : -30℃~65℃ (-22℉~149℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
