Description

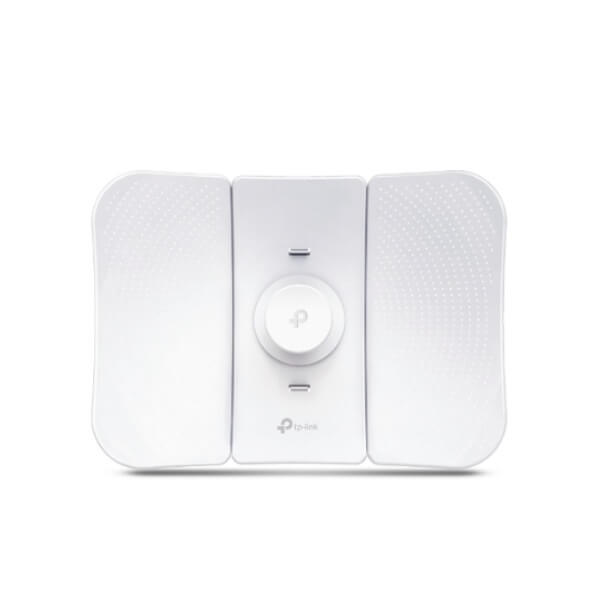

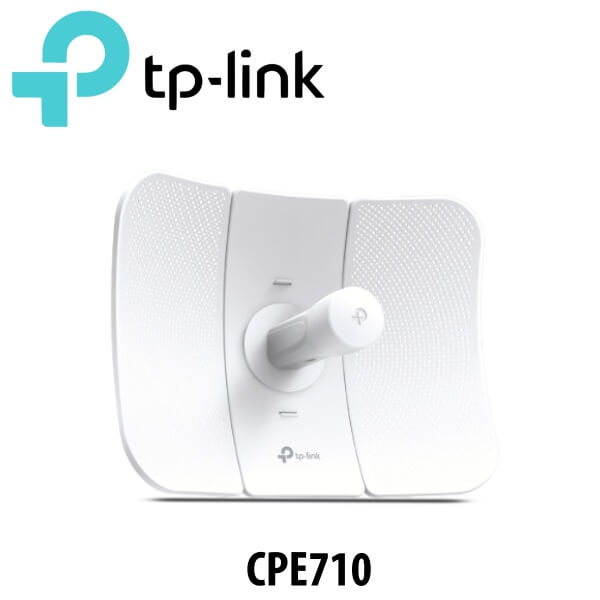

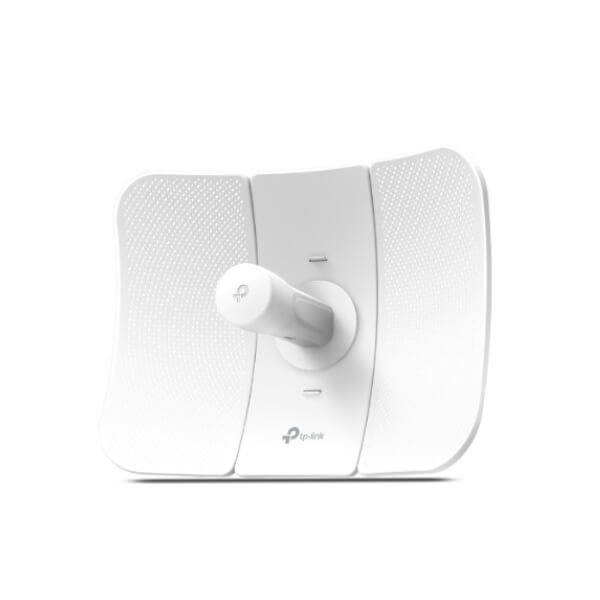

Tplink CPE710 Outdoor Radio Dubai
Enhance your business with reliable point-to-point connections between networks over long distances with the Tplink CPE710 Dubai 5 GHz Wireless-AC867 Outdoor CPE from TP-Link. Featuring a powerful 23 dBi directional antenna with a dedicated metal reflector and 2 x 2 MIMO technology, this 802.11ac outdoor CPE is designed to cut through noise and transfer up to 867 Mb/s over the 5 GHz frequency. Made primarily from PC stabilized plastic with wind and IP65 weatherproofing, this device can operate in temperatures between -40°F and 150°F. It also has 15kV ESD and 6kV lightning protection. The snap-lock design and included three-axis pole-mounting kit make for quick installation. The Tplink CPE710 Dubai is powered via passive PoE through its Gigabit Ethernet port and includes a convenient PoE adapter. Configure, manage, and monitor your network using the Pharos Control centralized system.
Features
Professional-Standard 23 dBi Directional Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the Tplink CPE710 Dubai provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.
Stable Structural Design and Flexible Installation
Snap-lock parts make assembly simple and convenient. Pole mount kits and the freedom of three-axis alignment facilitate flexible installation. Sturdy design ensures stability in windy conditions
Specifications
| Hardware | |
| Ports | 1 x 10/100/1000 Mbps Shielded Ethernet Port (PoE) |
| IEEE Standards | IEEE 802.11a/n/ac |
| Frequency | 5 GHz (Single-Band) |
| MIMO | 2 x 2 |
| Antenna Gain | 23 dBi |
| Transmit Power | 27 dBm |
| Antenna Beamwidth | 9° (Azimuth) / 7° (Elevation) |
| Throughput | 867 Mb/s (5 GHz) |
| Processor | 750 MHz Qualcomm MIPS 74Kc |
| RAM | 128 MB DDR2 |
| Electrical | |
| AC Power | 100 to 240 VAC, 50/60 Hz |
| DC Power Input | 16 to 27 VDC |
| Environmental | |
| Operating Temperature | -40 to 150°F / -40 to 70°C |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Humidity | 10 to 90% |
| Storage Humidity | 5 to 95% |
| Physical | |
| Protection | 15 KV ESD Protection 6 KV Lightning Protection |
| IP Rating | IP65 Water and Dust Proof Design |
| Material | Outdoor PC Stabilized Plastic Metal |
| Dimensions | 14.4 x 11.0 x 8.1″ / 366 x 280 x 207 mm |
| Warranty | Limited Lifetime Warranty |
| Packaging Info | |
| Package Weight | 3.68 lb |
| Box Dimensions (LxWxH) | 13.1 x 6.25 x 5.45″ |
