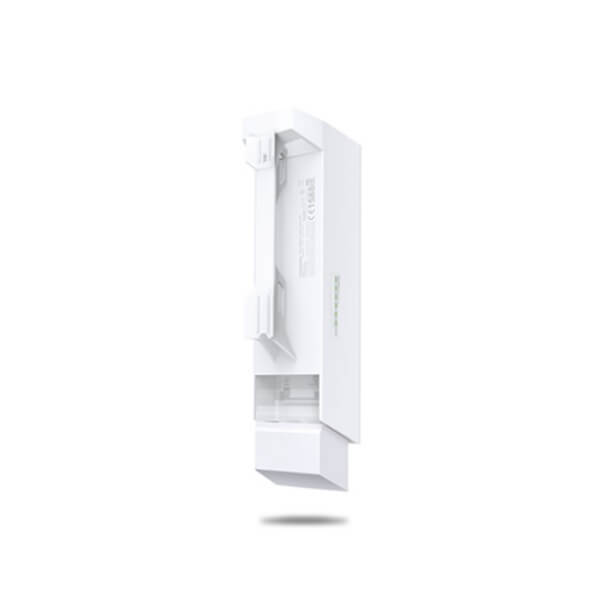

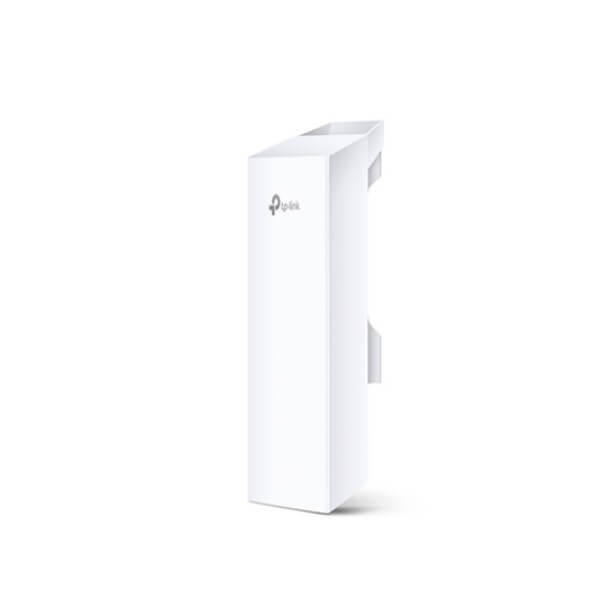

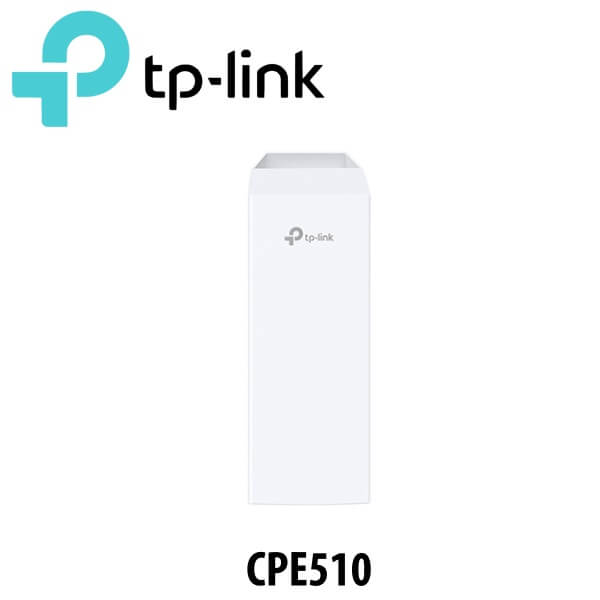

Tplink CPE510 Outdoor Radio Dubai

Features

• Built-in 13dBi 2×2 dual-polarized directional MIMO antenna
• Tplink CPE510 Dubai supports adjustable transmission power from 0 to 23dBm/200mw
• System-level optimization for more than 15km long range wireless transmission
• TP-LINK Pharos MAXtream TDMA(Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency, ideal for PTMP applications
• Tplink CPE510 Dubai comes with a built-in centralized Management System – Pharos Control that makes it flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications.
• AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
• Outdoor stabilized enclosure with IPX5 waterproof certification
• Dual Ethernet ports and grounding terminal integrated
• 6KV Lightning Protection, 15KV ESD Protection
• Tplink CPE510 Dubai has a passive PoE Adapter that supports up to 60 meters (200 feet) power over Ethernet deployment and allows for device reset remotely
• Tplink CPE510 Dubai provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security
• Selectable bandwidth of 5/10/20/40MHz
• Provides Throughput Monitor, Spectrum Analyzer, Speed Test and Ping tools
• Easy antenna alignment with wireless signal quality indicators via Web interface

Technical Specifications :

HARDWARE FEATURES

• Processor : Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
• Memory : 64MB DDR2 RAM, 8MB Flash
• Interface :
  • 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
  • 1 Grounding Terminal
  • 1 Reset Button
• Power Supply :
  • Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
  • Voltage range : 16-27VDC
• Power Consumption : 10.5 Watts Max
  Note : When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
• Dimensions ( W x D x H ) : 224 x 79 x 60 mm
• Antenna Type :
  • Built-in 13dBi 2×2 Dual-polarized Directional Antenna
  • Beam Width : 45° (H-Plane) / 30° (E-Plane)
• Protection :
  • 15KV ESD Protection
  • 6KV Lightning Protection
• Enclosure :
  • Outdoor ASA stabilized plastic material
  • IPX5 waterproof Certification

WIRELESS FEATURES

• Wireless Standards : IEEE 802.11a/n (with Pharos MAXtream disabled)
• Proprietary Protocol : TDMA Mode (with Pharos MAXtream enabled)
• Wireless Speeds :
  • Up to 300Mbps (40MHz,Dynamic)
  • Up to 144.4Mbps (20MHz,Dynamic)
  • Up to 72.2Mbps (10MHz,Dynamic)
  • Up to 36.1Mbps (5MHz,Dynamic)
• Frequency : 5.15~5.85GHz
  Note : Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
• Transmission Power : 23dBm/200mw (Adjustable power by 1dBm)

Note : Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES

• Wireless Configurations :
• Pharos MAXtream TDMA Technology
• 802.11a/n Modes
• Selectable Channel Width : 5/10/20/40MHz
• Automatic Channel Selection
• Transmission Power Control
• Dynamic Frequency Selection (DFS)
• WDS Enable/Disable
• Security : WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
• SSID Broadcast Enable/Disable
• Multi-SSID with VLAN Tagging (AP mode only)
• Distance/ACK Timeout Setting
• Wireless MAC Address Filter
• Wireless Advanced :
  • Beacon Interval/RTS Threshold/Fragmentation
  • Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
• Management :
  • Discovery and Remote Management via Pharos Control application
  • HTTP/HTTPS Web-based management
  • System Log
  • SNMP Agent(v2c)
  • Ping Watch Dog
  • Dynamic DDNS
  • SSH Server
• System Tools :
  • Wireless Signal Quality Indicators :
  • Signal Strength/Noise/Transmit CCQ/CPU/Memory
  • Monitors : Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
  • Spectrum Analyzer
  • Speed Test
  • Ping
  • Traceroute
• System-level optimizations :
  • Optimized IGMP Snooping/Proxy for multicast applications
  • Hardware watch dog

POE ADAPTER FEATURES

• Dimensions(W x D x H) : 85.8*43.9*29.7mm
• Input Current : 0.4A Max @ 100VAC
• Input Voltage : 100VA~240VAC @ 50Hz~60Hz
• Output :
  • 24VDC, 1.0A Max
  • +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
• Efficiency : >84.28%
• Output Voltage : 24VDC(+4,5pins; -7,8pins)
• Power LEDs : Green
• Certifications : CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mar/PSE
• Interfaces :
  • 1 AC Jack with Earth Ground
  • 1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
  • 1 10/100/1000Mbps Shielded Ethernet Port (Data)

OTHERS

• Certification : CE, FCC, RoHS, IPX5
• Package Contents :
  • Outdoor Wireless CPE
  • 24V 0.6A Passive PoE Adapter
  • Pole Mounting Straps
  • AC Power Cord
  • Quick Installation Guide
• System Requirements :
• Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
  Note : We recommend you to use one of following Web browsers for an improved user experience : Google Chrome, Safari, and Firefox. IE browsers are not recommended.
• Environment :
  • Operating Temperature : -40°C~70°C (-40℉~158℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~95% non-condensing
