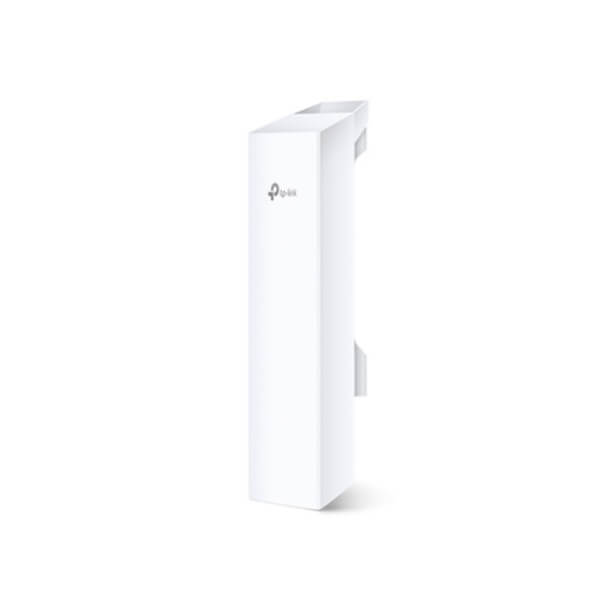

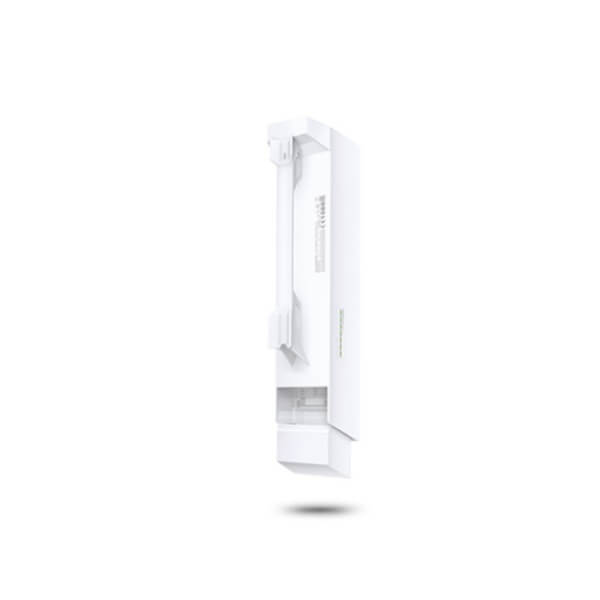

Tplink CPE220 Outdoor Radio Dubai
The Tplink CPE220 Dubai is a 2.4GHz Outdoor Radio which comes with a built-in 12dBi 2×2 dual-polarized directional MIMO antenna, and is designed to provide an adjustable transmission power from 0 to 30dBm/1000mw. It also provides a system-level optimizations for more than 13km long range wireless transmission, proving to be a highly reliable network solution. The Tplink CPE220 Dubai is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. It is also coupled with user-friendly design, hence an ideal choice for both business and home users.
Features
- Tplink CPE220 Dubai comes with a built-in 12dBi 2×2 dual-polarized directional MIMO antenna
- Tplink CPE220 Dubai offers an adjustable transmission power from 0 to 30dBm/1000mw
- System-level optimizations for more than 13km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
- Tplink CPE220 Dubai comes with a passive PoE Adapter which supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Technical Specifications :
| HARDWARE FEATURES : | |
|---|---|
| PROCESSOR | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
| MEMORY | 64MB DDR2 RAM, 8MB Flash |
| INTERFACE | Has One (1) 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) One (1) 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) Also has One (1) Grounding Terminal, and One (1) Reset Button |
| POWER SUPPLY | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range : 16-27VDC |
| POWER CONSUMPTION | 10.8 Watts Max Note : When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
| DIMENSIONS ( W X D X H ) | 11×3.1×2.1 inch (276×79×60 mm) |
| ANTENNA TYPE | Built-in 12dBi 2×2 Dual-polarized Directional Antenna Beam Width : 60° (H-Plane) / 30° (E-Plane) Note : For more details, please refer to datasheet |
| PROTECTION | 15KV ESD Protection 6KV Lightning Protection |
| ENCLOSURE | Outdoor ASA stabilized plastic material IPX5 waterproof Certification |
| WIRELESS FEATURES : | |
| WIRELESS STANDARDS | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
| PROPRIETARY PROTOCOL | TDMA Mode (with Pharos MAXtream enabled) |
| WIRELESS SPEEDS | Up to 300Mbps (40MHz,Dynamic) |
| FREQUENCY | 2.4GHz |
| TRANSMISSION POWER | 30dBm/1000mw (Adjustable power by 1dBm) |
| POE ADAPTER FEATURES | |
| DIMENSIONS(W X D X H) | 85.8×43.9×31.9 mm |
| INTERFACES |
|
| BUTTON | Remote Reset Button |
| POWER STATUS LEDS | Green |
| INPUT | 100-240VAC, 50/60Hz |
| OUTPUT | 24VDC, 1.0A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| EFFICIENCY | >80% |
| CERTIFICATIONS | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| OTHERS | |
| CERTIFICATION | CE, FCC, RoHS, IPX5 |
| PACKAGE CONTENTS |
|
| SYSTEM REQUIREMENTS | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note : We recommend you to use one of following Web browsers for an improved user experience : Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
| ENVIRONMENT |
|
