Description
Tplink Archer-AX72 Wi-Fi Router Dubai
The Tplink Archer-AX72 Dubai is equipped with a next-gen high-efficiency 64-bit Qualcomm CPU which processes data responsively and reduces the latency within the network, delivering a robust yet stable network. Easily handle dozens of devices streaming and gaming at the same time — OFDMA and MU-MIMO combine to future-proof your home network by providing greater capacity to connect more devices. Integrated MU-MIMO Technology helps transmit data to different devices simultaneously using multiple streams, while the slant rectangle atop the scaled armor design provides a contemporary aesthetic. Its 167 cm² (25 in²) area dedicated to heat dissipation, unleashes the full power of the whole machine.
Features
- Gigabit Wi-Fi for 8K Streaming : 5400 Mbps Wi-Fi for faster browsing, streamings, and downloading, all at the same time.
- Fully Featured Wi-Fi 6 : Â Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable 4.8 Gbps ultra-fast connection.
- Connect 100+ Devices : Â Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
- Extensive Coverage :  Tplink Archer-AX72 Dubai is equipped with 6× antennas and Beamforming which ensure broad coverage.
- HomeShield : Â TP-Link’s premium security services keep your home network safe with cutting-edge features for network and IoT protection.
- More Vents, Less Heat : Â Improved vents area unleash the full power of the whole machine.
- USB Sharing :  1× USB 3.0 port enables easy media sharing and private cloud building.
- Easy Setup : Â Set up the router in minutes with Tether app.
Technical Specs
Standards |
- Wi-Fi 6
- IEEE 802.11ax/ac/n/a 5 GHz
- IEEE 802.11ax/n/b/g 2.4 GHz
|
WiFi Speeds |
- AX5400
- 5 GHz : 4804 Mbps (802.11ax, HE160)
- 2.4 GHz : 574 Mbps (802.11ax)
|
WiFi Range |
- 3 Bedroom Houses
- 6× Fixed High-Performance Antennas
- Multiple antennas form a signal-boosting array to cover more directions and large areas
- Beamforming
- Concentrates wireless signal strength towards clients to expand WiFi range
- High-Power FEM
- Improves transmission power to strengthen signal coverage
- 4T4R
- Multiple streams in the same band strengthen the fault tolerance in transmission
|
WiFi Capacity |
- High
- Dual-Band
- Allocate devices to different bands for optimal performance
- 4×4 MU-MIMO
- Simultaneously communicates with multiple MU-MIMO clients
- OFDMA
- Simultaneously communicates with multiple Wi-Fi 6 clients
- Airtime Fairness
- Improves network efficiency by limiting excessive occupation
- DFS
- Access an extra band to reduce congestion
- 6 Streams
- Connect your devices to more bandwidth
|
Working Modes |
- Working Modes
- Access Point Mode
|
HARDWARE |
|
Processor |
1 GHz Dual-Core CPU |

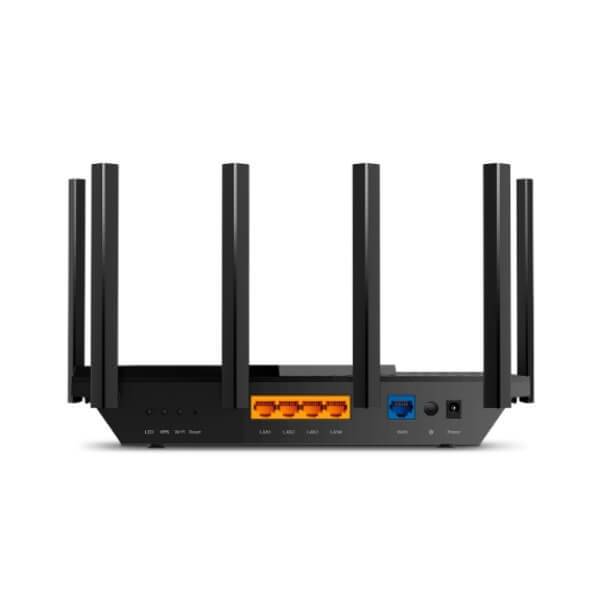

Ethernet Ports |
- 1× Gigabit WAN Port
- 4× Gigabit LAN Ports
|
USB Support |

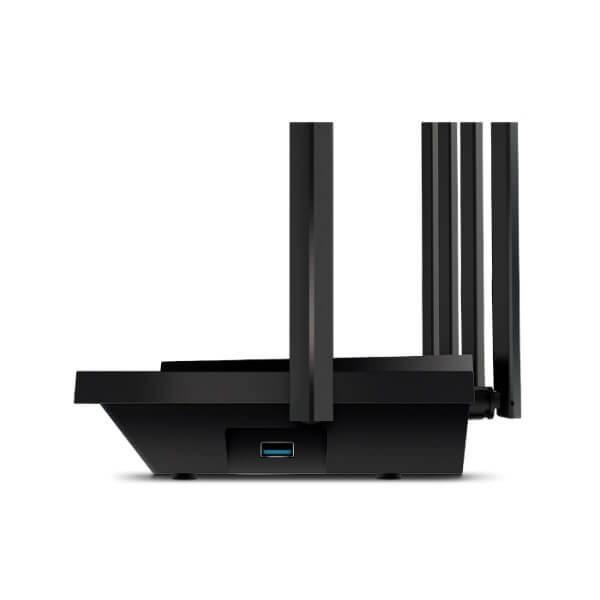

- 1× USB 3.0 Port
- Supported Partition Formats :
- NTFS, exFAT, HFS+, FAT32
- Supported Functions :
- Apple Time Machine
- FTP Server
- Media Server
- Samba Server
|
Buttons |
- Wi-Fi On/Off Button
- Power On/Off Button
- LED On/Off Button
- WPS Button
- Reset Button
|
Power |
12 V ⎓ 2.5 A |
SECURITY |
|
WiFi Encryption |
- SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
- HomeShield Security
- Real-Time IoT Protection
- Malicious Site Blocker
- Intrusion Prevention System
- DDoS Attack Prevention
- Home Network Scanner
|
Guest Network |
- 1× 5 GHz Guest Network
- 1× 2.4 GHz Guest Network
|
VPN Server |
|
SOFTWARE |
|
Protocols |
|
OneMesh |
- OneMesh Supported
- Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
|
Parental Controls |
- HomeShield Parental Controls
- Custom Profiles
- Professional Content Filter Library
- Family Time
- Bedtime
- Off Time
- Time Rewards
- Family Online Time Ranking
- Pause the Internet
- Weekly and Monthly Reports
|
WAN Types |
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
|
Quality of Service |
QoS by Device |
Cloud Service |
- Auto Firmware Upgrade
- TP-Link ID
- DDNS
|
NAT Forwarding |
- Port Forwarding
- Port Triggering
- DMZ
- UPnP
- Virtual Server
|
IPTV |
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
|
DHCP |
- Address Reservation
- DHCP Client List
- Server
|
DDNS |
|
Management |
|
PHYSICAL |
|
Dimensions (W×D×H) |
- 10.7 × 5.8 × 1.9 in
- (272.5 × 147.2 × 49.2 mm)
|
Package Contents |
- Wi-Fi Router Archer AX72
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
|
OTHER |
|
System Requirements |
- Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
- Cable or DSL Modem (if needed)
- Subscription with an internet service provider (for internet access)
|
Certifications |
FCC, CE, RoHS |
Environment |
- Operating Temperature : 0℃~40℃ (32℉ ~104℉)
- Storage Temperature : -40℃~70℃ (-40℉ ~158℉)
- Operating Humidity : 10%~90% non-condensing
|
