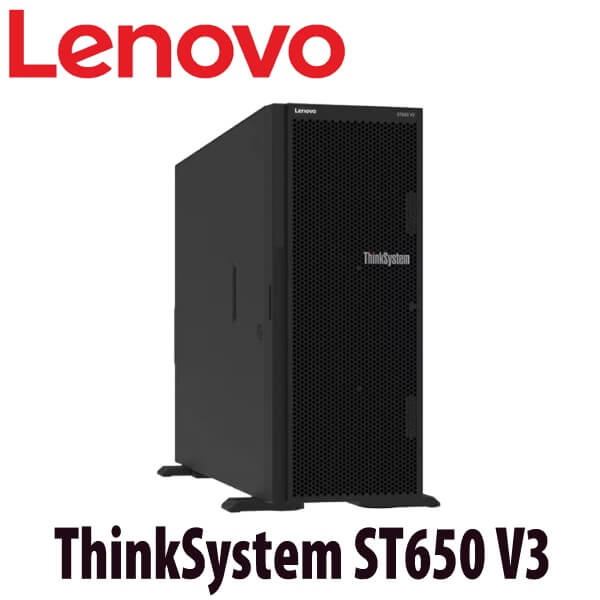

ThinkSystem ST650V3 Tower Server Dubai
The Lenovo ThinkSystem ST650V3 Dubai is a high-performance dual-socket 4U tower server designed to meet the demands of businesses ranging from small enterprises to large corporations. Powered by 5th and 4th Gen Intel Xeon Scalable processors, this server offers exceptional reliability, advanced security, and streamlined management to optimize performance and scalability. With support for up to 4TB of DDR5 memory and 24 NVMe drives, it ensures seamless operation for data-intensive workloads.
Built for versatility, the ThinkSystem ST650 V3 is an excellent choice for businesses that require powerful computing for databases, cloud computing, virtualization, virtual desktop infrastructure (VDI), and high-performance computing (HPC). It also excels in enterprise applications, systems management, web hosting, media streaming, and collaboration platforms. The inclusion of GPU support further enhances its capability, making it ideal for AI-driven applications and complex computational tasks.
This server is engineered with industry-leading security features to safeguard critical business data, while its flexible architecture ensures future-proof scalability. Whether your business requires a reliable and efficient infrastructure for demanding workloads or expansion-ready technology for future growth, the Lenovo ThinkSystem ST650V3 Dubai stands out as a top-tier solution. With its cutting-edge performance, adaptability, and robust security, it remains a preferred choice for enterprises looking to optimize their IT infrastructure.
Key Features
Powerful Performance
Powered by 2x 5th Gen Intel® Xeon® Scalable processors, the ThinkSystem ST650 V3 provides maximum performance in a tower form factor and with up to 50% more cores, the ST650 V3 performance increased 59% over the previous generation. The latest DDR5 memory and PCIe Gen 5 enhances bandwidth and speed making the ST650 V3 the ideal server for enterprise workloads like virtualization and private cloud.
Expendable Capabilities
Add agility to your private cloud or virtualized environment with the highly configurable ST650 V3 tower server. With support for up to 9 PCIe Gen 4/Gen 5 slots and up to 32 drives with multiple drive technologies, the ST650 V3 can be easily scaled up or down to evolve with your workload demands.
Faster Insights and Reliability
The Lenovo ThinkSystem ST650V3 Dubai speeds time to insights with 8 single-width (SW) or 4 double-width (DW), or a combination of 4 SW and 4 DW GPUs. This GPU-rich tower server maximizes capabilities with the ability to process large blocks of data in parallel.
All ThinkSystem servers, including the ST650 V3, have validated and pre-validated solutions which are designed for reliability and stability.
Ideal for remote installations, the ThinkSystem ST650V3 Dubai server provides enterprise performance, faster insights, and reliability either in-rack or as a stand-alone server.
Technical Specifications
| Machine types | 7D7B – 1 year warranty 7D7A – 3 year warranty |
| Form factor | Tower or 4U Rack |
| Processor | One or two 5th Gen or 4th Gen Intel Xeon Scalable processors (formerly codenamed “Emerald Rapids” and “Sapphire Rapids” respectively). Supports processors up to 32 cores, core speeds of up to 3.9 GHz, and TDP ratings of up to 250 W. |
| Chipset | Intel C741 “Emmitsburg” chipset, part of the platform codenamed “Eagle Stream” |
| Memory | 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs, 9×4 RDIMMs, and 3DS RDIMMs are supported. DIMMs operate at up to 4800 MHz at 1 DPC and up to 4400 MHz at 2 DPC. |
| Persistent memory | No support |
| Memory maximum | Up to 4TB by using 32x 128GB 3DS RDIMMs |
| Memory protection | ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs excluding 9×4 RDIMMs, requires Platinum or Gold processors), and memory mirroring. |

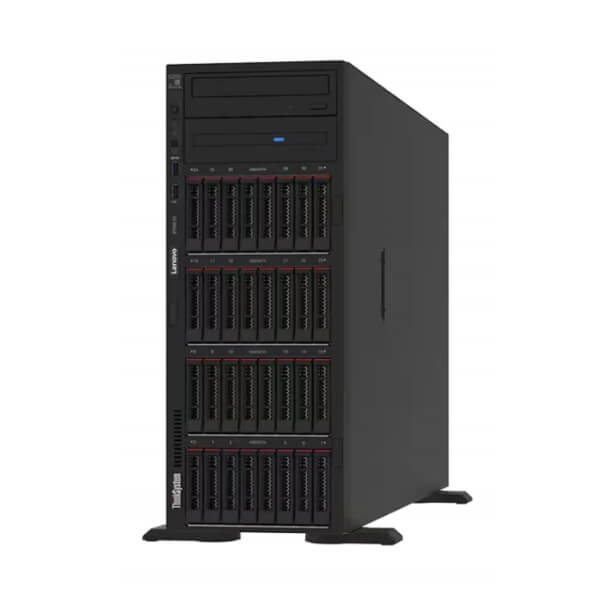

| Disk drive bays | 2.5-inch drive bays:
3.5-inch drive bays:
Internal drives for OS boot or drive storage:
|
| Maximum internal storage |
|
| Storage controller |
|
| Optical drive and tape drive bays | Two half-height 5.25-inch media bays, available in most configurations. Supports two of LTO tape drive, RDX drive, or slim DVD-RW optical drive. |
| Network interfaces | Two onboard 10GBASE-T Ethernet RJ45 ports based on a Broadcom BCM57416 controller. Additional dedicated Gigabit port for remote management via the XClarity Controller (XCC) management processor. |
| PCI Expansion slots | 9x PCIe slots: 5x PCIe 5.0 and 4x PCIe 4.0 slots. All nine slots are mounted on the system board. Slots 1-8 are full height, full length (FHFL); slot 9 is full height, half length (FHHL). Slots 4-8 require CPU 2 installed.
The server also supports the installation of a RAID adapter or HBA in a dedicated area that does not consume any of the PCIe slots. |
| GPU support | Supports up to 8x single-wide GPUs or up to 4x double-wide GPUs |
| Ports | Front: 1x USB 3.2 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management)

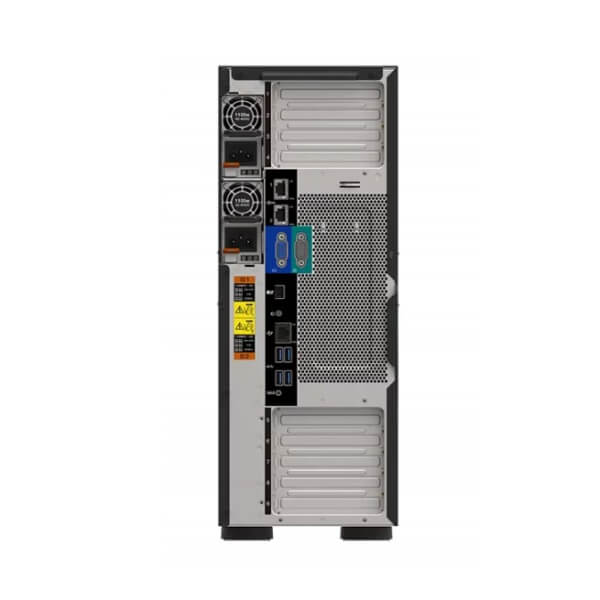

Rear: 2x 10GBASE-T RJ45 Ethernet ports, 4x USB 3.2 G1 (5 Gb/s) ports, 1x VGA video port, 1x DB-9 COM serial port, 1x 1GbE RJ-45 systems management port for XCC remote management, External diagnostics port Internal: 2x USB 3.2 G1 connector for operating system or license key purposes |
| Cooling | Up to 4x single-rotor or dual-rotor hot swap 92 mm fans, configuration dependent. Fans are N+1 redundant. One additional fan integrated in each power supply. |
| Power supply | Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 750 W, 1100 W, 1800 W and 2600 W AC options, supporting 220 V AC. 750 W and 1100 W options also support 110V input supply. In China only, all power supply options support 240 V DC. |
| Video | Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 2 management controller. Maximum resolution is 1920×1200 32bpp at 60Hz. |
| Hot-swap parts | Drives, power supplies, and fans. |
| Systems management | Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. XClarity Controller 2 (XCC2) embedded management controller , XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XClarity Controller Platinum to enable remote control and other functions. |
| Security features | Power-on password, administrator’s password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). Optional lockable front security door and optional chassis intrusion switch. |
| Operating systems supported | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. |
| Limited warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9×5 next business day (NBD). |
| Service and support | Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications. |
| Dimensions | Width: 175 mm (6.9 in.), height: 462 mm (18.2 in.), depth: 734 mm (28.9 in.). |
| Weight | 39.1 kg (86.2 lb) maximum |
