Description

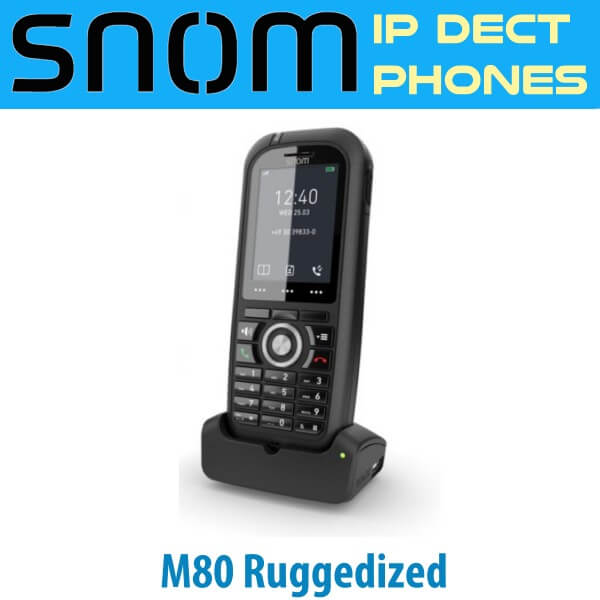

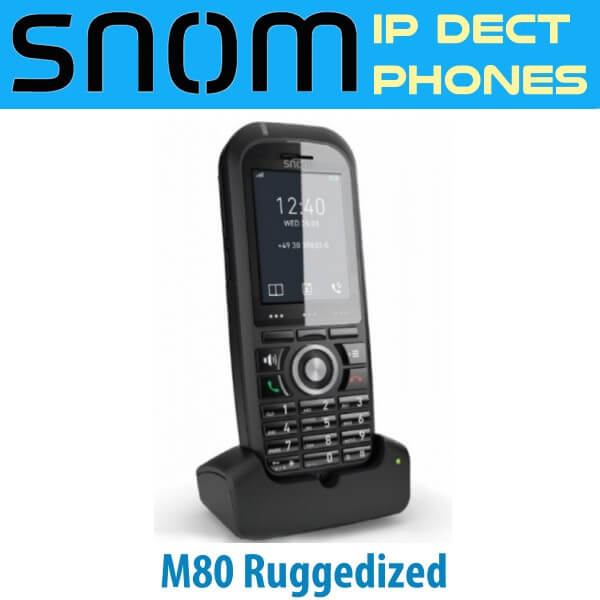

SNOM M80 RUGGEDIZED DECT HANDSET DUBAI

Weighing only 138g, Snom M80 Ruggedized DECT Handset comes with an integrated Bluetooth and BLE tag for days when the user needs to move around while working. Snom Bluetooth Beacons enables the device to connect with Bluetooth – enabled headsets, track devices in real time and also to protect its alarm function. The magnificent handset onboards a high-resolution LED colour display of 2″diagonal, 240 x 320 pixel, 262k TFT color LCD with backlight, vibration alarm and a high quality audio. Its powerful rechargeable battery delivers up to 12 hours talk time on a single charge.

SNOM M80 RUGGEDIZED DECT HANDSET FEATURES

DECT TECHNOLOGY

The Snom M80 Ruggedized DECT handset uses DECT 6.0 and supports frequency bands of 1880-1900 MHz in European countries and 1920 – 1930 MHz in the USA. It has a strong power output performance of <250mW in Europe and <140 mW in the USA.

POWERFUL BATTERY AND CHARGER PERFORMANCE

Battery : Snom M80 Ruggedized DECT handset is equipped with a Lithium-ion polymer battery with a capacity of 1100mAh, 3.7V, 4.1W. On a single full charge, the robust battery can offer up to 12 hours of talk time and 10 days standby time.

Charger : Its charger has a total power input of 5VDC, 2A and comes with a charging indicator which turns green when light is on when the handset is charging in the cradle. Furthermore, its charging cradle comes with a built – in USB port for daisy chaining a second cradle.

Power Adapter : the Snom M80 Ruggedized DECT handset is supplied with a powerful power adapter which has a strong input of 100-240 AC Volt, 50/60 Hz, 300mA , and an output power of 5V 2A. For simple plugging, the power adapter has interchangeable clips including EU and US clips. Its charging conditions lie between 5° C and 45°C.

RANGE

The Snom M80 Ruggedized DECT handset boasts of a long transmission of up to 50 meters when indoors, and up to 300 meters for outdoors (for indoor use only).

EASY USER INTERFACE

The Snom M80 Ruggedized DECT handset is equipped with a 2″ diagonal, 240×320 pixels 262k TFT color LCD with backlight, a backlit keypad with 24 functional keys, tricolor LED indication of missed calls or new voice messages and low battery, speakerphone, mute microphone and a vibration alarm. A user can therefore easily operate the handset even without any technical skills and expertise.

HIGHLY EFFICIENT

The Snom M80 Ruggedized DECT handset pushes versatility to a new high, thanks to its ability to complement already existing fixtures for enhanced web and audio conferencing, as well as other communication needs. This makes it easy to integrate seamlessly into any office setup without disorienting earlier structures and work ethic. Furthermore, the device is easy to redeploy as the business grows and needs to transform.

COMPATIBILITY

The Snom M80 Ruggedized DECT handset has been configured to work perfectly with M300 Single-Cell Base, available in M325 Bundle, snom PN 00003955 (EU), 00003954 (US) 00004161 (AU), M700 DECT Single Cell/Multicell Base snom PN 00003928 (EU), 00003929 (US), and M900 DECT Multicell Base, snom PN 00004426 (EU), 00004441 (US).

MULTIPLE LANGUAGE USER INTERFACE

The Snom M80 Ruggedized DECT handset supports the use of a number of international languages including  English, German, French, Italian, Spanish, Dutch, Portuguese, Swedish, Turkish, Danish, Norwegian, Polish, Russian, Croatian, Serbian, and Slovenian. This gives the user an easy experience operating the handset, since they can choose the language they understand most and set their Snom M80 Ruggedized DECT handset to it.

PORTABILITY

The Snom M80 Ruggedized DECT handset has been compactly designed and is extremely lightweight, weighing only 138g, including its battery and belt clip. This enables a user to easily keep it in their pocket and carry it anywhere without much strain.

CALL FEATURES

The Message Waiting Indicator :  This feature comes in the form of a notification to alert you of a new voicemail message. The audible Message Waiting Indicator hinges on a ‘stutter dial tone’ to notify the user when a message is waiting to be retrieved, whereas a visual Message Waiting Indicator triggers a light or notice on the phone display, ensuring that you never miss out on important phone calls.

Call Transfer : This advanced feature of the Snom M80 Ruggedized DECT handset  allows the user to relocate an inbound call to another phone or messaging system by using a dedicated call transfer button on the phone, or software that has been configured for use on the Wireless Phone.

Call Waiting : You can hear another incoming call when you are already on an active phone call (beep). With the Snom M80 Ruggedized DECT handset, you can also turn off call waiting so that incoming calls are directly sent to voicemail during moments you are active on another Phone call.

Call Holding : You can easily place an active phone call on hold in order to make or pick another incoming call using the premium Snom M80 Ruggedized DECT handset.

Conference Guide: This advanced feature of the Snom M80 Ruggedized DECT Handset helps the user to easily set up group calls with a single click of a button. The hi-tech device allows for 3 – way group calls. You can therefore  simply create a meeting or join one seamlessly while using your device.

Call Swapping : this means that you can put an active call on hold so as to pick an incoming call.

SNOM M80 RUGGEDIZED DECT HANDSET SPECIFICATIONS

• Handset:
  • Weight: approx. 138g (handset with battery+belt clip)
  • Dimensions: approx. 122x48x22mm (LxWxD)
  • Connector: 3.5mm standard phone jack for wired headsets
  • Antenna diversity (two internal omni-directional antennas for better transmission and reception)
  • Hearing aid compatible (HAC)
  • Bluetooth LE for headset connection and positioning
  • Alarm key on the top of the handset
  • Drop test 2m
  • IP protected housing
  • Large temperature range (-10°C to 55°C)
  • Part number: 00004424
• Battery:
  • Type: Lithium-ion, 1100mAh, 3.7V, 4.1 W
  • Talk time WB: Up to 12 hours
  • Talk time NB: Up to 17 hours
  • Standby time: Approx. 200 hours (10days)
• Charger:
  • Input: 5V DC, 2A
  • Charging indicator: Green LED – light is on when handset is charging in cradle
  • USB port on charging cradle for daisy chaining a second cradle
• Power Adapter:
  • Input power: 100-240 AC Volt, 50/50 Hz, 300mA
  • Output power: 5V 2A
  • Plug: interchangeable clips. EU and US Clips included
  • Charging condition: 5°C to 45°C
• Range:
  • Indoors: Up to 50 meters
  • Outdoors: Up to 300 meters
• DECT:
  • Frequency bands:
    • 1880-1900 MHz (EU)
    • 1920-1930 MHz (US)
• Phone functions with compatible base station:
  • Two simultaneous calls
  • Local directory with 250 contact entries
  • Central directory (common local directory on base or external directory via LDAP)
  • 8 speed dial numbers (number keys 2-9)
  • Caller identification (CLIP)
  • Redial (via dialed calls list)
  • Call waiting
  • Auto answer
  • Call lists (all calls, missed, received, dialed calls)
  • 50 entries total
  • Hold
  • Call swapping (active call and call on hold)
  • Blind and attended transfer
  • Call forwarding
  • 3-way conference on the phone
  • DND mode (do not disturb)
  • Hide own outgoing ID (CLIR)
  • Missed call notification
  • MWI – Voice message waiting notification
• User Interface:
  • Display:
    • 5cm (2″) diagonal
    • 240 x 320 pixel
    • 262k TFT color LCD with backlight
  • Backlit keypad with 24 keys:
    • Standard ITU telephone keypad, 12 keys, 4×3, with star and pund/hash key
    • Three context-sensitive function keys
    • 5 navigation keys (left, right, up, down, OK)
    • Off -hook key, cancel key
    • Menu key
    • Three side keys (Volume up/down, mute)
    • Alarm key on the top of the handset
    • 28 keys in total
  • Comfortable and intuitive menu structure
  • Selection of ringtones
  • Tricolor LED indication of missed calls/new voice messages, low battery
  • Speakerphone
  • Mute microphone
  • Vibration alarm
• Menu languages:
  • English, German, French, Italian, Spanish, Dutch, Portuguese, Swedish, Turkish, Danish, Norwegian, Polish, Russian, Croatian, Serbian, Slovenian
