Ruijie RG-RAP1200P Dubai

Reviews

Ruijie RG-RAP1200P Dubai

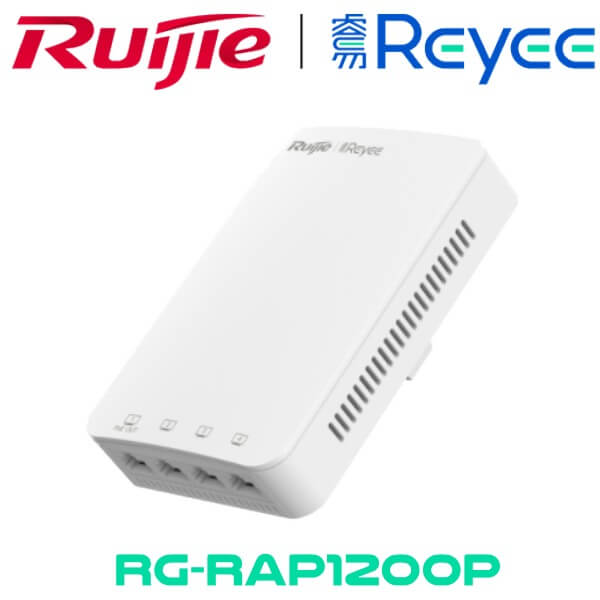

Ruijie Reyee RG-RAP1200P Dubai features a high performing dual-band gigabit wall plate AP. With 802.3af/at PoE support the RG-RAP1200P provides 4 LAN ports at the front, including 1 PoE out port, to facilitate the connection of IPTV, IP phones.

Ask for Quote & Get Low Price

Description

Ruijie Reyee RG-RAP1200P Access Point Dubai

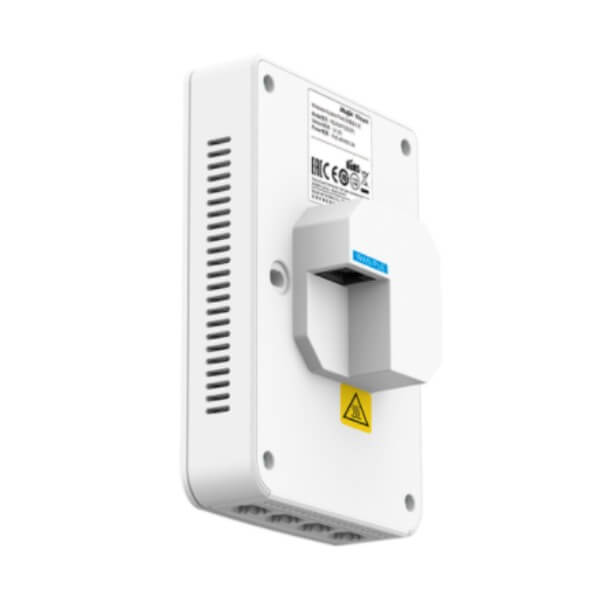

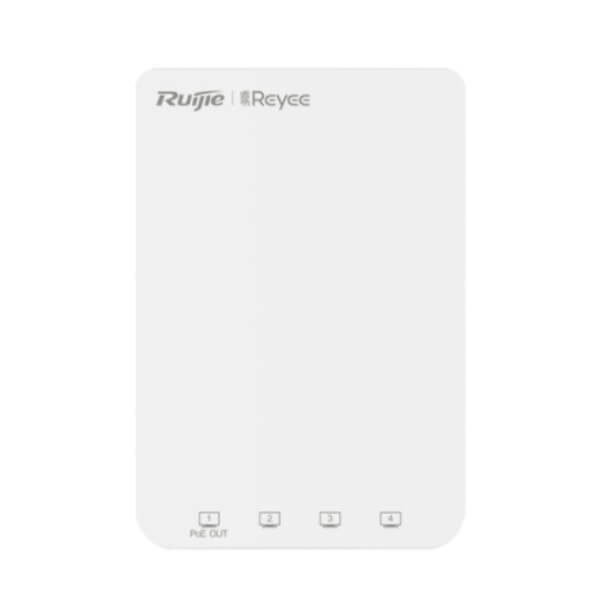

Ruijie Reyee RG-RAP1200P Dubai features a dual-band gigabit wall plate AP offering high-performance wall plate AP for small and medium-sized indoor Wi-Fi scenarios. With 802.3af/at PoE support, the AP provides 4 LAN ports at the front, including 1 PoE out port, to facilitate the connection of IPTV, IP phones. The AP also provides 1 Gigabit uplink port on the rear panel. Compliant with 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocol, the AP supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas. It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP. Its 86mm wall plate installation design is an ideal choice for deployment in small-scale Internet access scenarios such as offices, commercial industry, hotels, service scenarios, etc.

Ruijie Rg Rap1200p Access Point Dubai

Ruijie Rg Rap1200p Access Point Dubai

The Ruijie RG-RAP1200P Dubai supports Ruijie’s self-organizing network feature, which realizes auto-discovery, auto-networking and auto-configuration between gateways, switches, and wireless APs without the need for controllers or Internet access. With the Ruijie Cloud app, users can quickly complete the device deployment and configuration, remote management, operation and maintenance of the entire network, which greatly reduces the investment of equipment cost, labor cost and time cost in the process of wireless network construction. Users can perform comprehensive local management or remote management of the equipment in the entire network via Ruijie Cloud app, equipment EWEB management, Ruijie Cloud platform, etc. Users can also share the network to third party for network hosting and collaborative management, thereby achieving simpler, easier to use, more secure and convenient enterprise network operation and maintenance.

Ruijie Rg Rap1200p Access Point Sharjah

Ruijie Rg Rap1200p Access Point Sharjah

Features

MU-MIMO Dual-Band 3X Faster

Ruijie Reyee RG-RAP1200P Dubai support 802.11ac Wave2 technology that boosts up your network speed of upto 1267Mbps. MU-MIMO technology enables multiple users to access the internet simultaneously. Beamforming technology ensure connection more direct, faster and more reliable.

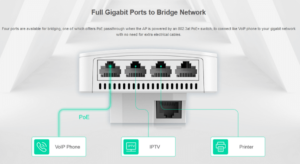

Full Gigabit Ports to Bridge Network

Ruijie Reyee RG-RAP1200P Dubai has four ports for bridging, one of which offers PoE passthrough when the AP is powered by an 802.3at PoE+ switch, to connect like VoIP phone to your gigabit network with no need for extra electrical cables.

Standard PoE Switch

Ruijie Reyee RG-RAP1200P Dubai is conveniently powered by standard PoE Switch. No need to install additional wiring and simply plug in existing ethernet cables. Recommend you powering RAP1200(P) with a Reyee PoE Switch.

Auto Provisioning via Self-Organizing Network Technology

Ruijie Reyee RG-RAP1200P Dubai support Self-Organizing Network technology, which realizes auto-discovery, auto-networking and auto-configuration between gateways, switches, and wireless APs without the need for controllers or Internet access. With the Ruijie Cloud app, users can quickly complete the device deployment.

Ruijie Rg Rap1200p Uae

Ruijie Rg Rap1200p Uae

Specifications

Hardware specifications
Radio Dual-stream dual-band
Protocol Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands
  • 802.11b/g/n : 2.4G ~ 2.4835GHz
  • 802.11a/n/ac : 5G: 5.150~5.350GHz, 5.725~5.850GHz
Antenna PF antenna(2.4G: 2dBi, 5G: 2dBi)
Spatial Streams 2.4G 2x2MIMO 5G 2x2MIMO
Max Throughput
  • 2.4G : up to 400Mbps
  • 5G : up to 867Mbps
  • Access rate per AP : 1.267Gbps
Modulation
  • OFDM : BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
  • DSSS : DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps
  • MIMO-OFDM : BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receive Sensitivity
  • 11b : -91dBm(1Mbps), -88dBm(5Mbps), -85dBm(11Mbps)
  • 11a/g : -89dBm(6Mbps), -80dBm(24Mbps), -76dBm(36Mbps), -71dBm(54Mbps)
  • 11n : -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15
  • 11ac HT20 : -83dBm(MCS0), -57dBm(MCS9)
  • 11ac HT40 : -79dBm(MCS0), -57dBm(MCS9)
  • 11ac HT80 : -76dBm(MCS0), -51dBm(MCS9)
Maximum Transmit Power
  • 5.725~5.850GHz : ≤18dBm (EIRP)
  • 5.150~5.350GHz : ≤18dBm (EIRP)
  • 2.4~2.4835GHz : ≤18dBm (EIRP)
Adjustable Power 1dBm
Dimensions 126mm×86mm×50mm
Weight 0.24kg
Service Ports

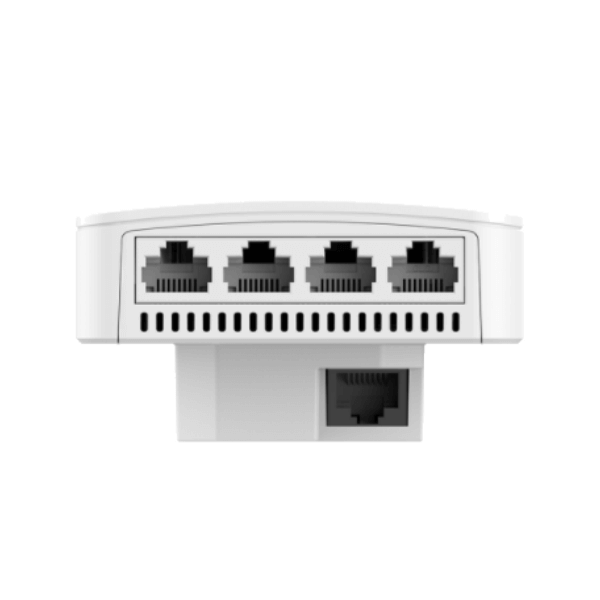

  • Front : 4 10/100/1000Base-T Ethernet ports
  • LAN1 port supports IEEE.802.3af PoE OUT

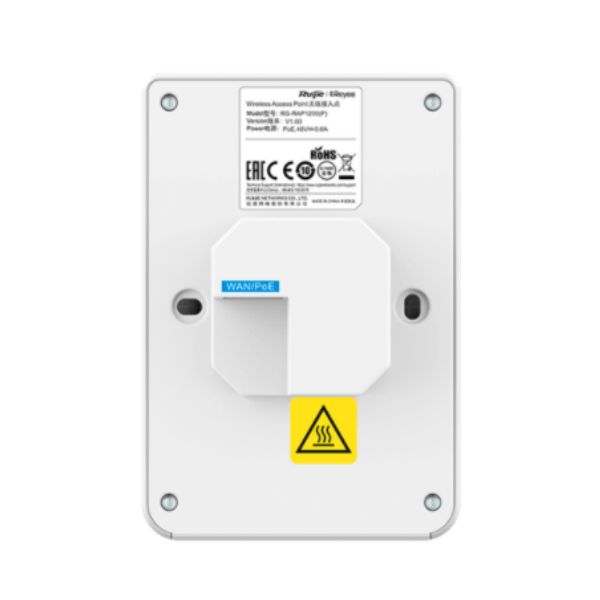

  • Rear : 1 10/100/1000Base-T Ethernet port
Management Port N/A
LED Indicator 1 LED indicator
Power Supply 1dBm
Power Consumption ≤8W
Environment
  • Operating temperature : 0°C~40°C
  • Storage temperature : -40°C~70°C
  • Operating humidity : 0%~100%(non-condensing)
  • Storage humidity : 0%~100%(non-condensing)
Installation Wall plate installation
Safety Standard GB4943, IEC 62368-1
EMC Standard GB9254,EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035
Vibration Standard IEC61373
Radio Standard SRRC certification, EN300 328, EN301 893
MTBF >250000H
Software Features
Operating Mode AP mode and routing mode
WLAN
  • Maximum number of clients : 110
  • Recommended number of clients : 80
  • Up to 8 SSIDs
  • Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
  • SSID-based and radio-based STA limit
  • Support Layer 2 user isolation
Roaming Support Layer 2 and Layer 3 roaming
Security
  • Support PSK authentication
  • Support static blacklist and whitelist
  • Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Routing Support static IP address, DHCP, PPPoE Dial Up
Management and maintenance
  • Support unified networking of all network equipment
  • Support local or remote management with Ruijie Cloud app
  • Support local management with web
  • Support remote management with Ruijie Cloud platform
