Description

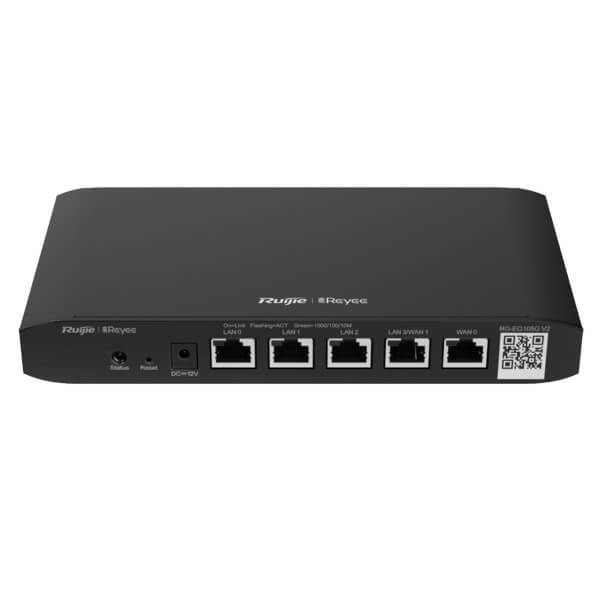

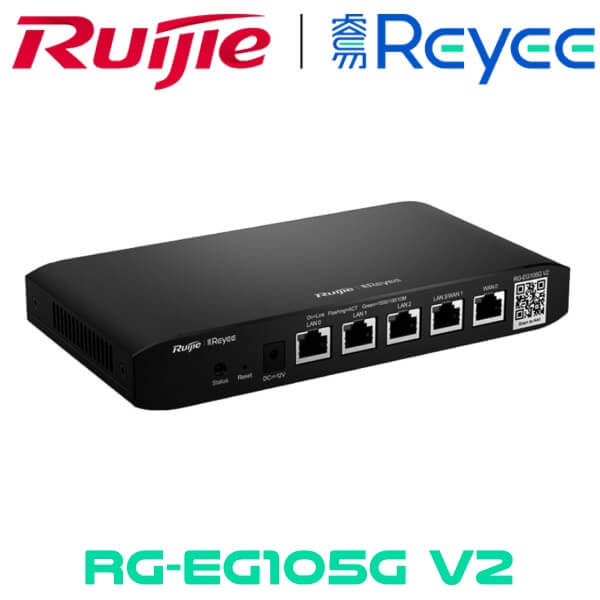

Ruijie RG-EG105GV2 Router Dubai
Designed for use in restaurants, villas, small offices, and hostels, the Ruijie RG-EG105GV2 Dubai is a cloud-managed modern router that comes with a simple user interface that requires no technical expertise. The router is affordable and is equipped with a 500M bandwidth with built-in support for up to 100 terminals.
The built-in network controller of Ruijie RG-EG105GV2 Dubai can centrally manage up to 32 Reyee APs and up to 128 Reyee cloud managed switches. RG-EG series realizes the industry-leading auto-discovery and auto-networking features for gateways, switches and wireless, offering unified configuration, remote management and remote fault diagnosis of the entire network via the Ruijie Cloud app.Â
 When working on AC mode, Ruijie RG-EG105GV2 Dubai can centrally manage up to 300 Reyee APs and up to 128 Reyee cloud managed switches and RG-EG210G-P / RG-EG210G-E can manage up to 500 Reyee APs and up to 128 Reyee cloud managed switches.
Features:
Auto-provisioning via Self-Organizing Network : RG-EG series realizes the industry-leading auto-discovery and auto-networking features for gateways, switches and wireless;
Lifetime free Ruijie Cloud managed : Remote fault alarm, one-click operation and maintenance on Ruijie Cloud App;
Multiple WAN Ports : Up to 2 WAN are supported for RG-EG105G V2/RG-EG105G-P;
Full Gigabit port : Meet the needs of 200M xDSL/fiber access, high-speed wired connectivity;
AC mode : Manage Reyee APs, saving cost;
Smart flow control : Intelligently adjusted the each user bandwidth according to the access bandwidth and the number of users to ensure that each user can enjoy better network experience;
IPSec VPN : EG Provide VPN services for headquarters and branches, up to 8 branches;
Enterprise Security features : IP/MAC/MAC-Filtering. Independent VLAN for guest , isolated from the internal office network
Technical Specs
| Model | RG-EG105G V2 |
| Basic specifications | |
| Fixed ports | 5 10/100/1000M Base-T ports, supporting up to 2 WAN ports (Default: 1 WAN port, 4 LAN ports LAN3 can be switched to WAN1 port) |
| RAM | 128MB |
| Flash | 16MB |
| Maximum number of clients | Up to 100 concurrent clients |
| Recommended bandwidth |
|
| Local power supply | Support 220V AC local power supply |
| Power consumption | <6W |
| Basic network | |
| Network access | PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, acquiring account from existing routers |
| Routing | Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams |
| Security | ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping |
| Other protocols | DHCP Server, DHCP Client, DHCP Option43/138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS |
| Gateway | |
| Application recognition | Built-in self-developed application signature database to identify applications Support free upgrades |
| Flow control | Support custom flow control policies, IP-based automatic bandwidth assignment |
| Traffic audit | Real-time traffic audit, IP traffic visualization |
| Behavior management | Time-based and IP policy-based access control, website filtering |
| VPN | IPsec VPN (8 tunnels) server and client, L2TP, PPTP |
| Authentication | Marketing authentication: WiFiDog (SMS authentication and one-click authentication) Local authentication: password authentication, QR code authentication, voucher authentication |
| Wireless management | |
| Management capacity | In AC mode, the maximum management capacity is 300 In gateway mode, the maximum management capacity is 32 |
| AP management | Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist |
| Roaming | Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track |
| Switch management | |
| Management capacity | Maximum manageable cloud managed switches: 128 |
| Port management | Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search |
| Status display | Port statistics, monitoring information, cable detection, VLAN configuration, MAC list |
| Upgrademanagement | Per-device upgrade, batch upgrade |
| Value added features | |
| Featured solutions | Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution |
| Management | Eweb and Ruijie Cloud |
| Physical | |
| Dimensions | 206.5×108.5×28 (mm) |
| Weight | 0.84kg |
| Temperature |
|
| Humidity |
|
