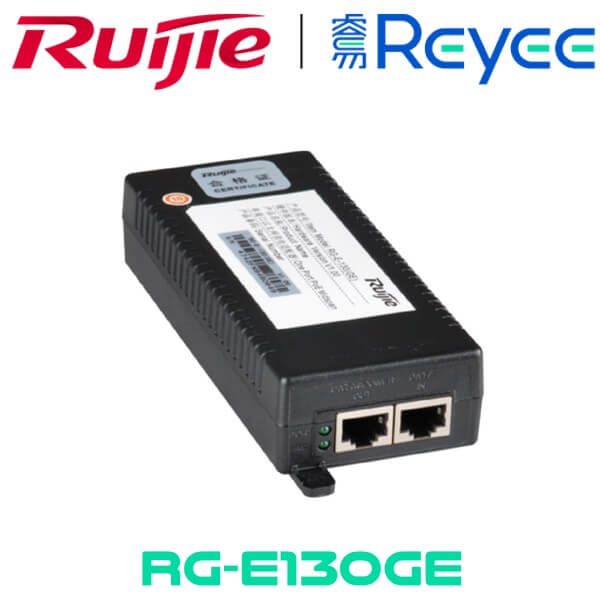

Ruijie RG-E130GE Dubai

The Ruijie RG-E130GE Dubai Power Injector provides excellent short circuit protection and enables intelligent automated PD recognition. The Power Injector detects if the connected device is a PD to eliminate all the possible harms a PSE appliance would cause to a non-PoE device.

Add to quote

Ask for Quote & Get Low Price

Description

Ruijie RG-E130GE Power Injector Dubai

The Ruijie RG-E130GE Dubai Power Injector is designed to power remote management products such as wireless access points, SOHO switches, IP phones, webcams and so on. The Power Injector, compliants with IEEE 802.3at standard, are PSE adapters supporting such products with PoE (Power over Ethernet) power supply. All the RJ45 ports on the Power Injector support auto MDI/MDIX cable recognition and the power injectors sustain power transmission via cable for up to 100m, enabling flexible deployment of powered devices (PDs). The Ruijie RG-E130GE Dubai Power Injector provides excellent short circuit protection and enables intelligent automated PD recognition. The Power Injector detects if the connected device is a PD to eliminate all the possible harms a PSE appliance would cause to a non-PoE device. The modern and exquisite Ruijie Power Injector offers maximized investment cost savings and are an ideal for an extensive range of network settings such as large-scale campus, enterprise, public hotspots, sports stadium, etc.

Features

Up to 30W of Power
IEEE 802.3at Compliant with 2-event Classification
Compatible with all IEEE 802.3af standards
Safe: Low Power Devices Receive Only the Power They Need
Safe and Reliable Power to WLAN Access Points
Automatic Detection and Protection of Non–standard Ethernet Terminals
Supports 10/100/1000Base-T Applications
Compact Design Fits Easily in WLAN Access Point Installations

Technical Specs

Model	RG-E-130 (GE)
Ports	10/100/1000 Mbps Copper port (RJ-45) 10/100/1000 Mbps PoE Copper port (RJ-45)
Power	Output Power Voltage : 53V DC Output Port Power : 30W
Dimensions (W x H x L) (mm)	87.9 x 51.3 x166
Weight	350g
Temperature	Operating Temperature : 0°C to 45°C Storage Temperature : -30°C to 85°C
Humidity	Operating Humidity : 5% to 90% (non-condensing) Storage Humidity : 5% to 95% (non-condensing)
Altitude	Operating Altitude : 0 to 3048m
Regulatory Compliance	IEEE 802.3at, IEEE 802.3af RoHS Compliant, WEEE Compliant, CE
MTBF	>100,000 hours @25°C
Electromagnetic Emission & Immunity Safety Approval	FCC Part 15, EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI, UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1
