Description

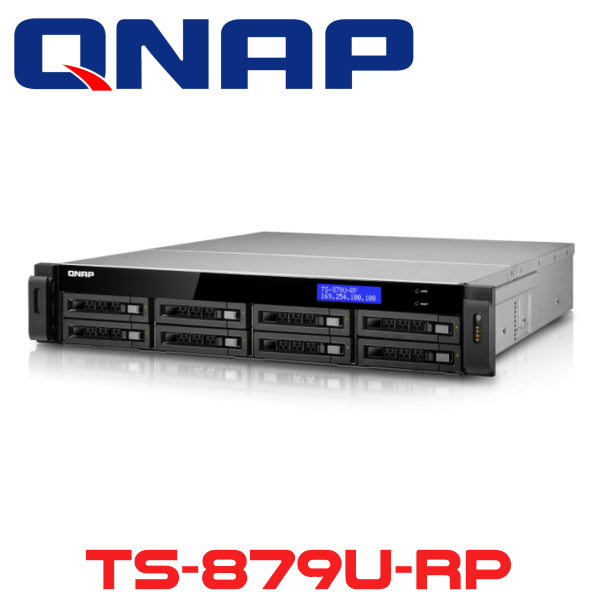

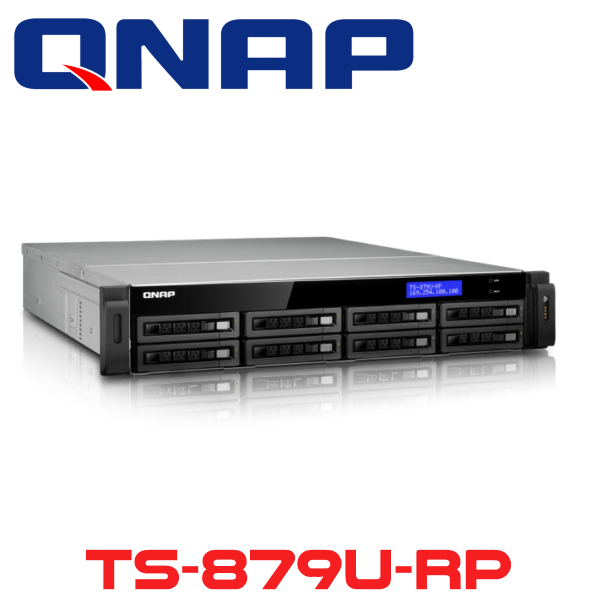

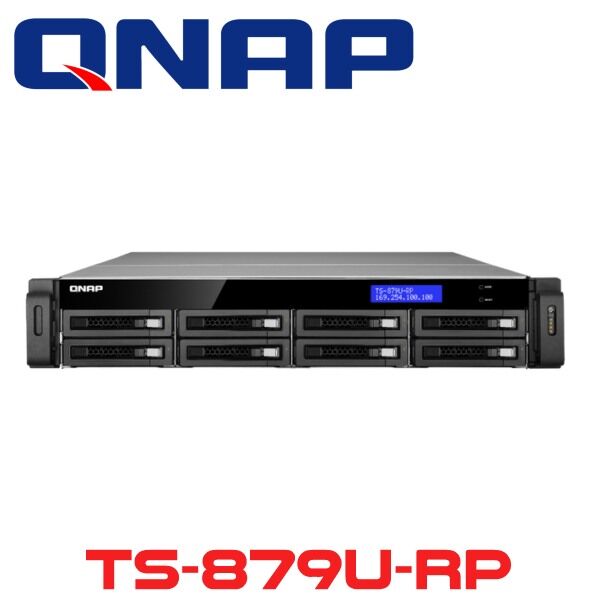

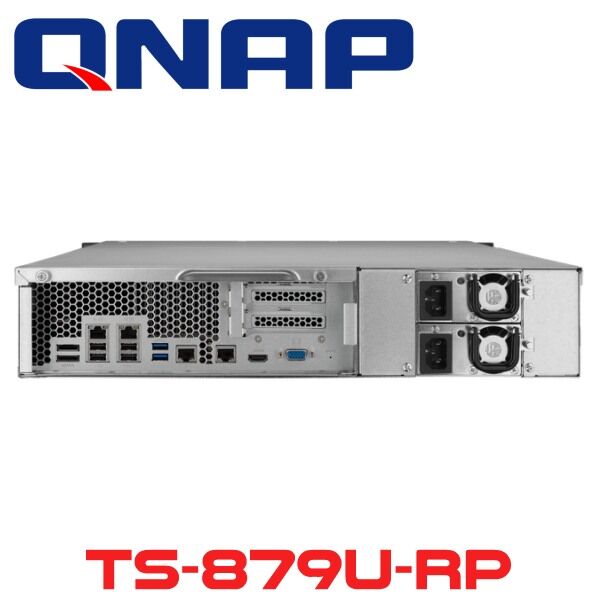

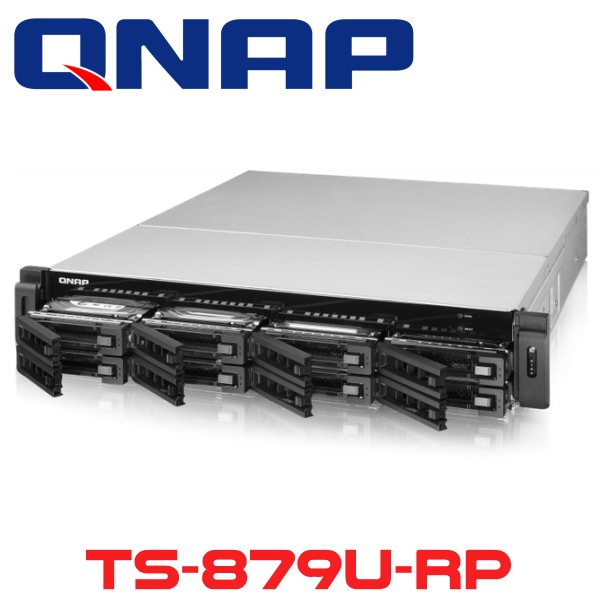

Qnap TS-879U-RP Dubai
The Qnap TS-879U-RP Dubai 8 Bay IP-SAN Storage Solution with 10GbE Bundle is a server that functions as both IP-SAN (iSCSI) and NAS. It is easily employable in various business and enterprise applications, as a backup center and for disaster recovery, file sharing, virtualization and video editing storage.
The Qnap TS-879U-RP Dubai offers a variety of security options to prevent unauthorized access to your data, even in the event that the hard drive or device is stolen. Sophisticated RAID configurations and hot-swap capabilities are present that offer high performance, protection and minimized rebuilding time. The dual OS embedded on the DOM architecture offers extra assurance that the system will boot up.
You can set up local or remote access with the server easily as it does not require IT skills. Easy management tools like instant SMS or Email alert, the hard drive S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) feature and system resource monitor are integrated to keep administrators up-to-date on their NAS at all times.
The Qnap TS-879U-RP Dubai features an Intel Core i3 Processor, 2 GB DDR3 memory, 10 Gigabit network capability and a 6 GBps SATA interface for high performance and fast data transfer rates. It also provides fast data backup via USB 3.0.
The Qnap TS-879U-RP Dubai supports SMB / CIFS, NFS and AFP protocols for file sharing across Windows, Mac and Linux or UNIX networks. It also features Real-Time Remote Replication (RTRR) between the system and a remote QNAP NAS, FTP server or external drive. Qnap TS-879U-RP Dubai supports Amazon S3 and ElephantDrive cloud storage backup. The built-in iSCSI feature offers an affordable IP-SAN (Storage Area Network) alternative for businesses.
The Qnap TS-879U-RP Dubai provides AES 256-bit encryption. It functions as an all-in-one server, boasting file, FTP, backup, web, RADIUS, Syslog and print servers, as well as a surveillance station. It also features Multiple LAN deployment.
Features:
Security
While data may seem insecure when open in a network, the Qnap TS-879U-RP Dubai offers a variety of security options like encrypted access, IP filtering, policy-based automatic IP blocking, and more. Additionally, complete control of the NAS is offered as you have folder access rights, to determine who is able to access the Qnap TS-879U-RP Dubai and what is or is not accessible. The server is loaded with security features that prevent unauthorized data access, including AES-256 volume-based encryption. This feature stops sensitive data from being accessed by unauthorized users and prevents data-breach, even in the event that the hard drive or device is stolen.
Reliability
The Qnap TS-879U-RP Dubai is reliable with built-in safety precautions that protect your data from unforeseen problems. With numerous built-in features to guarantee that nothing interrupts the workflow of your business, the system is a highly efficient asset. The Qnap TS-879U-RP Dubai features sophisticated RAID configurations and hot-swap capabilities that offer high performance, protection and minimized rebuilding time. The dual OS embedded DOM architecture ensures that the system boots up. In the event that 1 of the 2 operating systems fail, the healthy OS will boot up and operate normally while the failed one is repaired. The dual Gigabit LAN ports are also configurable for failover, allowing the NAS server to sustain one network port failure and continue to provide continuous service.
Simple
You can set up local or remote access to the Qnap TS-879U-RP Dubai easily, as it does not require IT skills to do so. All setup processes have been simplified to the point where most of the necessary steps are either automatic or may be completed via an installation wizard. With the user-friendly web GUI you can easily manage the Qnap TS-879U-RP Dubai without extensive knowledge of complicated commands. Simple management tools like instant SMS or Email alert, the hard drive S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) feature and system resource monitor are included to keep you up-to-date on the NAS at all times.
High Performance
The Qnap TS-879U-RP Dubai features an Intel Core i3 Processor, 2.0 GB DDR3 memory, 10 Gigabit network capabilities and a 6 GBps SATA interface. The server satisfies the most demanding requirements in data center or corporate networks. It has an exceptional data transfer rate of over 1,000 Mbps throughput. The 100,000 IOPS* allows intensive business applications and concurrent tasks to be fulfilled with ease. With RAID 5, the server boasts 1,619 Mbps read and 1,319 Mbps write speeds (throughput), as well as 179,064 IOPS read and 156,385 IOPS write speeds, leaving other 1.0 GbE NAS servers in the dust.
QNAP TS-879U-RPÂ Specs
| Hardware | |
| CPU | Dual Core Intel Core i3-2120 Processor 3.3 GHz |
| DRAM | 2 GB DDR3 RAM |
| Flash Memory | 512 MB DOM |
| Hard Drive | 8x 3.5″ (88.89 mm) SATA 6 GBps, SATA 3 GBps hard drive or 2.5″ (63.49 mm) SATA, SSD hard drive* Hard Drive Trays: 8x hot-swappable and lockable |
| LAN Port | 2x Gigabit RJ-45 Ethernet ports Optional dual-port 10 GbE and 1 GbE network cards are supported |
| USB | 2x USB 3.0 ports (rear) 4x USB 2.0 ports (rear) Supports USB printer, pen drive, USB hub, USB UPS and many more |
| eSATA | 2 (rear) |
| LED Indicators | Status, 10 GbE, LAN, eSATA, hard drives |
| Buttons | System: Power button and reset button |
| LCD Panel | Mono-LCD display with backlight Enter and select buttons for configuration |
| Expansion Slot | 2x: For network or storage expansion |
| VGA | Reserved for system maintenance |
| Fan | 3x 2.4″ (6.0 cm) smart cooling fan |
| Alarm | Buzzer for system warning |
| Sound Level | With 8x 1 TB hard drives installed: Standby: 54.57 dB In operation: 54.6 dB |
| Power Consumption | With 8x 1 TB hard drives installed: Sleep mode: 68 W In Operation: 130 W |
| Power Supply | Input: 100 – 240 V AC, 47 – 63 Hz Output: 300 W |
| Form Factor | 2U, rackmount** |
| Software | |
| Operating System | Embedded Linux |
| Supported Operating System | Windows XP, Vista, Windows 7 (32/64-bit), Windows Server 2003/2008 R2 Apple Mac OS X Linux and UNIX |
| Supported Web Browsers | Microsoft Internet Explorer 8, 9 Mozilla Firefox 8, 9, 10 Apple Safari 4, 5 Google Chrome |
| Multilingual Support | Chinese (Traditional and Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
| File System | Internal Hard Drive: EXT3, EXT4 External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+ |
| Networking | TCP/IP (IPv4 and IPv6: Dual stack) Multiple Gigabit NICs with jumbo frame -Failover -Multi-IP settings -Port trunking/NIC teaming (Modes: Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb) Service binding based on network interfaces Virtual LAN (VLAN) DHCP client, DHCP server Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC UPnP and bonjour discovery USB Wi-Fi adapter support |
| Backup Solution | Real-Time Remote Replication (RTRR) -Works as both RTRR server and client with bandwidth control -Real-time and scheduled backup -Encryption, compression, file filter and transfer rate limitation Block-Level Remote Replication -Works as both Rsync Server and client with bandwidth control -Encrypted replication between QNAP NAS servers One touch backup (import/export) via USB Desktop backup by QNAP NetBak replicator for Windows Apple Time Machine support with backup management Data backup to multiple external storage devices Data backup to Cloud Storage (Amazon S3, ElephantDrive and Symform) |
| Security | IP Filter and policy-based automatic IP blocking Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), encrypted remote replication between QNAP NAS servers (Rsync over SSH) CIFS host access control for shared folders Antivirus protection FIPS 140-2 validated AES 256-bit volume-based data encryption* AES 256-bit external drive encryption* Importable SSL certificate Instant alert via email, SMS, instant messaging (Windows Live Messenger) and buzzer |
| Disk Management | Single Disk, JBOD, RAID 0, 1, 5, 5 + Hot-Spare, 6, 6 + Hot-Spare, 10, 10 + Hot-Spare Online RAID capacity expansion and online raid level migration Bad block scan and hard drive S.M.A.R.T. Global hot-spare drive RAID recovery Bitmap support |
| iSCSI (IP SAN) | iSCSI target -Multi-LUNs per target -Up to 256 targets/LUNs combined -Supports LUN mapping and masking -Online LUN capacity expansion -Supports SPC-3 persistent reservation -Supports MPIO and MC/S iSCSI LUN backup, one-time snapshot and restore iSCSI connection and management by QNAP finder (Windows) Virtual disk drive (via iSCSI initiator) -Stack chaining master -Max. no. of virtual disk drives: 8 |
| Server Virtualization and Clustering | Supports VMware vSphere Supports Citrix XenServer Supports Windows Server 2008 R2 Hyper-V and failover clustering |
| Power Management | Wake on LAN Internal hard drive standby mode Scheduled power on/off (max. 15 Settings) Automatic power on after power recovery USB and network UPS support with SNMP management |
| Access Rights Management | Max. No. of Users: 4,096 Max. No. of User Groups: 512 Max. No. of Network Shares: 512 Batch users creation Import/export users User quota management Subfolder permissions support for CIFS/SMB, AFP, FTP and web file manager |
| Domain Authentication Integration | Microsoft Active Directory (AD) LDAP server LDAP client Domain users login via CIFS/SMB, AFP, FTP and web file manager |
| MyCloudNAS Service | Private Cloud Storage and sharing Free host name registration (DDNS) Auto router configuration (via UPnP) MyCloudNAS connect for easy connection (Windows utility) |
| Storage Plug & Play | Windows Software: QNAP finder Create and map shared folders Create and connect to iSCSI target/LUN |
| Web Administration | AJAX-based user interface Smart fan control Dynamic DNS (DDNS) SNMP (v2 and v3) Resource monitor Network recycle bin for file deletion via CIFS/SMB and AFP Comprehensive logs (Events and connection) Syslog client Firmware live update System settings backup and restore Restore to factory default |
| Powerful All-in-one server | |
| File Server | File sharing across Windows, Mac and Linux or UNIX Shared folder aggregation (CIFS/SMB) Web file manager -Supports ISO mounting -Direct file viewing via Google doc -Create and send download links for public file sharing with expiration time and password protection |
| FTP Server | FTP over SSL/TLS (explicit) Max. No. of Concurrent Connections: 256 FXP supported Passive FTP port range control FTP bandwidth and connection control Unicode support |
| Backup Server | Remote Replication server (over Rsync) Real-Time Remote Replication to another QNAP NAS or FTP server Apple Time Machine support Windows Client Backup Application: QNAP NetBak replicator Third Party Backup Software Support: Acronis True Image, CA BrightStor, ARCserve, Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper and more |
| Web Server | HTTP/HTTPS connections Supports WebDAV connection Support virtual host (Max.: 32) Importable SSL certificate |
| Database Server | Built-in MySQL server (v5.1.36) Web-based management via phpMyAdmin (QPKG) |
| Print Server | Max. Number of Printers: 3 Supports Internet printing protocol -Print job display and management -IP- and domain name based privilege control Supports Apple bonjour printing |
| Syslog Server | Centralized log monitoring and archiving Immediate email alerts Supports log filtering |
| RADIUS Server | Centralized account management and authentication for network access Supports 802.1x security authentication TFTP server with PXE booting (read-only) |
| VPN Server | Secure Remote Access: PPTP and OpenVPN services Remote access to other resources on local network Max. No. of Clients: 30 |
| iTunes Server | Audio and video sharing (AIF, M4A, M4B, M4V, MOV, MP1, MP2, MP3, MP4, MPEG, MPG, WAV) Smart playlist for iTunes client (Windows and Mac OS) |
| UPnP Media Server | Built-in TwonkyMedia server Real-time and background photo transcoding Supports UPnP media player such as PlayStation 3 and Xbox 360 Supported format (The actual playback capabilities may vary depending on the UPnP client.) -Audio: MP3, MP4, M4A, M4A (ALAC), M4B, 3GP, APL, AC3, M1V, M4V, MOV, AAC, AMR, AWB, WAV, PCM, LPCM, MP1, MP2, AIF, AIFF, AIFC, SND, WMA, OGG, FLAC -Photo: JPG, JPE, JPEG, TIFF, TIF, GIF, PNG, BMP -Video: WMV, ASF, VDR, AVI, XVID, DIVX, FLV, MPG, MPE, MTS, M2TS, M2T, MPEG, SPTS, M2P, M2V, MP2T, MP2P, MPG2, DVR-MS, VOB -Playlist: M3U, M3U8, WPL, PLS |
| Multimedia Station | Supports photo, audio and video Image slideshow and rotation Automatic and scheduled thumbnail generation for easy browsing Display Photo Details from EXIF: Date, exposure time, aperture and more Display Audio Details from ID3 Tag: Album cover, title, artist, album and more Access authority management Multimedia (video and audio) streaming Supports cooliris Supports web publishing (Facebook, MySpace, MSN Live, Twitter, Plurk and Blogger) Share photos by email Supported Formats: Photo – JPG/JPEG, GIF, PNG Audio – MP3 Video -Playback: FLV, MPEG-4 Video (H.264 + AAC) -Transcode: AVI, M4V, MPG/MPEG, RM/RMVB, WMV QNAP Exclusive iPhone and Android App: QMobile |
| Photo Station | Supported File Formats: -Photo: JPG/JPEG, GIF, PNG, BMP -Video: FLV, MPEG-4 Video (H.264 + AAC) Image slideshow with background music Photo publishing to social websites (Facebook, MySpace, Twitter, Plurk and Blogger) Photo sharing by email |
| Music Station | Supported Audio Formats: -MP3, MP4, OGG, WAV, AIFF, AU, FLAC, M4A, APE, AAC Local playback with USB speaker or sound card Browse other UPnP media servers on local network Internet radio (MP3) Music alarm (up to 8 Alarms) Playback control by QNAP Mobile App: QMobile music remote |
| Download Station | PC-less BT, FTP, HTTP download (up to 500 tasks) BT Download -Supports TCP/UDP tracker protocol -Scheduled download -Configurable port range -Bandwidth control -UPnP NAT port forwarding -RSS subscription and download (broadcatching) -Selectable download files HTTP/ FTP Download -Configurable saving directory -Bulk download with wildcard settings -RapidShare download support QNAP Download Management Software: QGet -For both Windows and Mac OS -Manage the download tasks of multiple QNAP NAS remotely over LAN or WAN |
| Surveillance Station | Supports 4 IP cameras (sold separately) for network surveillance Supports 1 Webcam via QPKG Add-on: QUSB Cam |
| Antivirus | Protection against the latest known viruses, Trojans and other threats Free virus databases update on manual or scheduled basis Multiple scan tasks (max: 64, concurrent: 5) with custom folder selection and scheduled Scanning Email notification upon task completion or virus detection Quarantines or deletes infected files |
| QPKG Center | Expands application services by easy online installation A wide variety of official and community QPKG* add-ons Business -eyeOS -GLPI -Squid proxy server -Vtiger CRM CMS -Gallery -Joomla -WordPress -Xoops Communications -Asterisk -XMail -Xeams Download -MLDonkey -NZBGet -pyLoad -SABnzbdplus -Transmission Entertainment -Ice Station -Plex media server -PS3 media server -Squeezebox server Utilities -AjaXplorer -iStat -Optware IPKG -phpMyAdmin -Piwik Miscellaneous -Java runtime environment -Mono -Python -QUSB Cam -Tomcat and more |
| General | |
| Temperature | 32 to 104°F (0 to 40°C) |
| Relative Humidity | 0 to 90% |
| Dimensions | 3.46 x 17.28 x 20.47″ (88 x 439 x 520 mm) |
| Weight | 27.60 lb (12.52 kg) |
