Description

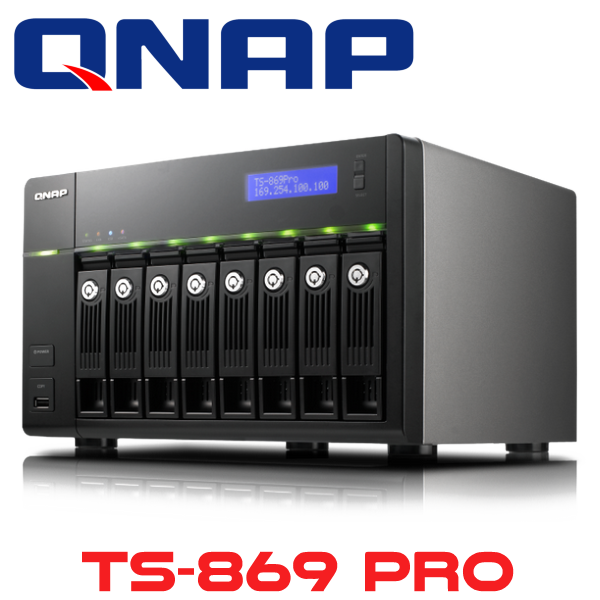

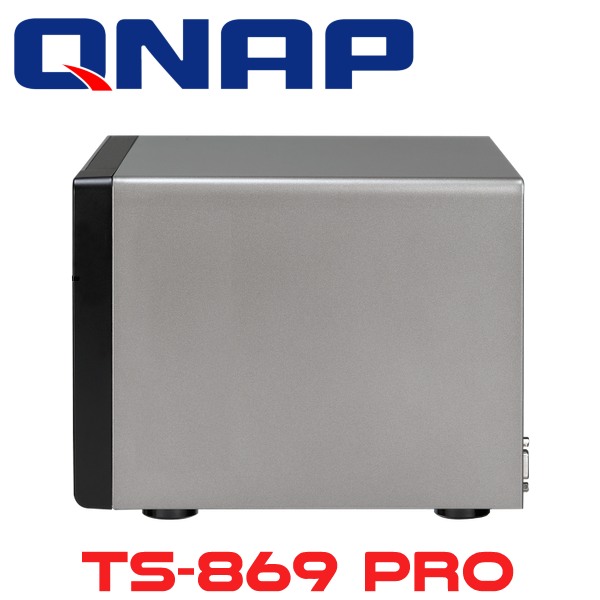

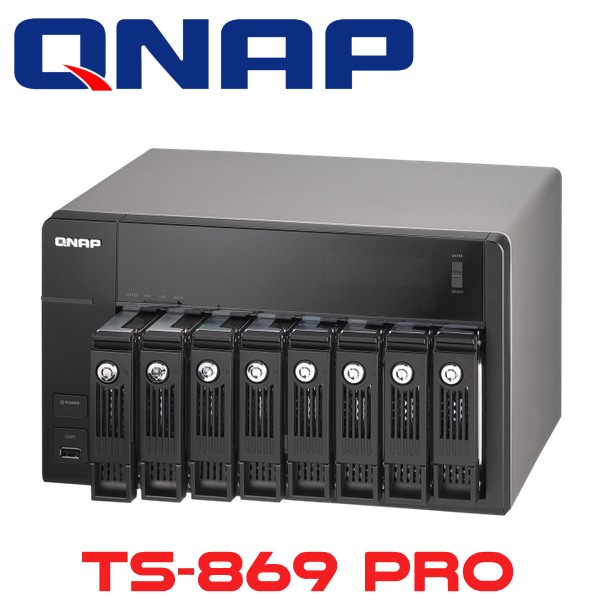

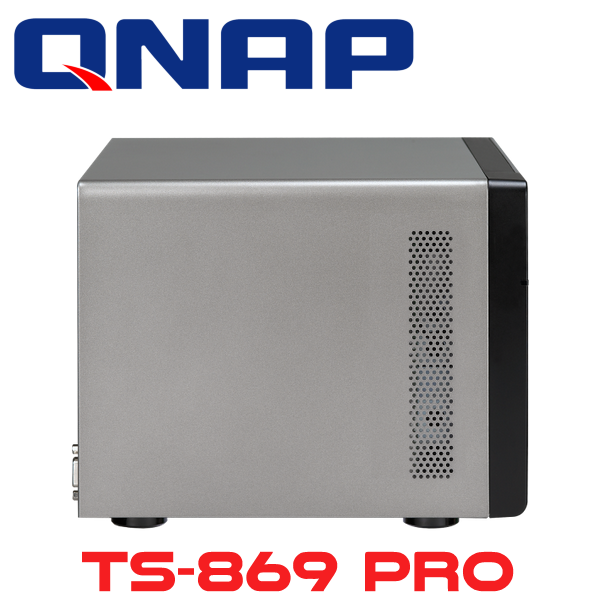

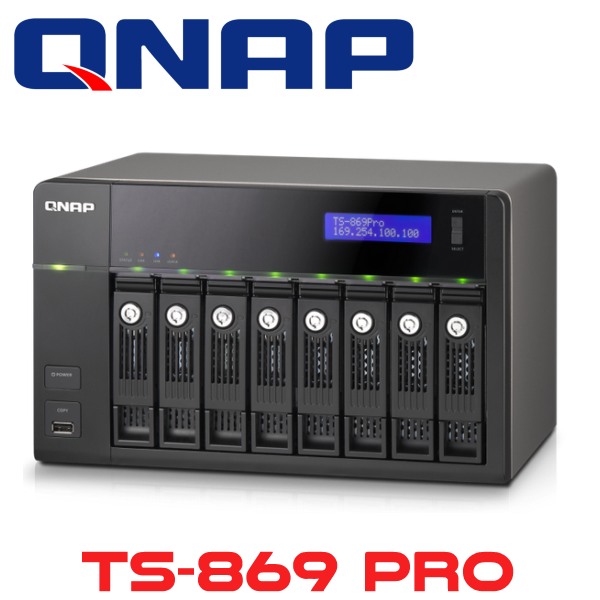

Qnap TS-869 Pro Dubai
The Qnap TS-869 Pro Dubai Turbo NAS Server is an 8 bay, all-in-one NAS server with exceptional performance that can meet the storage requirements of modern SMB IT environments. It features a secure cross-platform file sharing for Windows, Mac and Linux/UNIX users. The NAS server also has an iSCSI or IP-SAN storage combo solution and a number of versatile, value-added business applications. The NAS server is an ideal shared storage solution for virtualized and clustered environments. It is VMware Ready and Citrix Ready certified. This has also proven compatible with Microsoft Hyper-V environments.
Features:
Cross-platform Sharing with Antivirus
The Qnap TS-869 Pro Dubai supports SMB/CIFS, NFS and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. Your accounts and shared folders can be created via a user-friendly web based interface without IT expertise. The integrated antivirus solution for the Turbo NAS ensures business stability. It offers detection against the latest viruses, malware, worms and Trojan horses.
Windows Active Directory (AD) and LDAP Directory Service
The Windows AD and Lightweight Directory Access Protocol (LDAP) is a directory service feature that enables you to retrieve user accounts from Windows AD or LDAP based directory server to the Qnap TS-869 Pro Dubai. This reduces time and effort in setting up a new account. You can use the same login name and password to access the Turbo NAS.
Shared Folder Aggregation
You can access the shared folders of other servers on Microsoft Networking through the “portal folder” on the Qnap TS-869 Pro Dubai. This saves the time and effort in logging in multiple servers one by one.
ISO File Archiving and Sharing
With the Qnap TS-869 Pro Dubai you can mount ISO images of CD and DVD discs as network shares for data archiving, storage and sharing. This saves the space for storing the physical discs and reduces the risk of data loss caused by disc wear and tear. It also enhances the efficiency of data sharing on business network.
Advanced Folder Permissions
You can configure folder/subfolder access to the Qnap TS-869 Pro Dubai with advanced folder permissions. With this feature enabled, you can manage the folder permissions from Microsoft Windows or the web-based management interface of the Turbo NAS easily.
Secure Measures for Data Storage and Access
Policy based Unauthorized IP Blocking:
You can allow, deny or auto block specified IP address or network domain which attempt to connect to the Turbo NAS via SSH, Telnet, HTTP(S), FTP, Samba or AFP.
You can allow, deny or auto block specified IP address or network domain which attempt to connect to the Turbo NAS via SSH, Telnet, HTTP(S), FTP, Samba or AFP.
TS-869 Pro Turbo NAS Server Specs
| Hardware | |
| CPU | Intel Atom 2.13 GHz Dual-core Processor |
| DRAM | 1 GB RAM (Expandable RAM, up to 3 GB) |
| Flash Memory | 512 MB DOM |
| Hard Disk Drive | 2.5″ (63.49 mm) or 3.5″ (88.89 mm) SATA x 8 |
| Hard Disk Tray | 8 x Hot-swappable and lockable tray |
| LAN Port | 2 x Gigabit RJ-45 Ethernet port |
| LED Indicators | Status, LAN, USB, eSATA, Power, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5, HDD 6, HDD 7, HDD 8 |
| USB | 2x USB 3.0 port (Back: 2) 5x USB 2.0 port (Front: 1; Back: 4) Supports USB printer, pen drive, USB hub and USB UPS etc. |
| eSATA | 2 x eSATA ports (Back) |
| Performance | Reading: 221.8 Mbps Writing: 220.8 Mbps |
| Buttons | Power button, USB One-Touch-Backup Button, Reset button |
| LCD Panel | Mono LCD display with backlight Enter button, Select button for configuration |
| Supply Type | System warning |
| Form Factor | Tower |
| Sound Level | Without HDD installed: 40.0 dB Stand by: 40.4 dB In operation: 40.8 dB (with 8 x 750 GB HDD installed) |
| Power Consumption | Sleep mode: 30 W In Operation: 59 W Power-off (in WOL mode): 1 W (with 8 x 1.5 TB HDD installed) |
| Power Supply | Input: 100-240 V AC, 50-60 Hz Output: 350 W |
| Secure Design | K-lock security slot for theft prevention |
| Expansion Slot | 1 (for network or storage expansion) |
| VGA | Reserved VGA interface for maintenance |
| Fan | Two 4.72″ (12 cm), 12 V DC cooling fan |
| General | |
| Temperature | 32 to 104ËšF (0 to 40ËšC) |
| Humidity | 0-95% R.H. |
| Dimensions | 7.29 x 11.74 x 9.26″ (185.2 x 298.2 x 235.4 mm) |
| Weight | Net weight: 7.29 kg (16.08 lb) Gross weight: 8.59 kg (18.94 lb) |
| Software | |
| Operating System | •Embedded Linux |
| Supported Operating System | •Microsoft Windows 2000, XP, Vista (32 or 64 bit),7 (32 or 64 bit), Server 2003 or 2008 •Apple Mac OS X •Linux and Unix |
| Supported Web Browsers | •Internet Explorer 7, 8 or later •Firefox 3 or later •Safari 3, 4 or later •Google Chrome |
| Multilingual Support | •Chinese (Traditional and Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Russian, Spanish, Swedish, Turkish |
| File System | •Internal HDD: EXT3, EXT4 •External HDD: EXT3, EXT4, NTFS, FAT32, HFS+ |
| Networking | •TCP/IP (IPv4 and IPv6: Dual Stack) •Dual Gigabit LAN with Jumbo Frame •Multi-IP settings, Port Trunking or NIC Teaming (Modes: Balance-rr, Active backup, Balance XOR, Broadcast, IEEE 802.3ad or Link Aggregation, Balance-tlb and Balance-alb) •DHCP client, DHCP server •Protocols: CIFS or SMB, AFP (3.1), NFS, FTP, HTTP, HTTPS, Telnet, SSH, iSCSIand SNMP. •Network Service Discovery(UPnP, Bonjour) •Virtual LAN support •USB Wi-Fi 802.11n adapter support (optional purchase) |
| Network File Sharing | •CIFS/SMB (Plus DFS Support) •AFP •NFS •FTP •WebDAV |
| Backup Solution | •Real-time Remote Replication (RTRR) oWorks as Both RTRR server andclient oSupports Real-time andscheduled backup oSupports encryption, compression and file filter •USB One Touch Backup (Import or export) •Apple Time Machine Support with backup management •Block-level Remote Replication oWork as both Rsync server &client oSupports encrypted replication between QNAP NAS servers •Back up to external storage device •Back up to Cloud Storage (Amazon S3 and ElephantDrive) |
| Security | •IP filter andpolicybased automatic IP blocking •Network Access Protection with auto-blocking •Encrypted access: HTTPS, FTP with SSL or TLS (explicit), SSH or SFTP (admin only), Encrypted Remote Replication (Rsync over SSH) •CIFS host access control for shared folders •AES 256-bit volume-based encryption •Importable SSL certificate •Instant alert via email, SMS and LCD |
| Disk Management | •Single disk, JBOD, RAID 0 / 1 / 5 /10/ 5+Hot spare / 6 /10 •Online RAID capacity expansion &online RAID level migration •Bad Block Scan & HDD S.M.A.R.T •Global Spare Drive •AES 256-bit volume-based encryption •RAID recovery •Bitmap support •Supports ISO mounting (via web file manager) |
| iSCSI (IP SAN) | •iSCSI Target oMulti-LUNs per target oUp to 256 LUNs oSupports LUN mapping & masking oSupports SPC-3 persistent reservation oSupports MPIO & MC/S •Virtual Disk Drive (via iSCSI Initiator) oStack Chaining Master oMax. virtual disk drives: 8 oStorage plug and play client software to connect to iSCSI Target from PC |
| Server Virtualization & Clustering | •Supports VMware vSphere (ESX or ESXi 4.x) •Supports Citrix XenServer (5.6) •Supports Windows server 2008 Hyper-V & failover clustering |
| Power Management | •Wake on LAN •Scheduled power on/off (Max 15 settings) •Automatic power on after power recovery |
| Access Rights Management | •Max user accounts: 4,096 •Max groups: 512 •Maxshare folder: 512 •Batch creating users •Import or export users •User quota management •Subfolder permissions support |
| Windows AD Support | •Domain users login via CIFS/SMB, AFP, FTP and web file manager •Supports NTLM v2 authentication |
| Web Administration | •AJAX-based user interface •HTTP or HTTPS connections •Alert notification (Email & SMS) •Smart fan control •DDNS & MyCloudNAS remote access •SNMP (v2 & v3) •UPS support with SNMP management (USB) •Supports network UPS •Resource monitor •Network recycle bin for CIFS or SMB and AFP •Comprehensive logs (Events andconnection) •Real-time online user list •Syslog client •Firmware update with live update notification •Backup and restore system settings •Restore to factory default |
| Applications | •Web file manager •Multimedia station •Download station •Surveillance station •Music station •Photo station •iTunes server •UPnP media server •Apache web server •MySQL server •VPN server •LDAP server |
| QMobile App | •QMobile for iPhone, iPad, iPod touch, Android devices •Third party UPnP media player |
| QPKG | •Web applications oJoomla! ophpMyAdmin oWordPress oAjaXplorer ovtigerCRM oGLPI oMagento •P2P Applications oMLDonkey (eMule) oSABnzbd+ oNZBGet oTransmission •Server Applications oSqueezebox server oTomcat oAsterisk oXDove (Mail server) oOpenLDAP oeyeOS •Media Server oPS3 media server oIceStation •Miscellaneous oOptware IPKG oPython oJava Runtime Environment oMono oiStat |
